The Air N Arc® 300 system, provides more efficient use of your truck bed and reduces cost by combining five power sources: Rotary screw on-demand air compressor, 7 kW generator, 300 AMP welder, battery booster and battery charger – into one single unit. Designed as a true two generator system, the Air N Arc® 300 series allows multi-functioning such as welding and generator for lights for night time service.
Air N Arc® 300 ALL-IN-ONE Power System®
Increase Your Efficiency, Increase Your Productivity, Increase Your Profitability, With One SystemAir Compressor | Generator | Welder | Battery Booster | Battery Charger Available in Gas or Diesel
| Engine: | Gas: 26.5 HP EFI Kohler®, Air Cooled |
| Compressor Type: | Rotary screw |
| CFM Rating: | 40 CFM |
| Max Pressure: | 175 PSI |
| Generator Wattage: | 7 kW peak – 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets |
| Welder Amperage: | High frequency DC welding, 270 AMPs at 100% duty cycle CC: 40-300 AMPs operating range, CV: 15-30 Volts |
| Battery Charger/Booster: | 300 AMPs 12V/24V Boost, 50 AMP 12V Charge |
| Drive System: | Belt Driven |
| Fuel Capacity (Gal.): | 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis) |
Gas
Dimensions (In.)
Foot Print – 47.1L x 21.5W x 30.9H
with fittings – 47.1 L x 24.6 W x 30.9 H*
Dry weight (Lbs.) – 700 Lbs.
**Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.

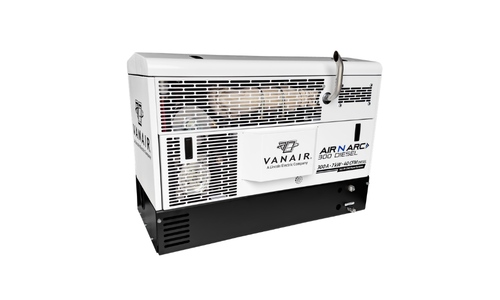

| Engine: | Diesel: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant) |
| Compressor Type: | Rotary screw |
| CFM Rating: | 40 CFM |
| Max Pressure: | 175 PSI |
| Generator Wattage: | 7 kW peak – 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets |
| Welder Amperage: | High frequency DC welding, 270 AMPs at 100% duty cycle CC: 40-300 AMPs operating range, CV: 15-30 Volts |
| Battery Charger/Booster: | 300 AMPs 12V/24V Boost, 50 AMP 12V Charge |
| Drive System: | Belt Driven |
| Fuel Capacity (Gal.): | 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis) |
Diesel
Dimensions –
Foot Print (In.)–47.5L x 21.0W x 33.4H*
with fittings (In.)–48.0L x 25.0Wx33.4H*
Dry weight (Lbs.) – 870 Lbs.
**Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.

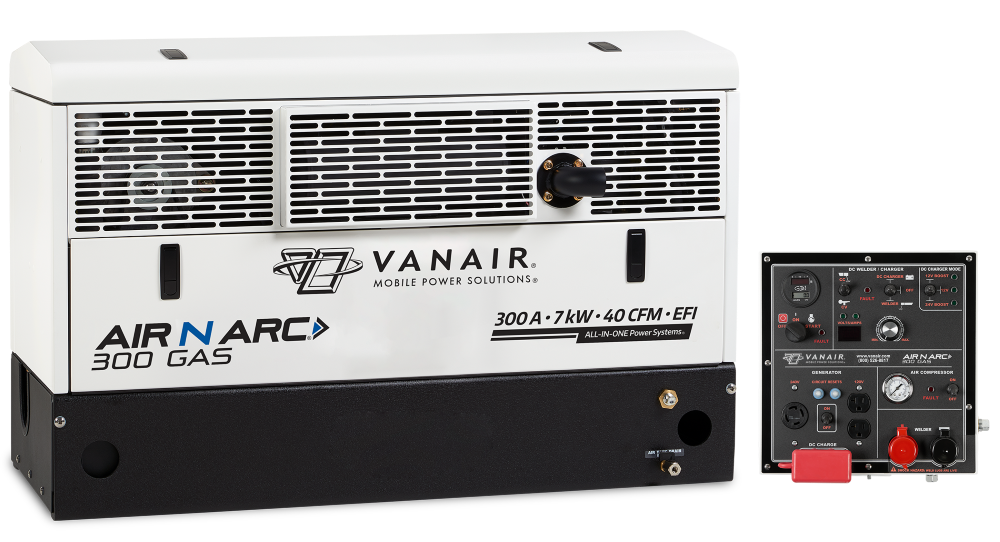

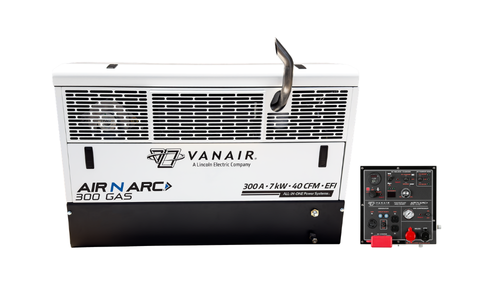

Air N Arc® 300 Gas
- 050518 — Air N Arc® 300 Gas – 26.5 HP EFI Gas Engine, Remote Control Panel, 4-Gallon Air Storage and 12-Gallon Fuel Storage
- 050580 — Air N Arc® 300 Gas – 26.5 HP EFI Gas Engine, Remote Control Panel, 4-Gallon Air Storage, No Fuel Storage, and 12V Fuel Pump

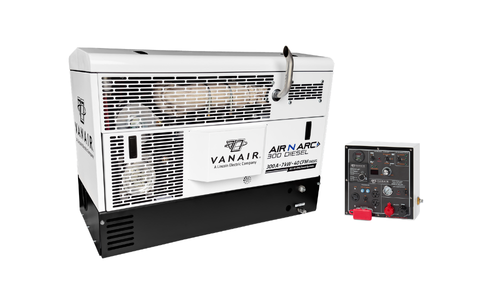

Air N Arc® 300 Diesel
- 050590 — Air N Arc® 300 Diesel – 25 HP Engine, 4-Gallon Air Storage and 12-Gallon Fuel Storage
- 050591 — Air N Arc® 300 Diesel – 25 HP Engine, 4-Gallon Air Storage, No Fuel Storage and 12V Fuel Pump
- True Two Generator System for Safe Multi-Function of Welder and Electric tools
- All the benefits of a High Frequency Welder offering Excellent Weld Characteristics
- 40 CFM Rotary Screw Compressor for Air on Demand and Extended Life of Unit
- Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
- Remote Mount Control Panel for the Ultimate in User Convenience
- Fuel System can be Integrated with the Chassis
- Integrated Lift Hook and Battery Tray
- Designed for Easy Maintenance
- Small Footprint – Will Fit on Side Pack or Behind Cab
- Powder Coated Sheet Metal
- Galvannealed Steel
AIR COMPRESSOR
- Encapsulated Rotary Screw Compressor for Air-On-Demand
- 40 CFM @ 100 PSI
- 175 Max PSI
WELDER
- High Frequency DC Welding
- 270 AMPs at 100% Duty Cycle
- CC Range 40 – 300 AMPs Operating Range
- CV Range 15 – 30 Volts
- Independent DC Welder
- Auto Speed Control
- CV MIG Capabilities
GENERATOR
- 7 kW Peak
- 6.8 kW Continuous @ 60 Hz (Available In 5.7 kW Continuous Watts @ 50 Hz)
- Independent AC Generator
- Brushless
- Smooth Wave for Minimal Distortion
- Two-120V Outlets and One-240V Outlet
BATTERY BOOST/CHARGE
- 300 AMP 12V/24V Boost
- 50 AMP 12V Charge
COLD WEATHER PACKAGE
- Optional Integrated 12V Weather Package on Diesel Only
- Optional 12V Heaters for Gas Model
REMOTE CONTROL PANEL (HARNESS NOT INCLUDED)
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
- Filter/Lubricator/Regulator (FLR)
- Hose Reels and Fittings
- OSHA Safety Valve (Velocity Fuse)
- Post Drivers
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
ENGINE
- 26.5 HP EFI Kohler, Air Cooled or 25 HP Kubota®, Liquid Cooled
- Electric Start
- 12 Gal. Integral Tank
- Provides Power for Emergency and Safety Lights with Truck Engine Turned Off
- Tier 4 Emission Compliant
- Glow Plugs
- Welding Cables – 25’, 50’
- Welding Helmet with Auto Darkening Lens
- Battery Booster Cables
- Cable Extension Segment
- Fuel Tank – Slimline 11 Gallon
- Remote Air Tank – 30 Gallon
- Remote Condensation Drain
- Maintenance Kits
- Welding Rods
- Cold Weather Kits
- GFCI Kit Available
| Part Description | Part Number |
|---|---|
| KOHLER® ECH749 Every 100 Hour or Annual Engine Maintenance Kit | KIT1119 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| KOHLER® Air Filter | 262722 |
| KOHLER® Oil Filter | 262723 |
| KOHLER® Precleaner | 263675 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Spin-On Air/Oil Separator (For S/N’s 30-15XXX and Older) | 264470-MH |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| KOHLER® Inline Fuel Filter | RC81465 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallon | 032708 |
| Optional Weld Cable Set 25′ | 033020-25 |
| Optional Weld Cabe Set 50′ | 033020-50 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Remote Mount Control Panel Connection Harness – 6ft | MA269937-06 |
| Remote Mount Control Panel Connection Harness – 10ft | MA269937-10 |
| Remote Mount Control Panel Connection Harness – 18ft | MA269937-18 |
| Remote Mount Control Panel Connection Harness – 22ft | MA269937-22 |
| Remote Mount Control Panel Connection Harness – 26ft | MA269937-26 |
| Battery Boost Cables, 2 Gauge With Quick Connect Ends, 25ft | MA269938 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Extensions Segment for Boost Cable, 2 Gauge Cable with Connectors | MA270012-25 |
| Extension Segment for Boost Cable, 2 Gauge Cable with Connectors, 50ft | MA270012-50 |
| Fuel Tank Assembly, Slimline 11 Gallon, Fuel Gauge Sensor | OA032767 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
| Part Description | Part Number |
|---|---|
| KUBOTA™ D902 Every 200 Hour or Annual Engine Maintenance Kit | KIT1154-01 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| KUBOTA™ Inline Fuel Filter | 280724 |
| KUBOTA® Spin-On Fuel Filter | EN273303-01 |
| KUBOTA® Inline Fuel Filter | RC276268 |
| KUBOTA® Fuel Filter Element Only | RC77662 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| Vanair® Compressor/Engine Air Filter Element Only | 276688-002 |
| KUBOTA® Oil Filter | EN38480 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallons | 032708 |
| Optional Weld Cable Set 25′ | 033020-25 |
| Optional Weld Cabe Set 50′ | 033020-50 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Remote Mount Control Panel Connection Harness – 6ft | MA269937-06 |
| Remote Mount Control Panel Connection Harness – 10ft | MA269937-10 |
| Remote Mount Control Panel Connection Harness – 18ft | MA269937-18 |
| Remote Mount Control Panel Connection Harness – 22ft | MA269937-22 |
| Remote Mount Control Panel Connection Harness – 26ft | MA269937-26 |
| Battery Boost Cables, 2 Gauge With Quick Connect Ends, 25ft | MA269938 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Extensions Segment for Boost Cable, 2 Gauge Cable with Connectors | MA270012-25 |
| Extension Segment for Boost Cable, 2 Gauge Cable with Connectors, 50ft | MA270012-50 |
| Fuel Tank Assembly, Diesel, Slimline 11 Gallon, Fuel Gauge Sender | OA032930 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
