The DR 900 delivers the power, performance, and durability that you need on the job site! This drill module features: 900 CFM and 150 PSI of air power (25.6 m3/min and 10.3 bar), a made in the USA, field proven Sullair® rotary screw air end, small footprint, and a remote separator tank for flexible mounting and easy maintenance.

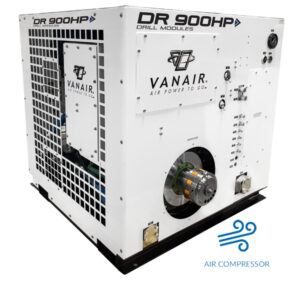

DR 900 Drill Module
Single-Stage Compressor System Delivers 900 CFM @ 150 PSI to Get the Toughest Jobs Completed.
Air Compressor
| Rated Capacity | 900 CFM (25.6 m3/min) |
| Pressure | 150 PSI (10.3 bar) |
| RPM Input | 1800 RPM |
| Input BHP Required | 256 BHP (191 kW) |
| Tank Discharge | 2 In. NPT |
Physical Specifications
| Compressor Module Weight | 2500 lbs |
| Separator Tank Weights | 1100 lbs |
*Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Fan Power Requirements
| Fan Drive Method | Hydraulic |
| Hydraulic Flow Required | 13.5 GPM |
| Hydraulic Pressure Required | 2300 PSIG |
| Hydraulic Connections (Inlet and Outlet) | 3/4 In. JIC |
| Case Drain Provided | 3/8 In. JIC |
Compressor Dimensions with Fittings (L x W x H):
- 51 L x 49 W x 45 H*
- 1295 x 1244 x 1158* (mm)
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
PERFORMANCE
- 900 CFM and 150 PSI
- Industry Leading Rotary Screw Air Compressor
- Compact Design
- Easy to Operate and Maintain
- Simple Controls and Piping
- Built for Harsh Environments
- Made in the USA
AIR COMPRESSOR
- Rotary Screw Air Compressor
- Single-Stage
- Field Proven Performance
- Recirculating Valve for Noise Reduction
- Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings
DISCHARGE TANK
- Vertical Design for Smaller Footprint and Better Angle of Operation
- In-Tank Coalescer for Longevity
- Minimum Pressure Valve
- Pressure Relief Valve
- Oil Scavenge Sight Glass
- Coalescer Restriction Indicator
AIR-TO-OIL COOLER
- Ambient Operating Range of -20 °F to +120 °F
AIR FILTER
- Dual Two-Stage Air Filters with Dust Evacuators for Clean Air
- Air Restriction Indicator
INSTRUMENTATION
- Conveniently Located, Easy-to-Read Temperature and Pressure Gauges
- Oil Level Sight Glass
SERVICEABILITY
- Easily Accessible Air Filters and Coalescers for Routine Service
- Independent Separator Tank for Ease of Maintenance
- Hinged–Top Roof and Access Panel for Maintenance and Adjustments
- Dust Evacuator for Easy Filter Maintenance
SAFETY
- High-Pressure Shutdown
- Air Pressure Relief Safety Valve
- Automatic Blowdown on Shutdown
- Oil Fill Plug Safety Relief
- Minimum Pressure Valve
CONVENIENCE
- Mounting Provisions on the Bottom of the Frame
- Heavy Duty Frame with Integral Forklift Tubes
- Powder Coated, Galvanneal Sheet Metal Enclosure
- Drive Hub
- Adapter for hydraulic motor
- SAE “D” face adapter
- Vanguard™ Rotary Screw Compressor Oil
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: The hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).
