The ELiMENT® 12V, LiFePO₄, 300Ah Battery is a high-performance auxiliary power solution designed to support the increasing electrical demands of modern work trucks. When integrated with the EPEQ® 12V Electrification Platform, the ELiMENT® battery provides reliable, engine-off power for 12V loads and inverters while protecting the vehicle starting system and supporting idle reduction requirements. Designed to support hydraulic power units, lube skids and transfer pumps, electric cranes, dump bodies, and lifting accessories such as jacks, winches, and fans, ELiMENT® Batteries help keep critical equipment operating without engine idle.

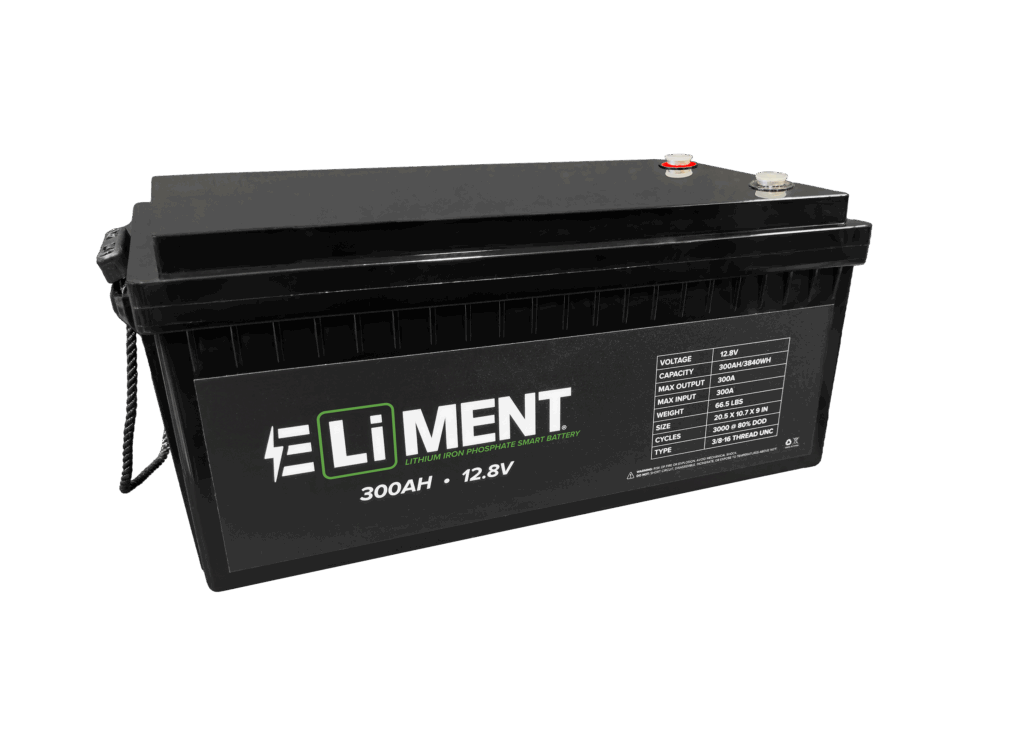

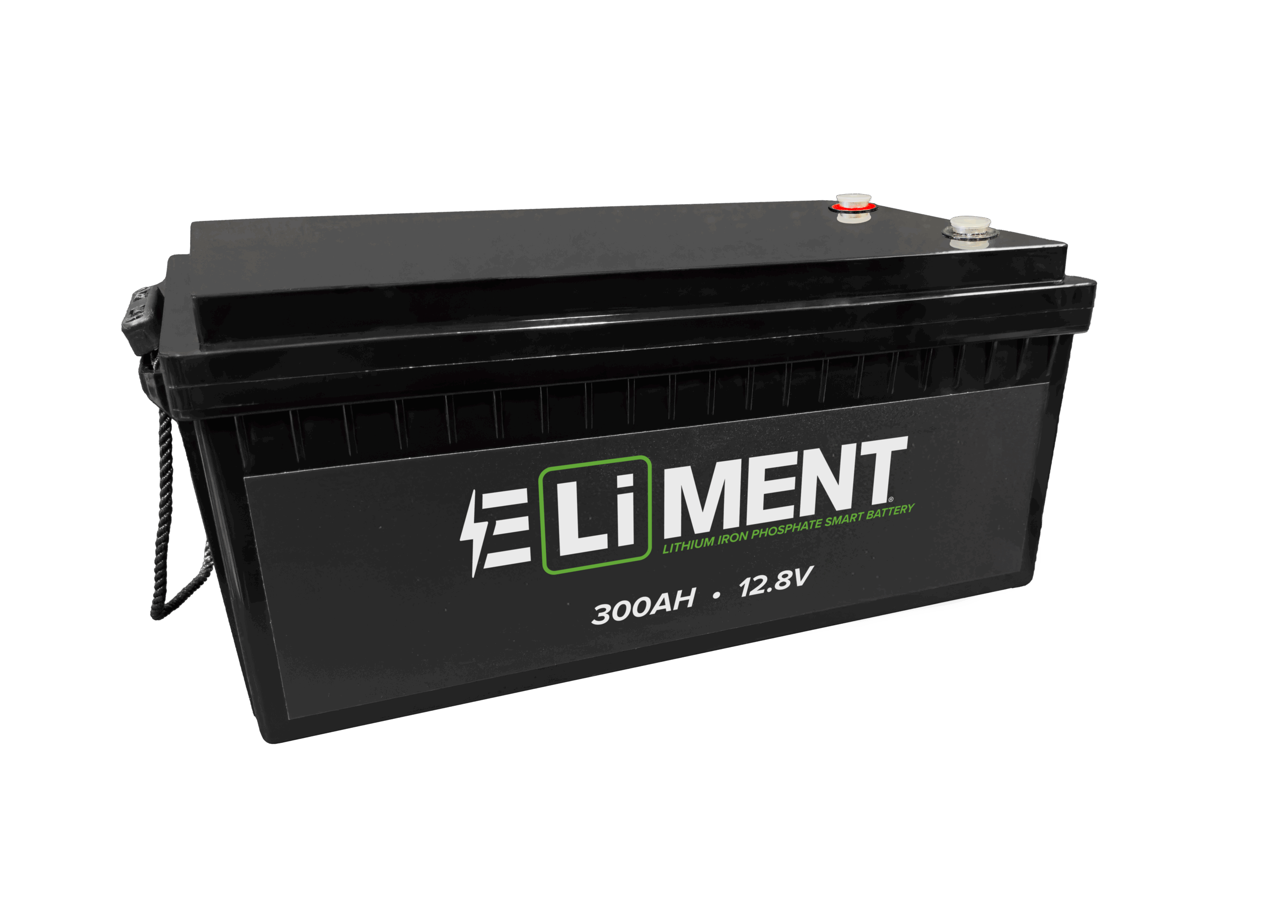

ELiMENT® 12V Battery – 300Ah
The images shown are for representation purposes only and may not reflect the actual product.
- Lithium Iron Phosphate (LiFePO₄) chemistry for superior safety and stability
- High energy density with significant weight reduction vs. AGM / lead acid
- Full rated power output down to 8% state-of-charge (SOC)
- Fast charge capability with high acceptance rates
- Zero maintenance – no watering, no sulfation
- Integrated Battery Management System (BMS) with multi-level protections
- Integrated heaters for cold weather charging and operation
- Parallel connect capable for scalable runtime and power
Battery Management and Protection
Integrated EPEQ® Battery Management System (BMS) — Integrated protections
- Over-current
- Over-charge and over-discharge
- Over-temperature and under-temperature
System Configuration
- Supports parallel connection for greater capacity & runtime
- Compatible with alternator charging, DC-DC charging, and shore power systems
Lifespan and Reliability
- Cycle life: 3,000 cycles @ 80% depth of discharge
- 8–10 years typical service life (application dependent)
- 24+ months shelf life
- Zero sulfation or memory effect for reliable performance
Applications
- Hydraulic power units
- Lube skids and transfer pumps
- Electric cranes
- Dump bodies
- Lifting jacks, winches, fans
General and Mission Critical Loads
- Inverter powered AC tools
- Communications and telematics equipment
- Safety lighting and beacons
- Monitoring and control systems
- UPS style backup for critical electronics
Certifications
- UL1973 (entire assembly)
- IP65 (entire assembly)
| Parameter | 300Ah – Premium Plus |
|---|---|
| Nominal Voltage | 12.8V |
| Capacity | 3840Wh |
| Low Voltage Cutoff | 9.6V |
| High Voltage Cutoff | 15.6V |
| Charge Current | 150A |
| Max Discharge Current (3 Seconds) | 450A |
| Continuous Discharge Current | 250A |
| Battery Group Size | 8D |
| Dimensions (In.) | 20.5L x 10.7W x 8.9H |
| Weight (Lbs.) | 62.5 |
| Terminal Type | 3/8-16 UNC Thread |
| Auxiliary Charging | Yes |
- E-12V300-PPSK-01 — ELIMENT® 12V, 300AH, Deep Cycle Battery, Premium Plus
