This high speed, diesel engine driven welder/generator is capable of dual or single operator DC multi-purpose welding. It features 120/240 VAC single phase auxiliary power, a user interface screen for advanced features, patented CrossLinc® and Chopper Technology®, and is powered by a 24.8 HP Kubota® D902 diesel engine.
Machine Number: K4382-2
What’s included:

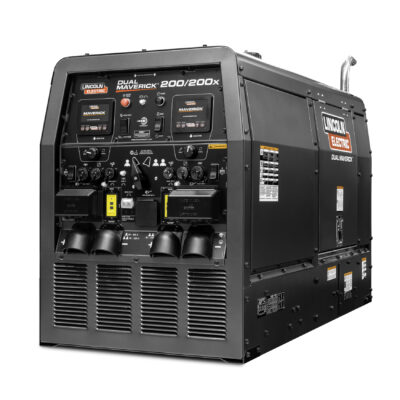

The image shown is for representation purposes only and may not reflect the actual product.
| Machine Processes: | Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage: | 60 Peak OCV @ 3600 RPM |
| Single Phase Auxiliary Output: | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency: | 60 Hz |
| Receptacle Types: | NEMA 5-20R, NEMA 14-50R |
| Engine Brand & Model: | Kubota® D902 |
| Engine Description: | 3 Cylinder Naturally Aspirated Water-Cooled Diesel Engine |
| Engine Horsepower: | 24.8 hp (18.5 kW) |
| Engine Block Size & Displacement: | 54.8 cu. in. (.90 L), Bore x Stroke – 2.83 in. x 2.90 in. (72 mm x 73.6 mm) |
| Emissions Rating: | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output: | 3600 RPM |
| Low Idle Operating Speed: | 2500 RPM |
| Sound Rating @23 ft. (7m): | Low Idle: 69 dBA, High Idle: 74 dBA |
| Fuel Tank Size: | 20 gal., 75.7 L |
| Oil Capacity: | 3.92 qts., 3.7 L |
| Coolant Capacity: | 0.9 gal., 0.9 L |
| Warranty: | 3 Years Parts and Labor – Engine warranted separately by engine manufacturer |
Unit Dimensions (H x W x D): 36.08 in. x 27.0 in. x 65.0 in. (917 mm x 686 mm x 1651 mm)
Dry Weight: 1160 lbs. (526 kg)
Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. Lincoln Electric®, Maverick®, and the Stacked Oval Logo are registered trademarks of The Lincoln Electric Company and its related companies. All trademarks and registered trademarks are the property of their respective owners.
| IEC Rating: | Single: 290A / 31.6V / 100% @ 104°F (40°C), Dual: 170A /26.8V / 100% @ 104°F (40°C) |
| Output Range by Mode (Single): | CC-Stick: 50–450A, Downhill Pipe (CC): 50-450A, Touch Start TIG: 20–255A, CV-Wire: 13–40V, Arc Gouging: 100–450A |
| Output Range by Mode (Dual): | CC-Stick: 30–255A, Downhill Pipe (CC): 30–225A, Touch Start TIG: 20–250A, CV-Wire: 13–40V, Arc Gouging: 100–250A |
| Rated Gouging Carbon Diameter: | 3/8 in (9.5 mm) |
| Machines Communication Technology: | CrossLinc® |
K4382-2 — Dual Maverick® 200/200X (Kubota®) Diesel Engine Driven Welder/Generator
3 Years Parts and Labor – Engine warranted separately by engine manufacturer https://www.lincolnelectric.com/en/Legal-Information/Warranty-Statements
