The New Frontier® of Performance

The Frontier® 400X Diesel Engine Driven Welder/Generator breaks the boundaries of welding innovation – delivering a versatile, next generation system for your go-to choice on the jobsite or in your rental fleet. This system is powered by a 24.8 hp Kubota® D1503-M diesel engine.

Machine Number: K3484-2

What’s included:

  • (1) Frontier® 400X (Kubota®) Diesel Engine Driven Welder/Generator

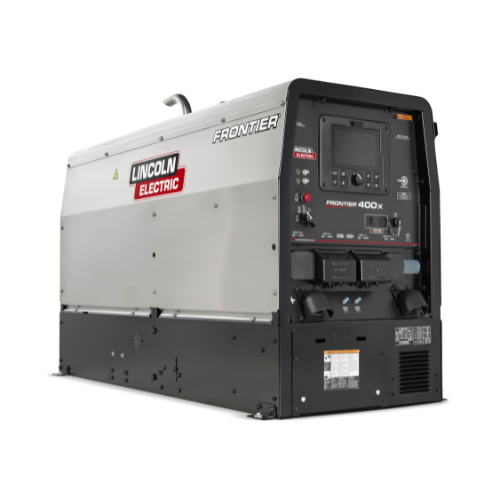

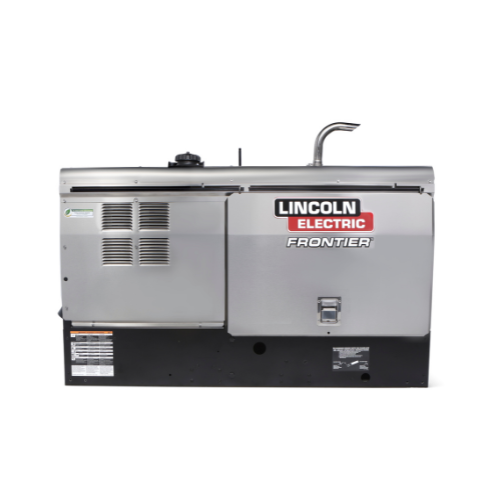

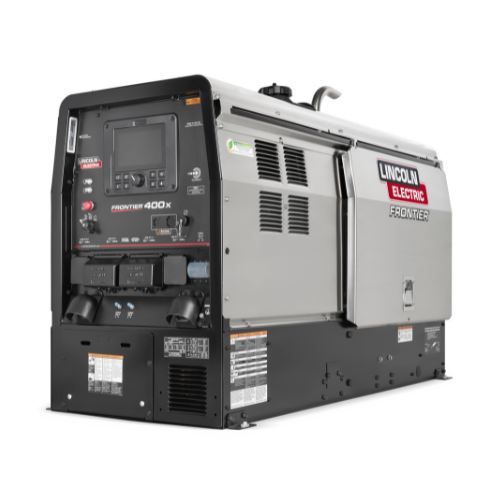

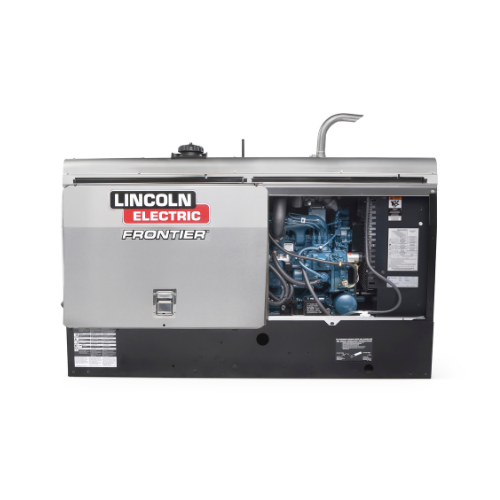

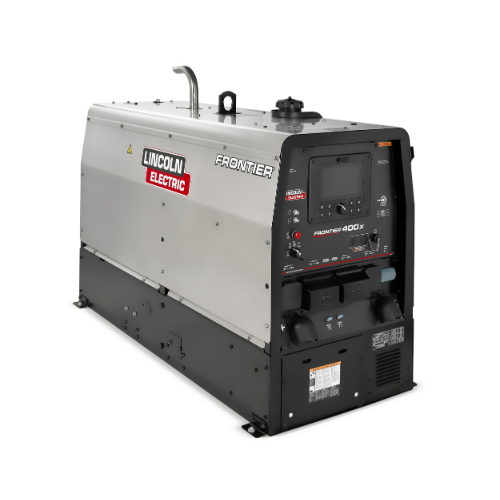

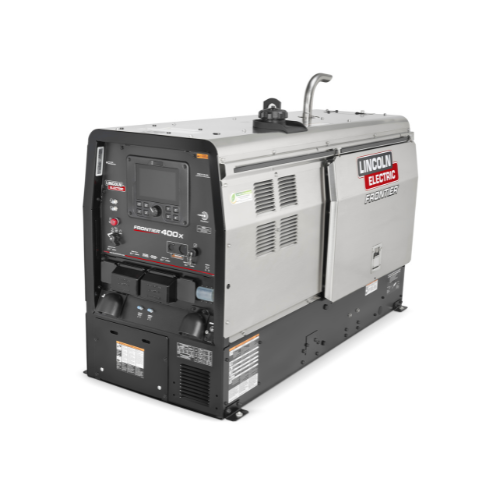

Frontier® 400X (Kubota®)

The image shown is for representation purposes only and may not reflect the actual product.

Machine Processes:Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Orbital MIG
Open Circuit Voltage:71 Peak OCV @1800 RPM
Single Phase Auxiliary Output:10,000 Watts Continuous, 11,500 Watts Peak, 120/240V
Three Phase Auxiliary Output:11,000 Watts Continuous, 12,500 Watts Peak, 240V
Auxiliary Output Frequency:60 Hz
Receptacle Types:NEMA 5-20R, NEMA 14-50R, NEMA 15-50R
Engine Brand & Model:Kubota® D1503-M

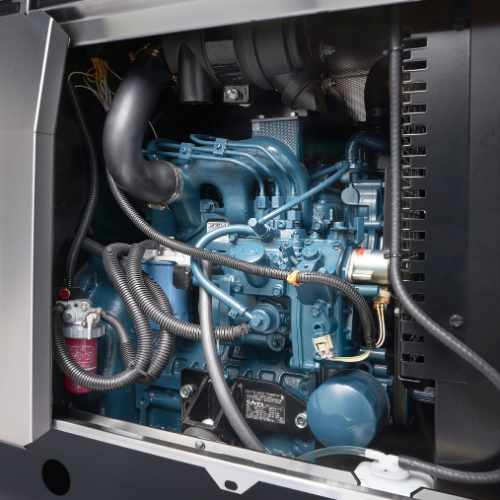

Engine Description:3 Cylinder Naturally Aspirated Water-Cooled Diesel Engine
Engine Horsepower:24.8 hp (18.5 kW)
Engine Block Size & Displacement:91.4 cu. in. (1.5 L), Bore x Stroke – 3.27 in. x 3.64 in. (83 mm x 92.4 mm)
Emissions Rating:US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output:1800 RPM
Low Idle Operating Speed:1400 RPM
Sound Rating @23 ft. (7m):Low Idle: 67 dBA, High Idle: 71 dBA
Fuel Tank Size:20 gal., 75.7 L
Oil Capacity:6.4 qts., 6.0 L
Coolant Capacity: 1.8 gal., 6.8 L
Warranty:3 Years Parts and Labor – Engine warranted separately by engine manufacturer

Unit Dimensions (In.): 35.9 L x 25.3 W x 60 D (913 mm x 643 mm x 1524 mm)

Dry Weight: 1035 lbs. (469 kg)

Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. Lincoln Electric®, Frontier®, and the Stacked Oval Logo are registered trademarks of The Lincoln Electric Company and its related companies. All trademarks and registered trademarks are the property of their respective owners.

IEC Rating:325A / 33V / 100% @ 104°F (40°C)
Output Range by Mode: Stick/Pipe (SMAW): 30–400A, CV-Wire (GMAW, FCAW-S, FCAW-G): 10–45V, DC TIG (GTAW): 5–400A, Arc Gouging (CAC-A): 60–400A
Rated Gouging Carbon Diameter:5/16 in (8.0 mm)
Machines Communication Technology:CrossLinc®
  • Full Job-Site Versatility – Offers up to 400A (IEC rated at 325A) of welding current to tackle numerous welding and carbon arc gouging applications. Includes six optimized CC and CV modes, plus advanced modes to support pulsed TIG, pulsed MIG, STT®, and mechanized equipment.
  • All Day Auxiliary Power – Provides up to 11kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.

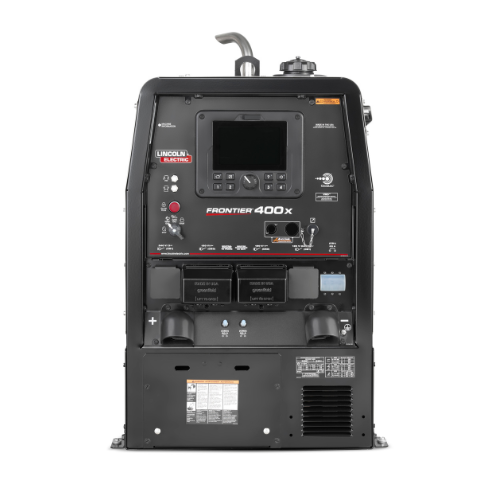

  • Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control – Save and recall memories, receive maintenance reminders, and enable PIN authorization.
  • CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
  • Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
  • Field-Proven Diesel Engine – Powered by a 24.8 hp, naturally aspirated Kubota® diesel engine to provide extremely smooth and quiet operation while meeting EPA Tier 4 Final compliance.
  • Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
  • Construction
  • Mining
  • Railroad Maintenance
  • Cross Country Pipeline
  • Construction & Field Erection
  • Maintenance & Repair
  • Offshore
  • Oil & Gas
  • Power Generation
  • Shipbuilding
  • Structural Fabrication
  • Structural Welding
  • K3484-2 — Frontier® 400X (Kubota®) Diesel Engine Driven Welder/Generator
