Do More with Less

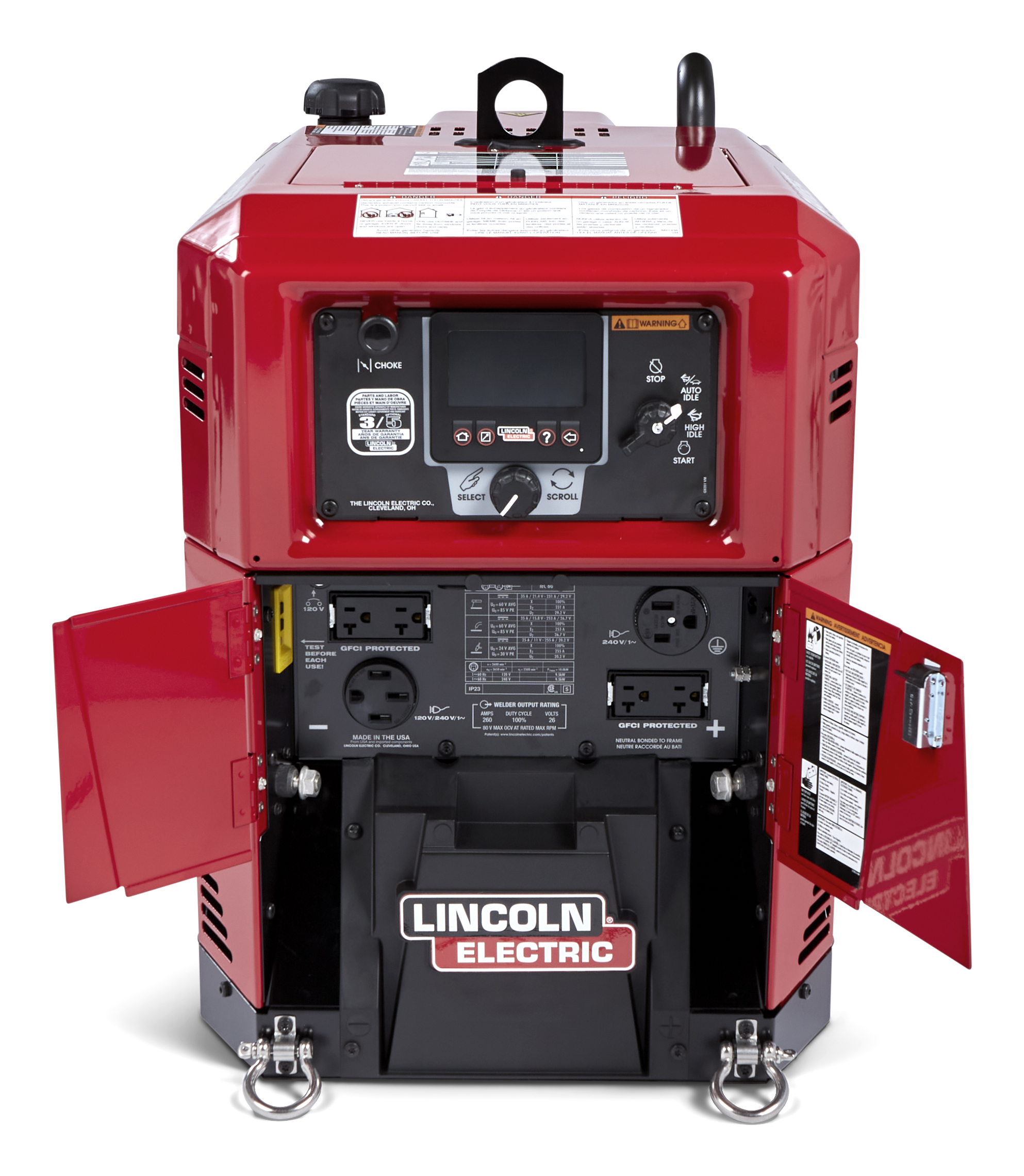

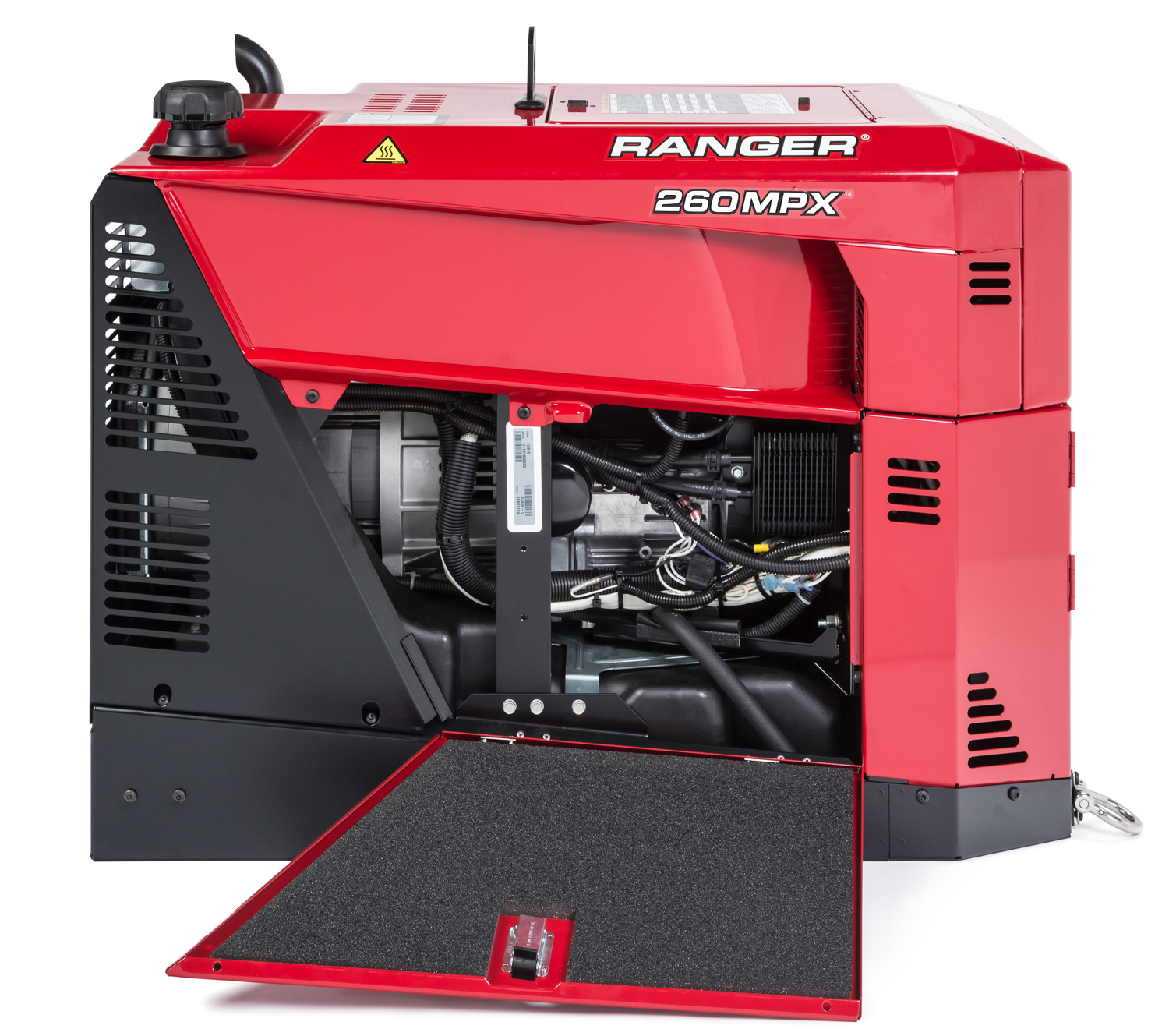

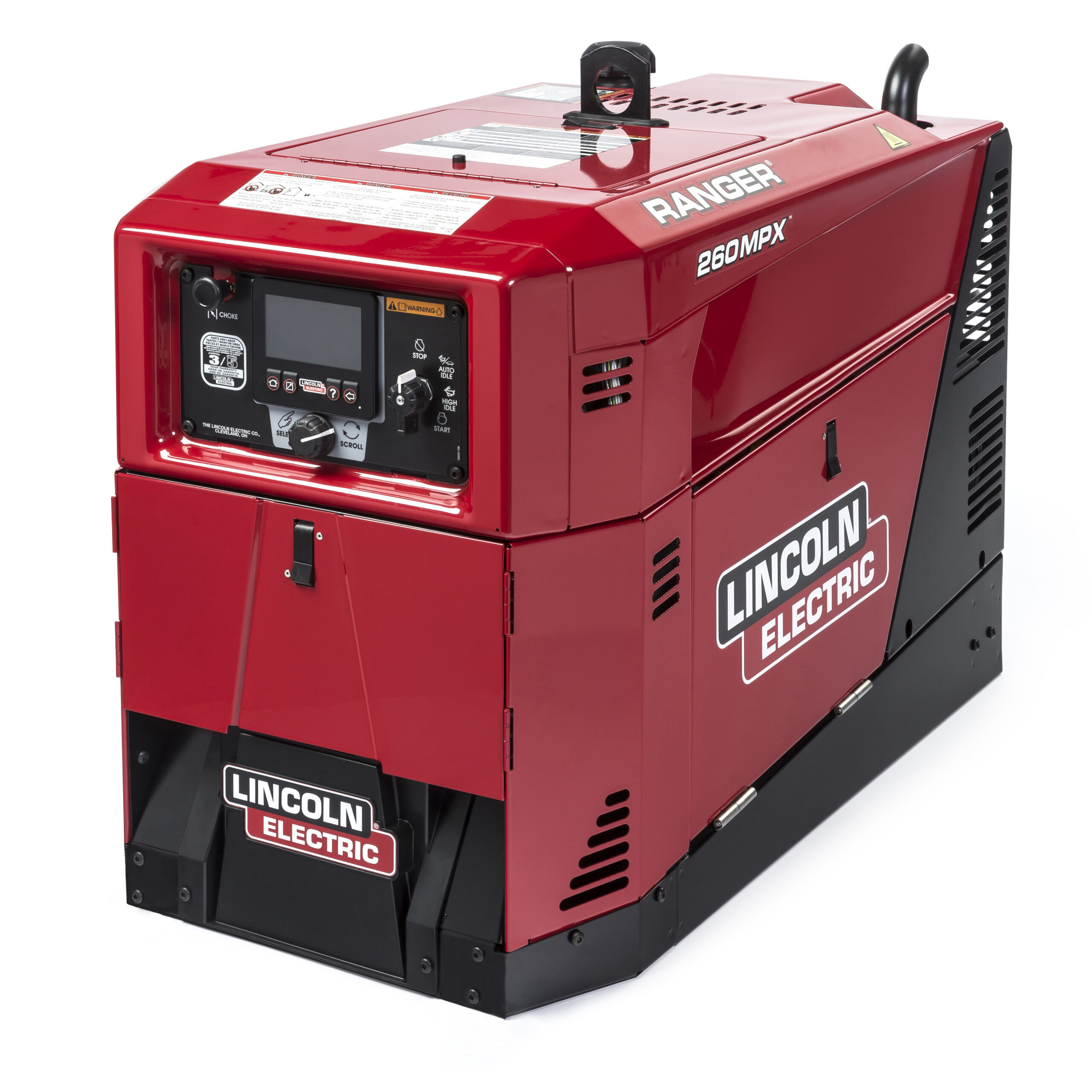

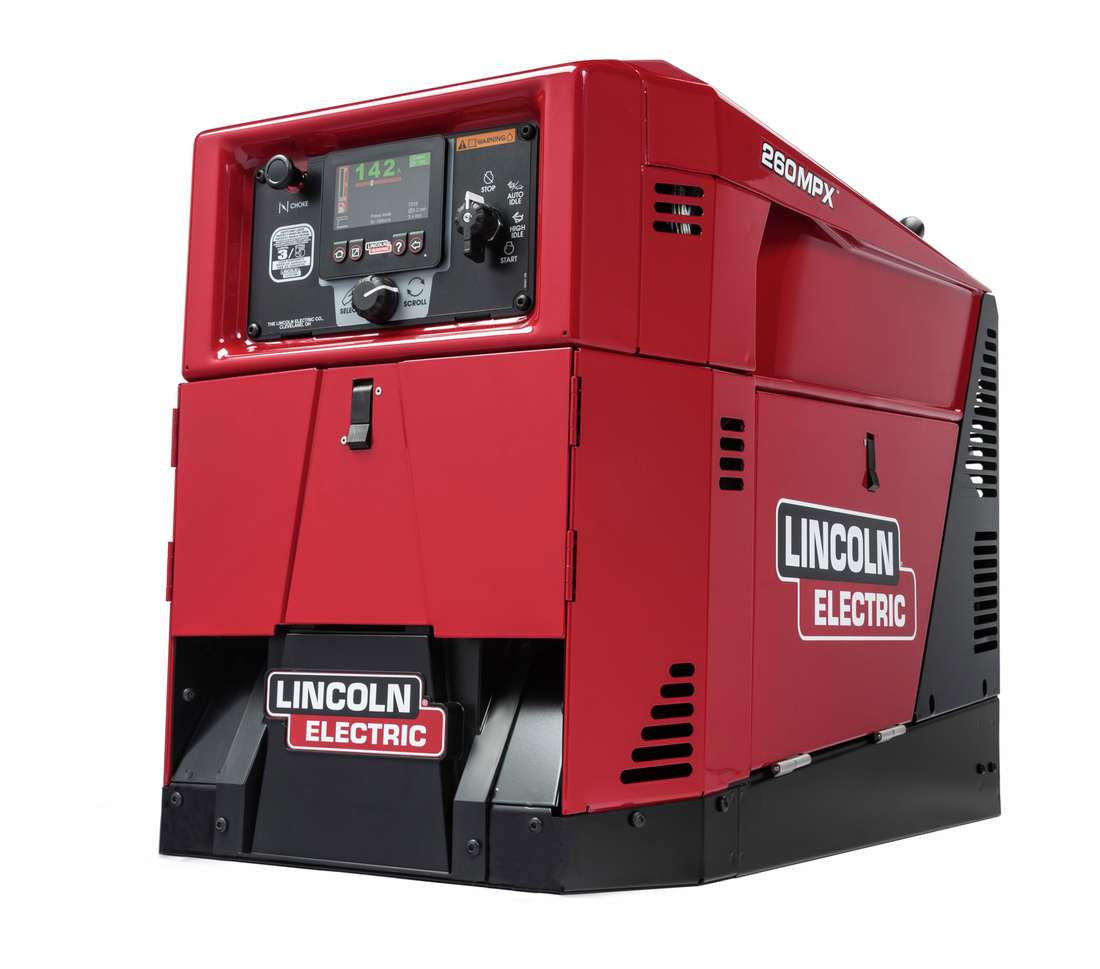

The Ranger® 260MPX™ Engine Driven Welder/Generator excels on the job. The unit’s industry-leading design makes it smaller, lighter, and quieter than other machines in its class, while an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment. Get the job done with the Ranger® 260MPX™. This premium welder/generator has excellent multi-process capability for stick, TIG, MIG while providing clean AC generator output.

Machine Number: K3458-1

What’s included:

  • (1) Ranger® 260MPX™ Engine Driven Welder/Generator

The images shown are for representation purposes only and may not reflect the actual product.

Machine Processes:Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
Single Phase Auxiliary Output:9,500 Watts Continuous, 10,000 Watts Peak, 120/240V
Auxiliary Output Frequency:60 Hz
Receptacle Types:NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
Engine Brand & Model:Kohler® OHV Command CH730
Engine Description:2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower:23.5 HP
High Idle Operating Speed @ Rated Output:3600 RPM
Fuel Tank Size:11 gal., 41.6 L
Oil Capacity:2.0 qts., 1.9 L
Warranty:3 Years Parts and Labor – Engine warranted separately by engine manufacturer

Unit Dimensions (H x W x D): 26 in. x 20 in. x 36 in. (660 mm x 508 mm x 914 mm)
Net Weight: 446 lbs. (202 kg)

Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. Lincoln Electric®, Ranger®, 260MPX™, and the Stacked Oval Logo are registered trademarks of The Lincoln Electric Company and its related companies.  All trademarks and registered trademarks are the property of their respective owners.

IEC Rating:231A / 29.2V / 100% @ 104°F (40°C)
Output Range by Mode:CC-Stick: 35–260A, Touch Start TIG: 20–250A, CV-Wire: 14–28V
  • Compact Size
  • Low Decibel Rating
  • Easy-to-Use Digital User Interface
  • Clean AC Generator Power
  • Construction
  • Construction & Field Erection
  • General Fabrication
  • Maintenance & Repair
  • Repair Welding
  • Structural Fabrication
  • Structural Welding
  • K3458-1 — Ranger® 260MPX™ Engine Driven Welder (Kohler®)

3 Years Parts and Labor – Engine warranted separately by engine manufacturer https://www.lincolnelectric.com/en/Legal-Information/Warranty-Statements
