Smaller, Smarter, and Quieter

The Ranger® 330MPX™ Engine Driven Welder leads the way for the construction, maintenance, and service truck industries. This premium welder/generator has excellent multi-process capability for stick, TIG, MIG, gouging, and pipe applications.

Machine Number: K3459-1

What’s included:

  • (1) Ranger® Air 330MPX™ Engine Driven Welder
  • (1) Basic Wireless Remote for Engine Stop/Start Functionality

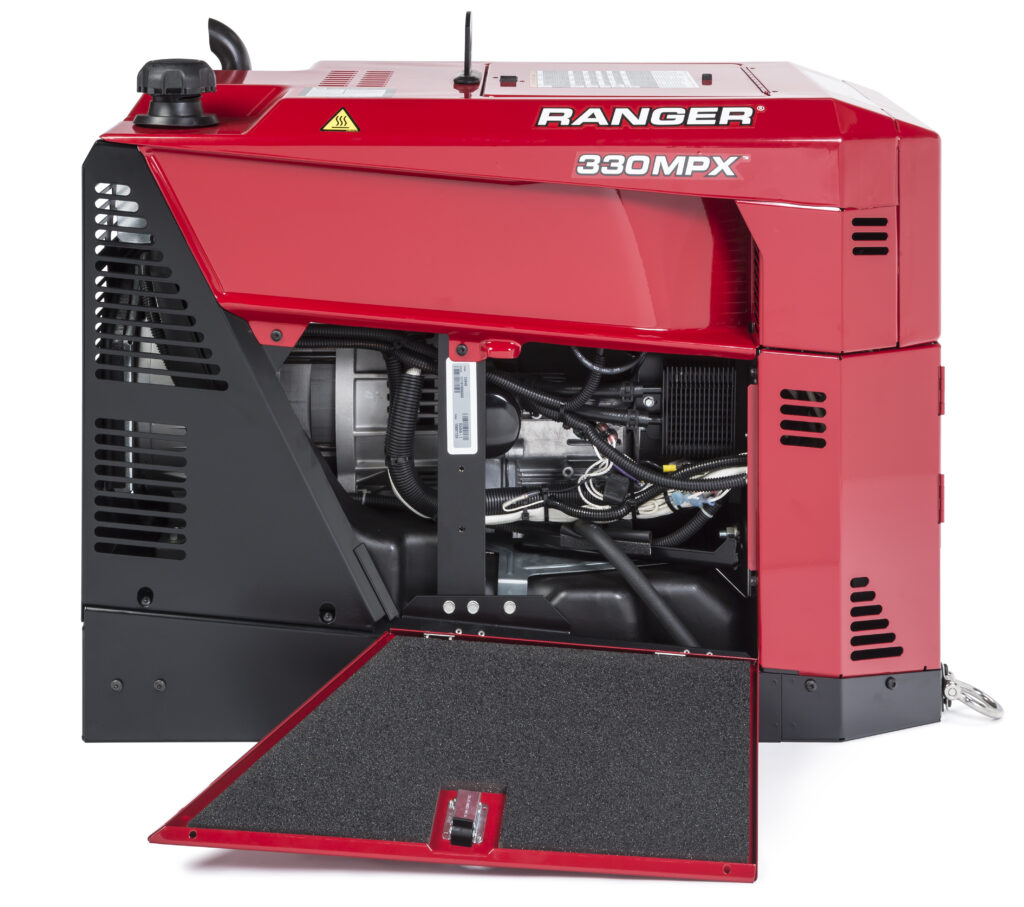

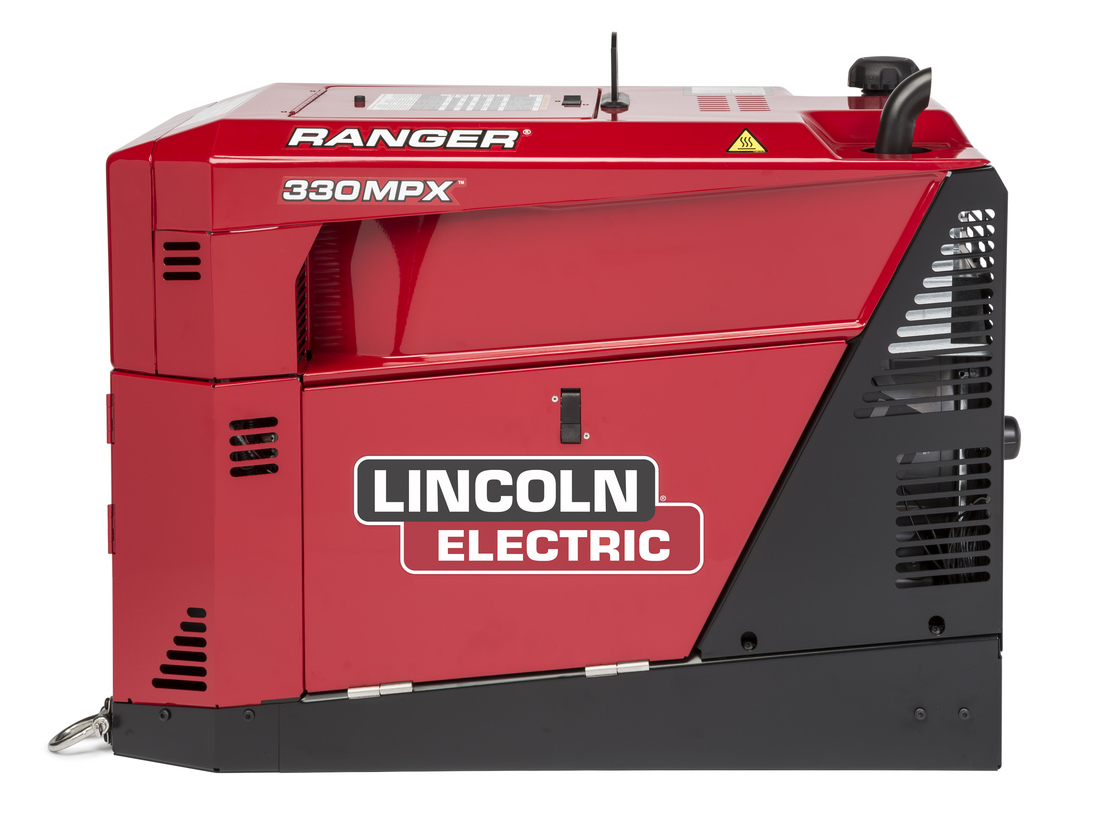

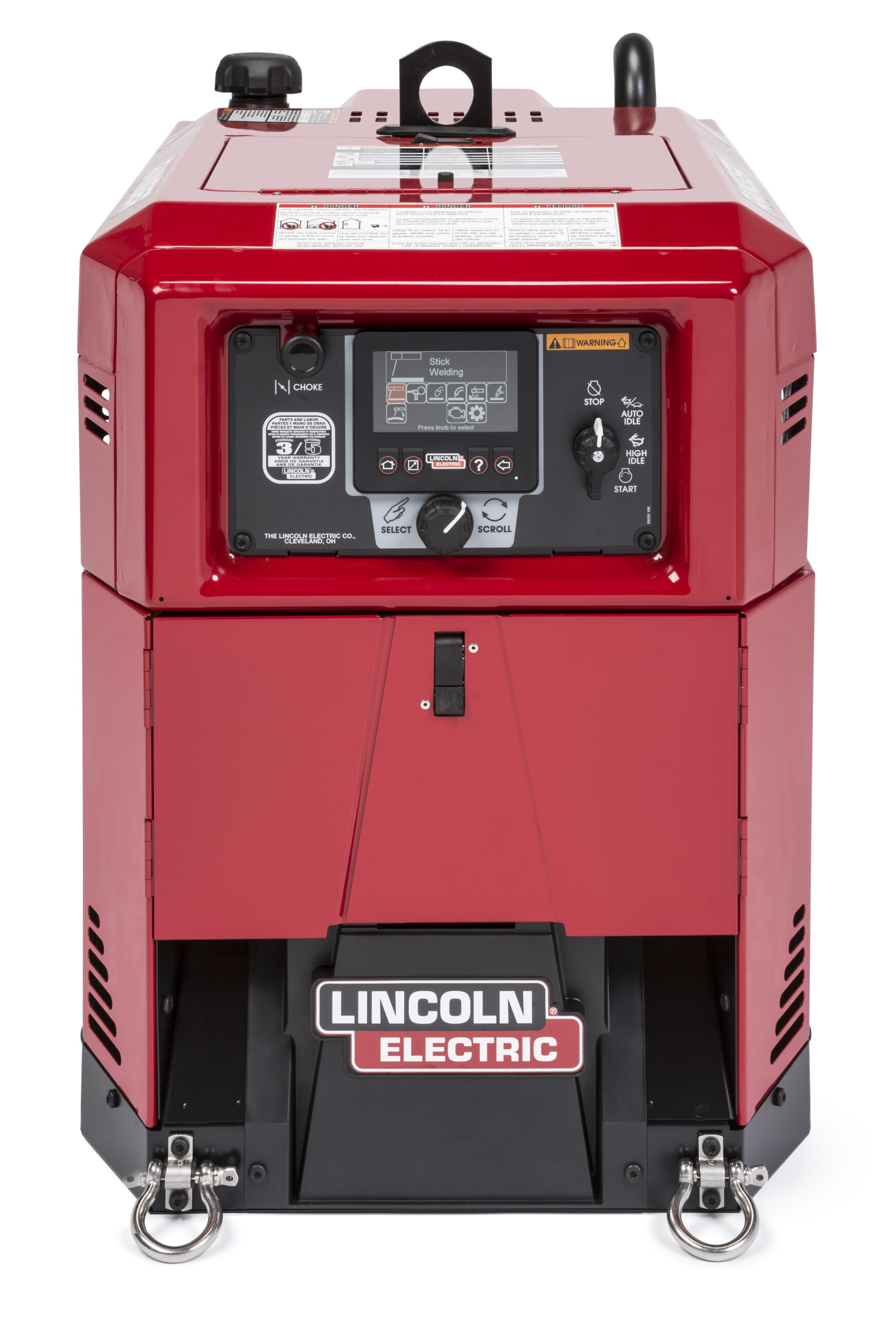

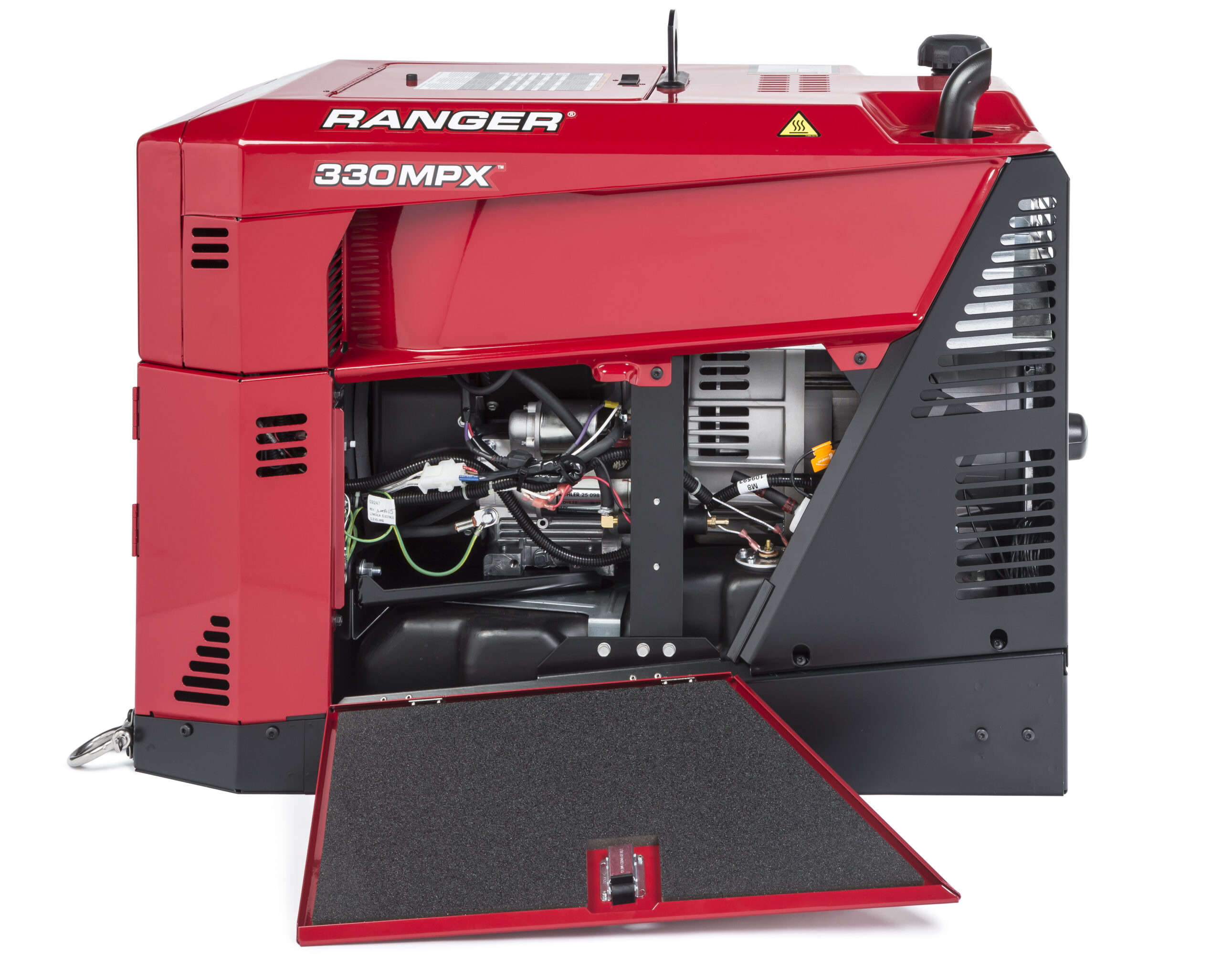

The images shown are for representation purposes only and may not reflect the actual product.

Machine Processes:Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
Single Phase Auxiliary Output:10,000 Watts Continuous, 11,500 Watts Peak, 120/240V
Auxiliary Output Frequency:60 Hz
Receptacle Types:NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
Engine Brand & Model:Kohler® OHV Command CH740
Engine Description:2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower:25 HP
High Idle Operating Speed @ Rated Output:3600 RPM
Fuel Tank Size:11 gal., 41.6 L
Oil Capacity:2.0 qts., 1.9 L
Warranty:3 Years Parts and Labor – Engine warranted separately by engine manufacturer

Unit Dimensions (H x W x D): 26 in. x 20 in. x 36 in. (660 mm x 508 mm x 914 mm)
Dry Weight: 446 lbs. (202 kg)

Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. Lincoln Electric®, Ranger®, 330MPX™, and the Stacked Oval Logo are registered trademarks of The Lincoln Electric Company and its related companies. All trademarks and registered trademarks are the property of their respective owners.

IEC Rating:292A/31.7V/100% @ 104°F (40°C)
Output Range by Mode:CC-Stick: 35-330A, Downhill Pipe (CC): 25-330A, Touch Start TIG: 25–330A, CV-Wire: 14–40V, Arc Gouging: 90–330A
Rated Gouging Carbon Diameter:3/16 in (5.0 mm)
  • Compact size
  • Low decibel rating
  • Easy-to-use digital user interface
  • Clean AC generator power
  • Advanced technology to improve weld performance and productivity
  • Construction
  • Construction & Field Erection
  • General Fabrication
  • Structural Fabrication
  • Structural Welding
  • K3459-1 — Ranger® 330MPX™ Engine Driven Welder/Generator (Kohler®)

3 Years Parts and Labor – Engine warranted separately by engine manufacturer https://www.lincolnelectric.com/en/Legal-Information/Warranty-Statements
