Ranger® Air 260MPX™ Multi-Function Engine Drive System

The Ultimate Machine for the Demanding Jobsite

In the work truck industry, no two jobsites are the same, but every jobsite is demanding. Be ready to tackle anything with a Ranger® Air 260MPX™ Multi-Function Engine Drive from Lincoln Electric. This multi-function engine drive system has five key functionalities in one compact unit: air compressor, generator, battery jump assist, battery charge, and multi-process welder.

Machine Number: K5238-1

What’s included:

  • (1) Ranger® Air 260 MPX™ Engine Drive Welder
  • (1) Basic Wireless Remote for Engine Stop/Start Functionality
Get a Quote

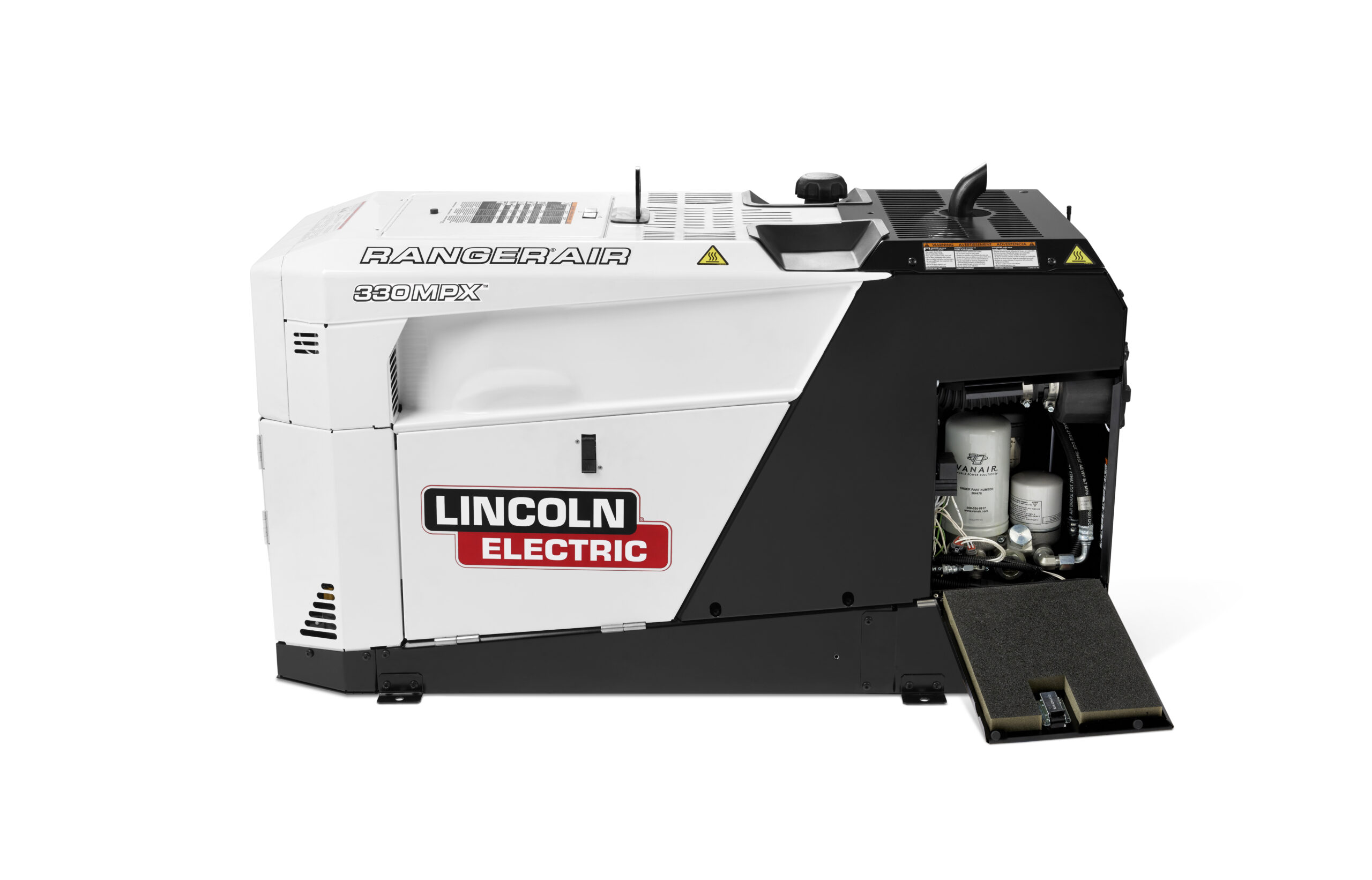

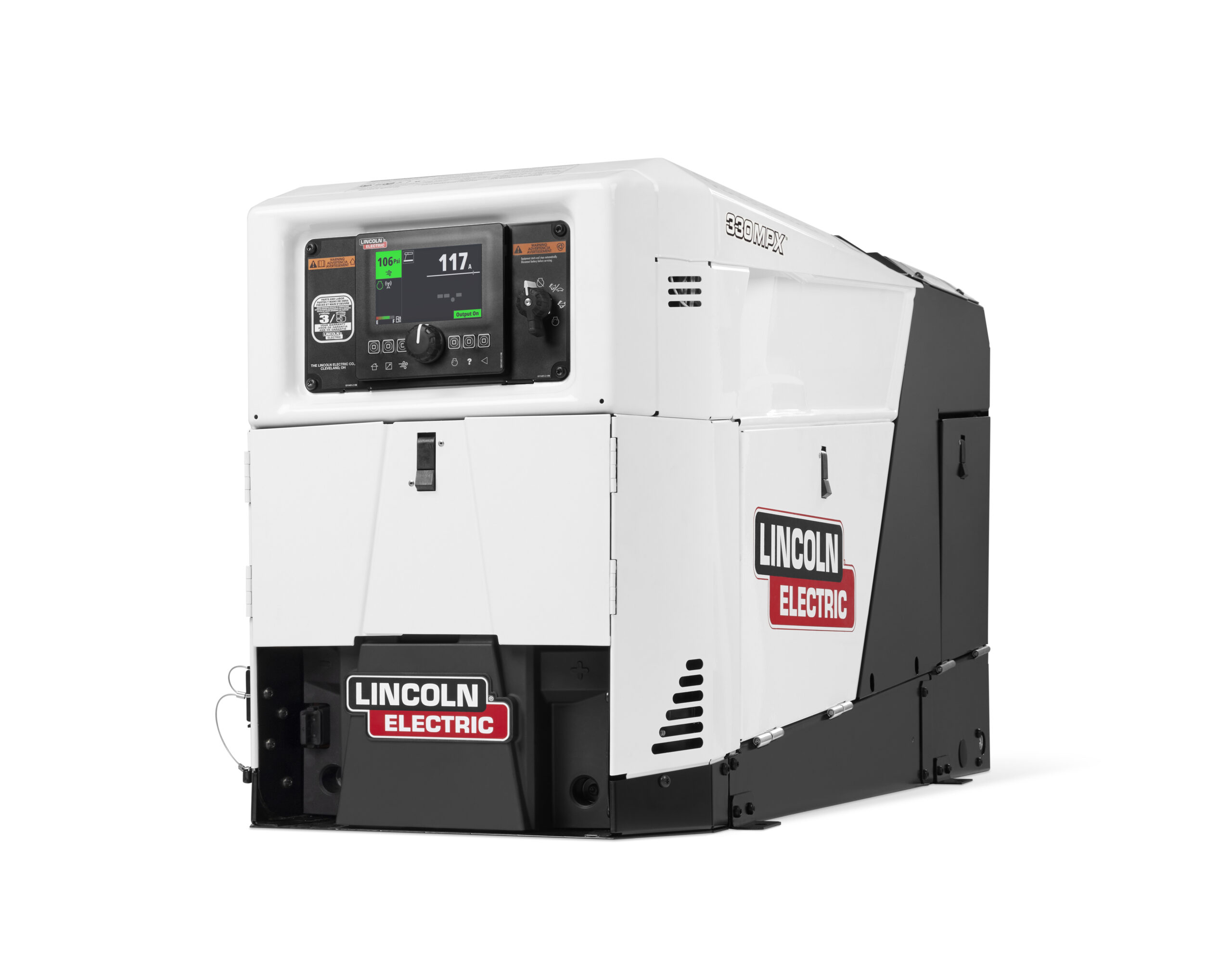

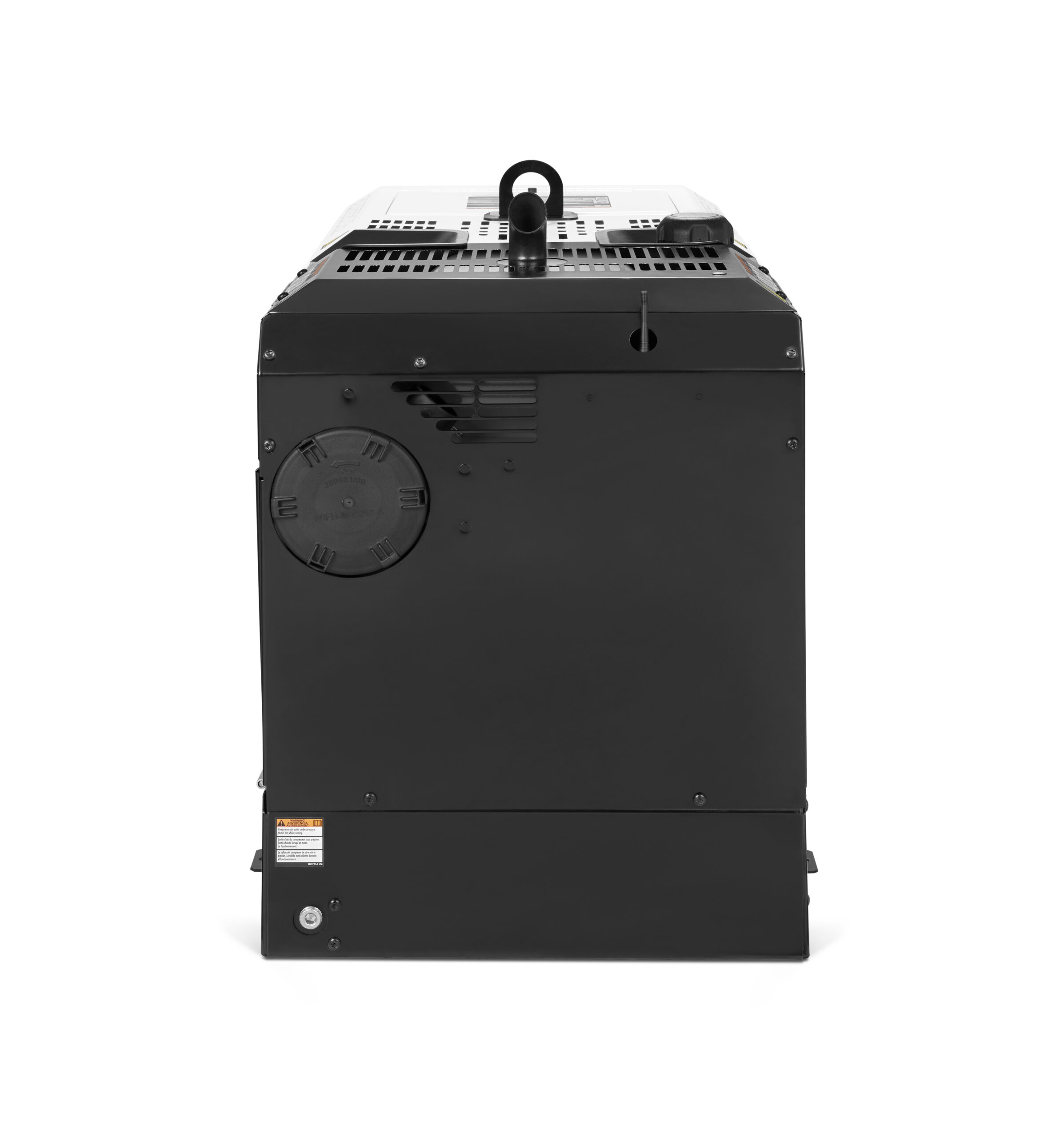

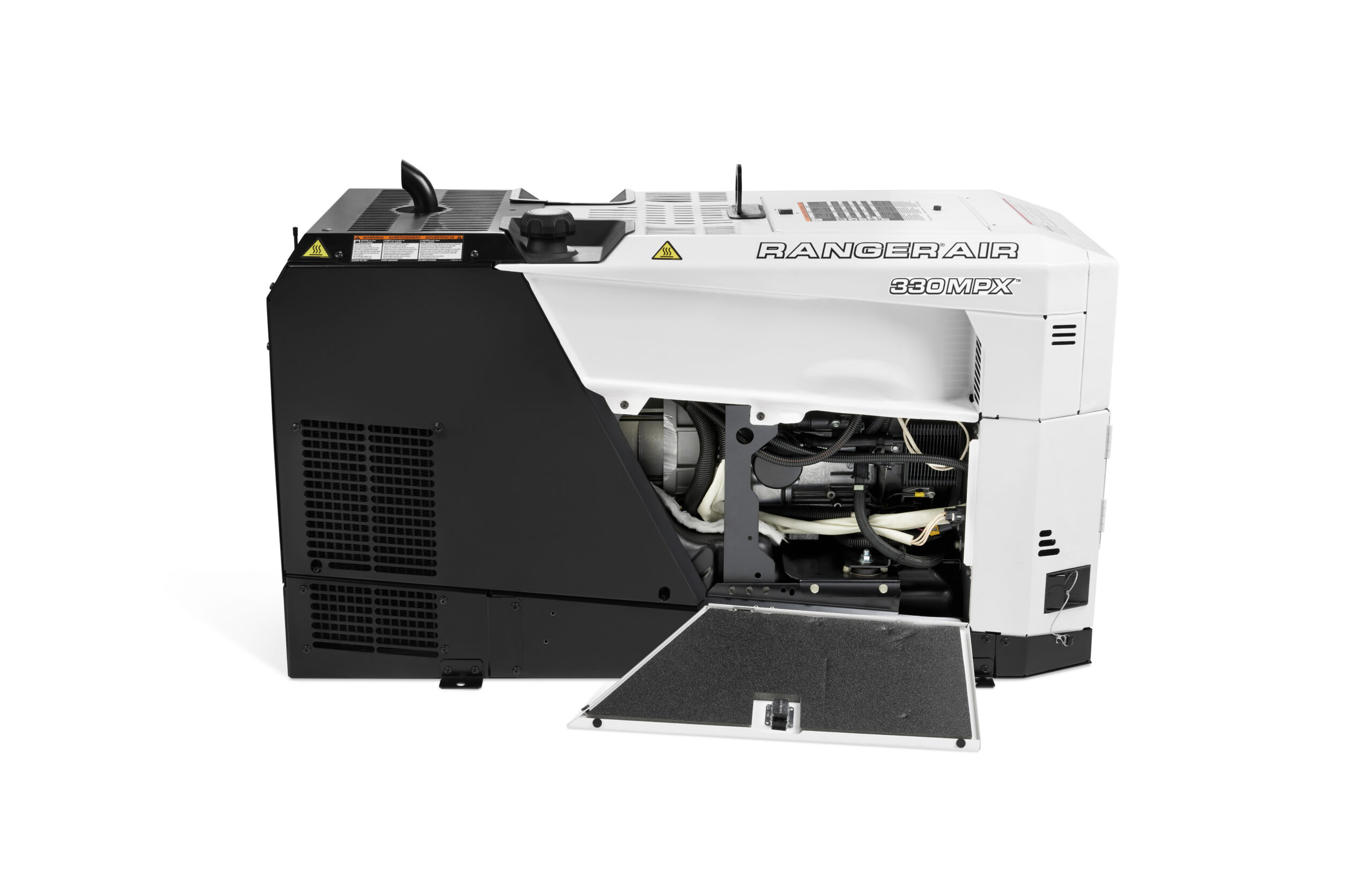

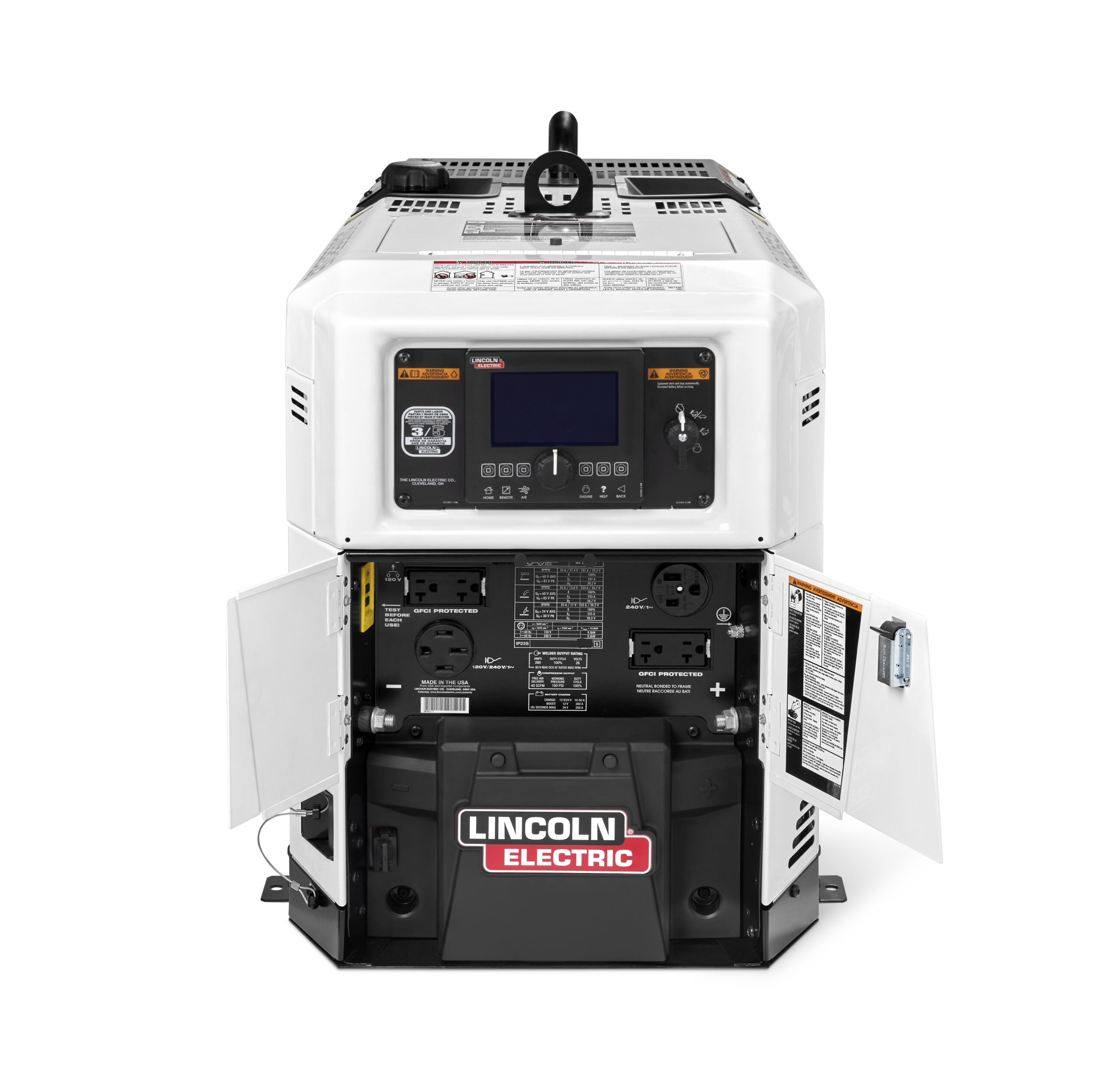

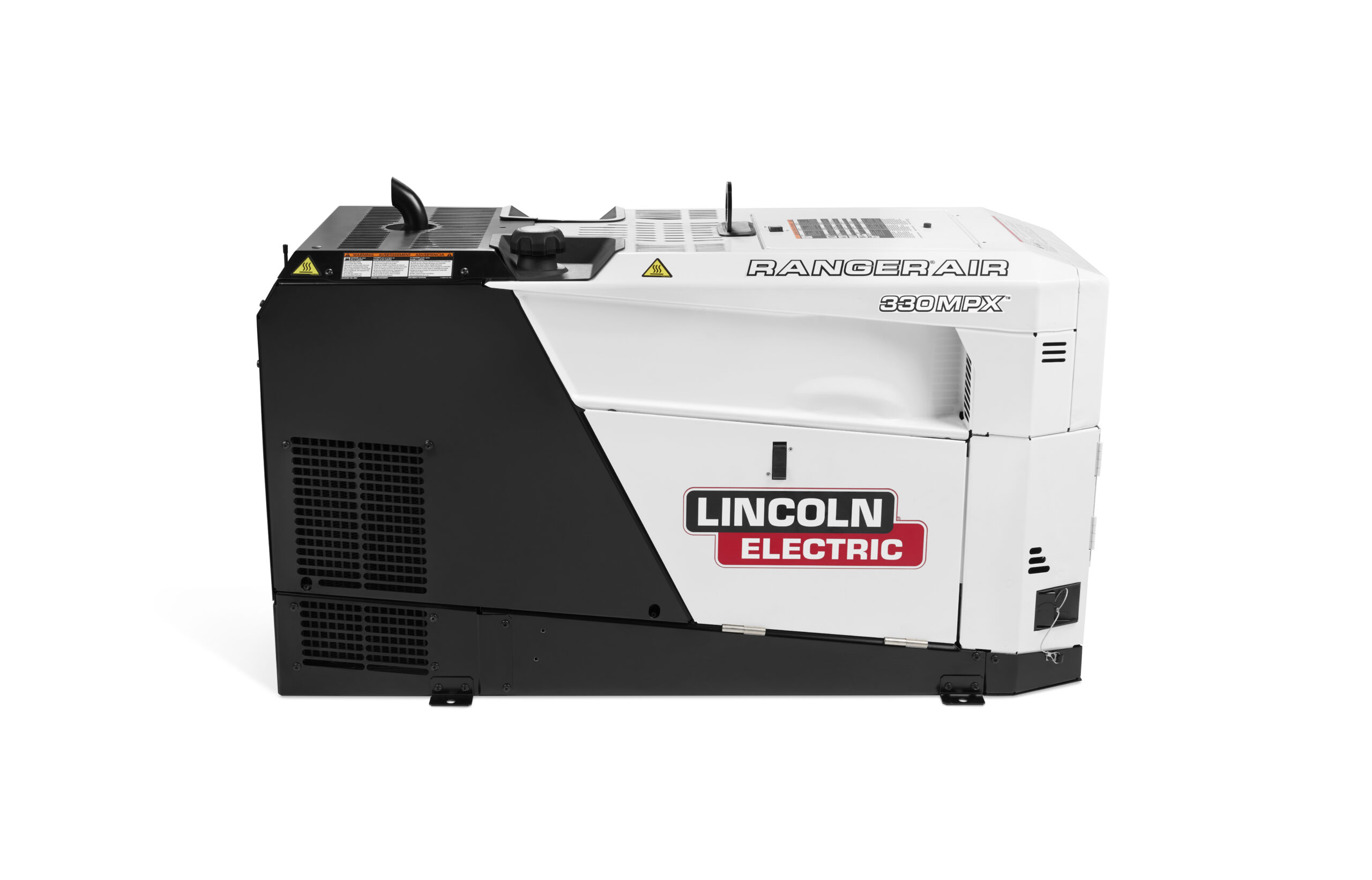

  • K5239-1 Ranger® Air 330MPX™ Multi-Function Engine Drive
  • Ranger® Air 330MPX™ Multi-Function Engine Drive
  • Ranger® Air 330MPX™ Multi-Function Engine Drive
  • Ranger® Air 330MPX™ Multi-Function Engine Drive
  • Ranger® Air 330MPX™ Multi-Function Engine Drive
  • Ranger® Air 330MPX™ Multi-Function Engine Drive

The images shown are for representation purposes only and may not reflect the actual product.

Product Specifications

Machine Processes:Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
Single Phase Auxiliary Output:9,000 Watts Continuous, 11,500 Watts Peak
Auxiliary Output Frequency:60 Hz, Full KVA Receptacle
Receptacle Types:NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
Engine Brand & Model:Kohler® Electronic Throttle Body ECH749
Engine Description:2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower:26.5 HP @ 3600 RPM
Engine Block Size & Displacement:45 cu. in. (725 cc)
High Idle Operating Speed @ Rated Output:3600 RPM
Fuel Tank Size:11 gal., 41.6 L
Oil Capacity:1.9 qts., 1.8 L
Air Compressor:Vanair® Single Stage Rotary Screw, 40 CFM @ 150 PSI, 175 PSI Max
Air Compressor Protections:Safety Relief Valve (225 PSI Max), High Temp Shutdown at 250°F (121°C)
Air Compressor Oil Capacity:0.75 gal., 2.84 L
Battery Jump Assist:260A, 12/24V
Battery Charge:25A or 50A, 12/24V
Warranty:3 Years Parts and Labor – Engine warranted separately by engine manufacturer

Unit Dimensions (H x W x D): 26 in. x 20 in. x 48 in. (660 mm x 508 mm x 1219 mm)

Net Weight: 565 lbs. (256 kg)

Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. Lincoln Electric®, Ranger®, 260MPX™, and the Stacked Oval Logo are registered trademarks of The Lincoln Electric Company and its related companies.  All trademarks and registered trademarks are the property of their respective owners.

Machine Technologies & Connections

IEC Rating:231A/29.2V/100% @ 104°F (40 °C)
Output Range by Mode: CC-Stick: 35–260A, Touch Start TIG: 25–260A, CV-Wire: 16–27V
Data Technologies:J1939 CAN
Machines Communication Technology:CrossLinc®

Features

  • Multi-Function Capabilities
  • Cost Saving Features
  • Digital User Interface
  • Advanced Technology
  • Compact Design

Typical Applications

  • Construction
  • Construction & Field Erection
  • General Fabrication
  • Maintenance & Repair
  • Repair Welding
  • Structural Fabrication
  • Structural Welding

Machine Numbers

  • K5238-1 — Ranger® Air 260MPX™ Multi-Function Engine Drive

Warranty

3 Years Parts and Labor – Engine warranted separately by engine manufacturer https://www.lincolnelectric.com/en/Legal-Information/Warranty-Statements

California Proposition 65

WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects (or other reproductive harm). (California Health & Safety Code §25249.5 et seq.)

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
