Lightweight, Space Saving, Cost Effective…Vanair® PTO Underdeck Air Compressor

When you need Air Power to Go™, rely on Vanair’s line of powerful, compact truck-mounted underdeck PTO shaft driven air compressors. At half the cost of tow-behinds, our compressors deliver a powerful 60 – 1000 CFM of air combined with features and benefits that blow away the competition.

Underdeck Assembly for Chassis Makes:

  • Chevrolet
  • ISUZU
  • Kenworth
  • International®
  • CV International
  • Peterbilt
  • HINO
  • Freightliner®
Calculate Savings
Underdeck Assembly for Chassis makes - Chevrolet, ISUZU, Kenworth International®, CV International, Peterbilt, HINO, Freightliner®

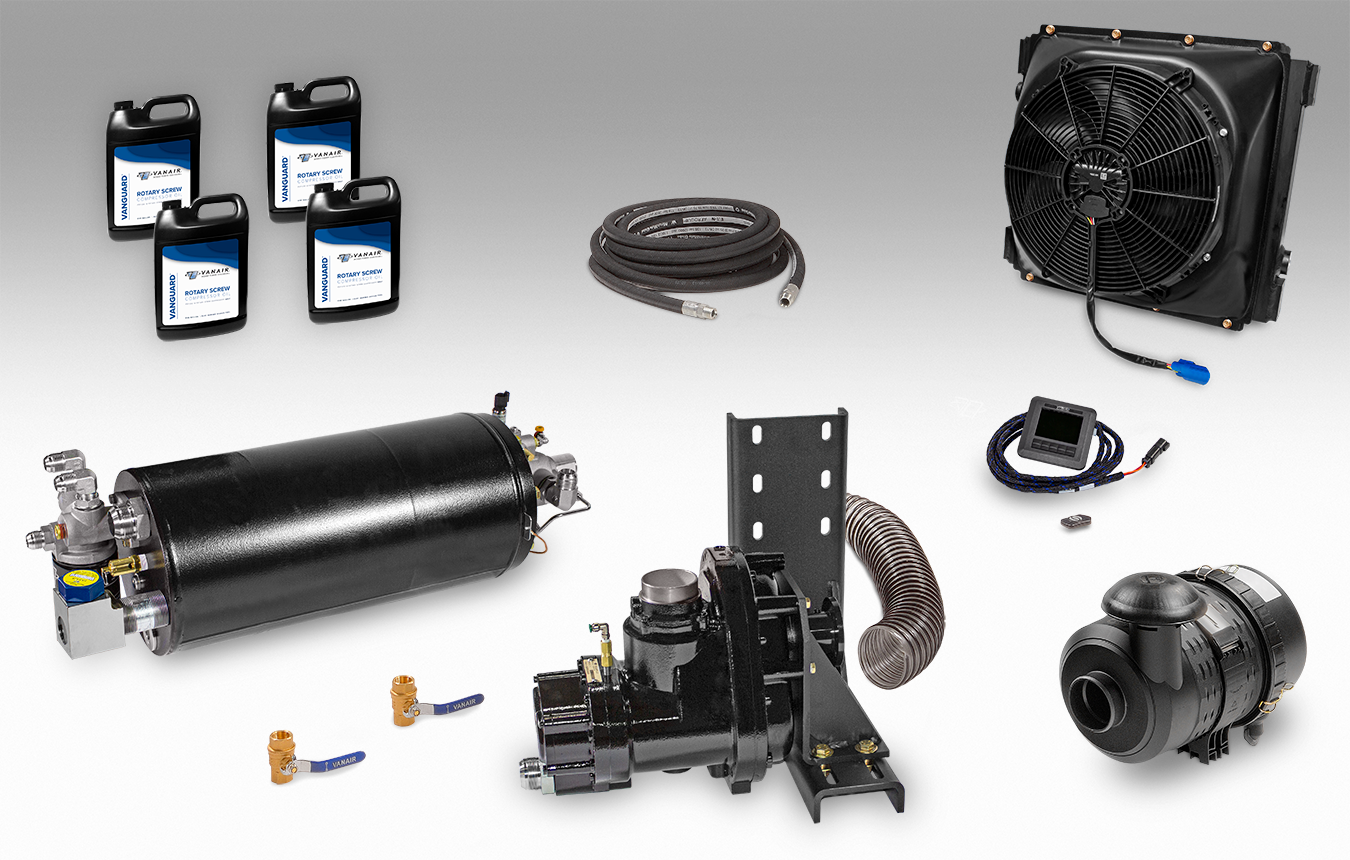

PTO Shaft Driven Air Compressor System – 60 to 300 CFM Kit

Shown 125 CFM Kit

Capacity (CFM)6085125160185200200300
Air (PSI)100-150100-150100-150100-150100-150100-150200250
Compressor Input (RPM)10301460133016751920207520752475
Oil Capacity (Gal.) Initial Fill2.52.52.52.52.52.52.510

Please consult Vanair® for overall space and air requirements.

Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.

Air Compressor

  • Lifetime Warranty on Air End
  • 100,000 Hours Design Life
  • 100% Duty Cycle
  • Greater Efficiency for Lower Engine RPMs
  • Integrated Inlet Valve and Rear Discharge Provides Higher Ground Clearance
  • Made in the USA

Discharge System

  • Intank Coalescer System Provides Greater Surface Area for Increased Oil Separation
  • Coalescer is Protected from the Elements, Eliminating the Possibility of Rust or Damage from External Source
  • Less Prescribed Maintenance and Waste Oil Recovery Costs
  • Less Than 2 PPM Oil Carryover
  • Pressure Rated to 250 PSIG
  • 5 Year Warranty or 3000 Hours for Replacement on Coalescer Element Only
  • Smaller Tank Design Makes Installation Easier
  • Streamlined Fittings on the End of Tank
  • ASMA and CRN Certified

Air Filter

  • ABS plastic housing
  • Dual stage

SAE B PAD

  • Limited to 77 Ft. Lbs.

Cooler(s)

  • Capable of Cooling Up to 200 CFM at Up to 175 PSI
  • Air to Oil Heat Exchanger Driven by 12V Fan

Instrumentation

Vanair® VTEC-II® Total Electronic Control System™

Diagnostic Monitoring Display Includes:

  • Remote Engine Speed Control
  • Built-In Safety Features
  • Complete Startup & Shutdown Capabilities
  • Oil Temperature & Air Pressure System Checks
  • Troubleshooting & Maintenance Display Assistance & Alerts
  • LCD

Vanguard™ Rotary Screw Compressor Oil

  • Full Synthetic Oil Exclusively Created for Rotary Screw Compressors
  • Flash Point: 257 °C/495 °F
  • Pour Point: -45 °C /-50 °F
  • Outstanding Thermal and Oxidative Stability
  • Reduced Oil Disposal Due to Extended Drain Intervals

Safety Equipment

  • High-Temperature Shutdown
  • High-Pressure Shutdown
  • Air Pressure-Relief Safety Valve
  • Minimum Pressure Valve
  • Automatic Blowdown on Shutdown
  • Oil Fill Plug Safety Relief

UltraLife® 6000 Hour Air/Oil Separator Element

  • Innovative design offers the lowest cost of ownership in the industry
  • Six times more life than the nearest competitor’s spin-on coalescer element
  • 15 times more life than an underhood design means the coalescer will last longer than the life cycle of your vehicle
  • Assured anti-static grounding system
  • This feature alone can save upwards of $2000.00 per truck in routine maintenance costs, over a 10-year period

FailSafe™ Dual Sensory Redundancy System

Patent pending

  •  Provides backup in case critical sensors fail
  • Virtually eliminates downtime for increased uptime
  • Seamlessly switches to back-up sensors without any interruption of the system’s operation
  • Standard on Xero™ air/oil separator tanks– optional, remote mount waterproof NEMA box
  • External, spin-on air-oil separating element
  • Dual pressure
  • Service/control line moisture separators
  • Filter/lubricator/regulator (FLR)
  • Air hoses, hose reels, and fittings
  • OSHA safety valve (velocity fuse)
  • Tool oiler/lubricator
  • Post drivers
  • Biodegradable Vanguard™ Green synthetic oil
  • Cold Weather Kit For Air Compressor – Single Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
  • Cold Weather Kit For Air Compressor – Dual Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
  • Air Aftercooler without Moisture Separator 125/200 CFM
  • Air Aftercooler with Moisture Separator 125/200 CFM
  • Service Airline De-Icer
  • Filter Lubricator Regulator (FLR) 1”
  • Hose Reel – for 3/4” Hose – 50’; Hose not included
  • Hose Reels: Vanair carries many different models (Call for configuration)
  • Moisture Separator (Service line)
  • OSHA Valve 132-148 CFM (Excess flow safety valve)
  • OSHA Valve 180-200 CFM (Excess flow safety valve) 3/4”
  • Tool Lubricator
  • ThermalGuard® Weather Protection Kit
  • FailSafe™ Dual Sensory Redundancy System
  • Optical Oil Level Sensor
Part DescriptionPart Number
Vanguard™ Premium Rotary Screw Oil (Four Pack)264626-4PACK
Vanguard™ Green Biodegradable Premium Rotary Screw Oil (Four Pack – One Gal.)264626-4GREEN
Initial 50 Hour Service Kit (Four Gal. of Vanguard™ Oil & Oil Filter)KIT1282
Vanguard™ Lifetime Warranty Service Kit (Four Gal. Vanguard™ Oil, Oil Filter and Air Filter)KIT1057-263931
Oil filter261991
Air filter element264266 or 263931
In-Tank coalesce260017-001 or 272339-004
Temp switch non V-TEC273786
V-TEC temp thermistor266844
Pressure switch non V-TEC262450
V-TEC transducer267363
Relay260246
Blowdown valve270807
Regulator valve262047
