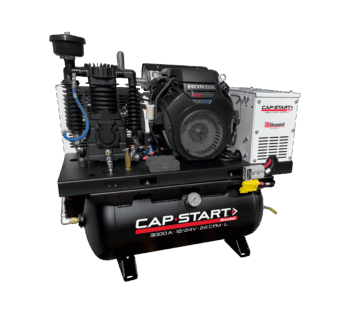

Cap-Start® 3000 + Air Light

The Fastest and Lightest Instantaneous Engine Starting System on The Market

The new lightweight, 30-gallon, Cap-Start® 3000 + Air Light allows you to rapidly start multiple vehicles in succession and provide the air power you need. Utilizing revolutionary Vanair® Fast Start and Vanair® Super Capacitor™ (VSC™) technology, Vanair’s Cap-Start® 3000 + Air Light provides you with instantaneous starting power for all your heavy-duty machinery, company fleets, and off-road vehicles, keeping you up and running. No more waiting for your batteries to charge — getting you back to work in mere seconds. The Cap-Start® 3000 + Air Light is the fastest vehicle starting system on the market, offering:

3000+ Amps of Instantaneous Starting Power
12/24V Charging and Starting Capabilities
24 CFM and Up to 175 PSIG of Air Power for All Your Pneumatic Tool Needs
240A Self-Regulating Alternator for Fast Recharging
Innovative Vanair® Super Capacitor™ (VSC™)

Get a Quote

Vanair® Features - Battery Charge, Engine Starting

Product Specifications


12/24V Starting	Up to 3240A of Starting Capability
DC Alternator	240A @ 12/24V
Compressor Type	Reciprocating
CFM Rating	24 CFM
Air Pressure	175 PSIG Max
Engine Type	22.1 HP Honda® IGX700 EFI ETB
Drive System	Dual V-Belt
Fuel Type	Gasoline
Fuel Capacity	Optional Remote 11-Gal. Tank

Dimensions with Fittings (In.):
45.7L x 22.8W x 25.4H | Dry Weight (Lbs.): 360 | Skid Mount
46.7L x 23.4W x 42.7H | Dry Weight (Lbs.): 479 | 30-Gallon Tank Mount

Machine Numbers

052230 — Cap-Start® 3000 + Air Light – 3000A, 12V/24V, 24 CFM Skid with Cold Weather, Honda®
052234 — Cap-Start® 3000 + Air Light – 3000A, 12/24V, 24 CFM Skid with Fuel/Cold Weather, Honda®
052232 — Cap-Start® 3000 + Air Light – 3000A, 12/24V, 24 CFM with 30-Gallon Cold Weather, Honda®
052236 — Cap-Start® 3000 + Air Light, 12/24V, 24 CFM with 30-Gallon Air Tank, 11-Gallon Fuel Tank, Cold Weather, Honda®

Special Features

Performance

Vanair® Super Capacitor™ (VSC™)
3000+ Amps Starting Capability
12/24V Charge/Start
240A Infinitely Variable Alternator
2-Stage Reciprocating Air Compressor
Up to 24 CFM and 175 PSIG
Unloader Valves
Electronic Fuel Injected Honda® 22.1 HP IGX700 EFI ETB
Automatic Electronic Throttle Control
Heavy-Duty Belt Drive System

Starting Cables

30 Feet of 3/0 Polar-Grade Starting Cable
UL/AWG Specification Compliant
Fine Stranded, Flexible Copper
Cold Weather Flexibility
Tangle Resistant
Chemical, Abrasion and Water Resistant
Extruded Polarity Stripe for Safety Identification

Control Panel

Color LED Digital Display
Engine Start/Stop Function
Hour Meter
Voltage and Amperage Output Display
Battery Charge/Start Mode Function
Integrated Fault Codes and Warnings
Fault Level (If Applicable)

Convenience

Fully Powder Coated Aluminum Enclosure
Aluminum Enclosure Around Electrical or Critical Components
3/16″ Thick Steel Frame
Optional Removable Lifting Eye
Easy Service Access

Safety

Weather Resistant Electrical Enclosure
Smart, Self-Regulating Charging System
Protect•All® Safety Technology and Fault Codes

Options/Accessories

Remote Panel Connection Harness in Multiple Lengths
Industrial 3/0 Polar-Grade Starting Cables (25, 30, 35 and 40 ft. Lengths)
Bumper/Remote-Mount Start Receptacles
Vibration Isolators
Remote Air Tanks
Remote Fuel Tank
Remote Battery Box and Battery Kits
Maintenance Kit

Cold Weather Kits
California CARB Compliance Kits
Remote Battery Box & Battery Kits
Cable Kits for Connection to Chassis Battery
Maintenance Kit
Cold Weather Kits
California CARB Compliance Kits

Parts

PART DESCIPTION	PART NUMBER
Engine Service Kit (Includes: 2 Quart Honda® Motor Oil, Fuel Filter, Pre-Air Filter, Air Filter, Oil Filter, & Inline Fuel Filter)	KIT1489
2 Quart Honda® Motor Oil	276041
Fuel Filter	381452-01
Pre-Air Filter	381452-02
Air Filter	381452-03
Oil Filter	283651
Inline Fuel Filter	RC81465
