Rugged, dependable, and easily transportable, the Vanair® Contractor provides you with 20 CFM of air power and 5kW of peak AC generator power for all your tough job site needs. Available with a control panel on the unit with two outlets or a remote mountable control panel for effortless and convenient accessibility.
Contractor Reciprocating Air Compressor with Generator
| Engine: | Kohler® 14 HP, Kohler® 19 HP, or Vanair® VNR680 20 HP |
| Compressor Type: | Reciprocating |
| Generator Wattage: | 4.2 kW Contiuous 120V/240V |
| Max Pressure PSI: | 150 PSI |
| CFM Rating: | 20 CFM |
| Air Storage Capacity: | 10 Gal., 30 Gal., or Skid |
| Drive System: | Dual V-Belt |
| Fuel Capacity: | Kohler® 14 HP – 1.9 Gal., Kohler® 19 HP – 11 Gal., or Vanair® VNR680 20 HP – 11 Gal. |
Contractor Unit Dimensions with fittings (In.):
- 51L x 18W x 22H – Skid Kohler® 14 HP
- 51L x 21W x 28H – 10 Gal. Kohler® 14 HP
- 51L x 20W x 38H – 30 Gal. Kohler® 14 HP
- 48L x 21W x 26H – Skid Kohler® 19 HP
- 48L x 22W x 43H – 30 Gal. Kohler® 19 HP
- 48L x 21W x 25H – Skid Vanair® 20 HP
- 48L x 22W x 42H – 30 Gal. Vanair® 20HP
Dry Weight (Lbs.): 304-550 Depending on Platform
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
- 050713 — Contractor – 20 CFM, 5kW, Skid Mount, Electric Start – 14 HP Kohler®
- 050711 — Contractor – 20 CFM, 5kW, 10-Gallon Air Tank, Electric Start – 14 HP Kohler®

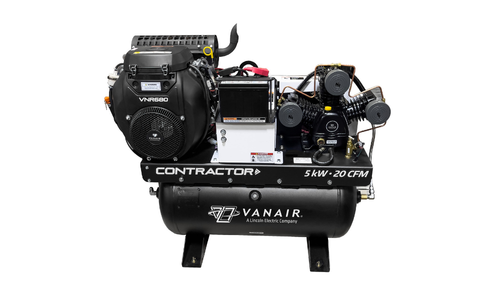

- 050712 — Contractor – 20 CFM, 5kW, 30-Gallon Air Tank, Electric Start – 14 HP Kohler®
- 050687 — Contractor – 20 CFM, 5kW, 30-Gallon Air Tank, Electric Start – 20 HP Kohler®

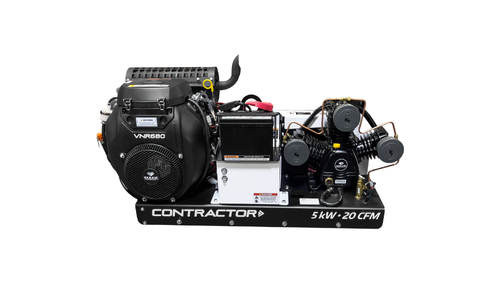

- 050688 — Contractor – 20 CFM, 5kW, Skid Mount, Electric Start – 20 HP Vanair®
PERFORMANCE/ FEATURES
- Auto Throttle Control on Air Compressor
- Reliable and Easy Starting Kohler® Engines
- Drive System Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
- Totally Self Contained, but can be Integrated with the Chassis for Maximum Versatility
- Integrated Lift Hook and Battery Tray
- Designed for Easy Maintenance and Fuel Efficiency
- Powder Coated Sheet Metal
- Galvannealed Steel
AIR COMPRESSOR
- Reciprocating Compressor
- 20 CFM
- 150 PSI Maximum
- Cast Iron Air Pump With 3 Cylinder Head Design For Better Cooling
GENERATOR
- 4.2 kW Continuous @ 60 Hz
- Independent AC Power for Safe Multi-Functioning
- Brushless
- Smooth Wave Power with Minimal Distortion
ENGINE
- Kohler® 14 HP with 1.9 Gal. Fuel Tank
- Kohler® 19 HP with 11 Gal. Fuel Tank
- Vanair® VNR680 20HP with 11 Gal. Fuel Tank
- Electric Start
REMOTE CONTROL PANEL*
*Kohler® 19 HP and Vanair® VNR680 20 HP Only
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Remote Panel. No Need to Jump in and out of Vehicle to Control Function
AVAILABLE IN:
- 10 Gallon, 30 Gallon or Remote Tank
- Remote Condensation Drain
- Cold Weather Kit
- Maintenance Kit
- Remote Mount Control Panel (Kohler® 19 HP and Vanair® VNR680 20 HP Only)
- Electric Fuel Pump (Kohler® 19 HP and Vanair® VNR680 20 HP Only)
- Slimline 11 Gal. Fuel Tank (Kohler® 19 HP and Vanair® VNR680 20 HP Only)
- Remote Air Tank Options
- Dry Cell Battery
- Hose Reels
- GFCI Outlet for Protection of 120V/240V
| Part Description | Part Number |
|---|---|
| VNR680 Initial 20 Hour, 100 Hour, or Annual Engine Service Kit | KIT1504 |
| Initial 20 Hour, 100 Hour, or Annual Compressor Maintenance Kit | KIT1156 |
| KOHLER® CH630 Every 100 Hour or Annual Engine Maintenance Kit | KIT1157 |
| KOHLER® CH440 Initial 20 Hour, 100 Hour, or Annual Engine Maintenance Kit | KIT1158 |
| KOHLER® Oil Filter | 262723 |
| KOHLER® Precleaner | 263675 |
| KOHLER® Air Filter Element Only | 274368 |
| Vanair® Engine Oil Filter | 283769-01 |
| VNR680 Air Filter Element Only | 283769-02 |
| VNR680 Spark Plug | 283769-03 |
| KOHLER® Fuel Filter | EN270163-01 |
| KOHLER® Precleaner | EN270163-03 |
| KOHLER® Spark Plug | EN270163-04 |
| KOHLER® Inline Fuel Filter | RC81465 |
| VNR680 Inline Fuel Filter | 283769-04 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallon | Air Reservoir Tank – 14 Gallon |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
