EPEQ® Power Center™

Fully Integrated. Fully Expandable. Fully Workday Ready.The Cornerstone of the EPEQ® Ecosystem

The EPEQ® Power Center™ is a fully integrated, 48V core power module designed to serve as the central hub of the EPEQ® electrified power ecosystem. Built around ELiMENT® LiFePO₄ battery technology, it combines batteries, inverter, DC-DC conversion, and shore-power charging into a single, pre-engineered enclosure. Connect and power the equipment that keeps your operation moving, including EPEQ® reciprocating and rotary screw compressors, EPTO hydraulic systems, and 48V accessories.

Designed for flexible installation in truck beds, van shelving, body compartments, or custom vehicle configurations, the Power Center™ simplifies upfitting while delivering scalable auxiliary power for modern work trucks.

Available with or without a protective enclosure, the Power Center™ reduces installation time and provides a streamlined entry into full fleet electrification.

Request Information

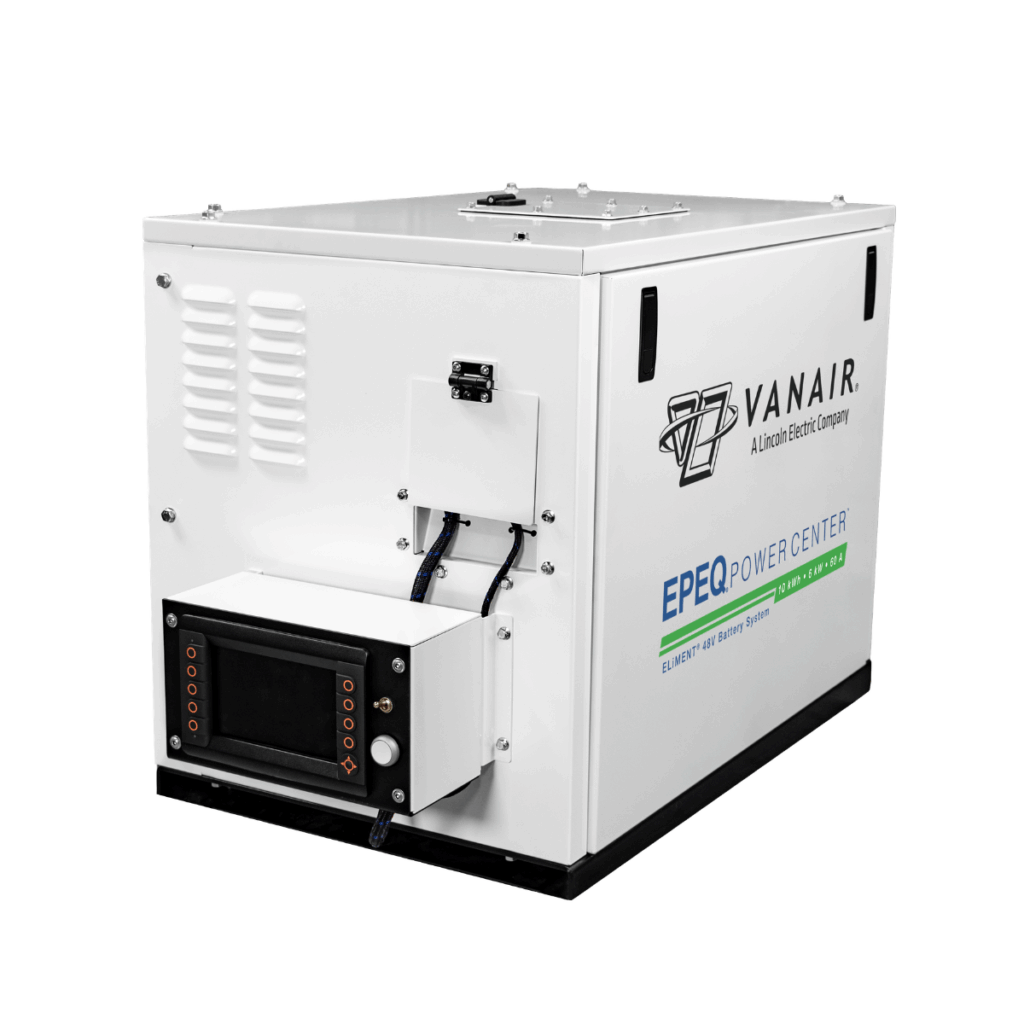

  • EPEQ® Power Center™

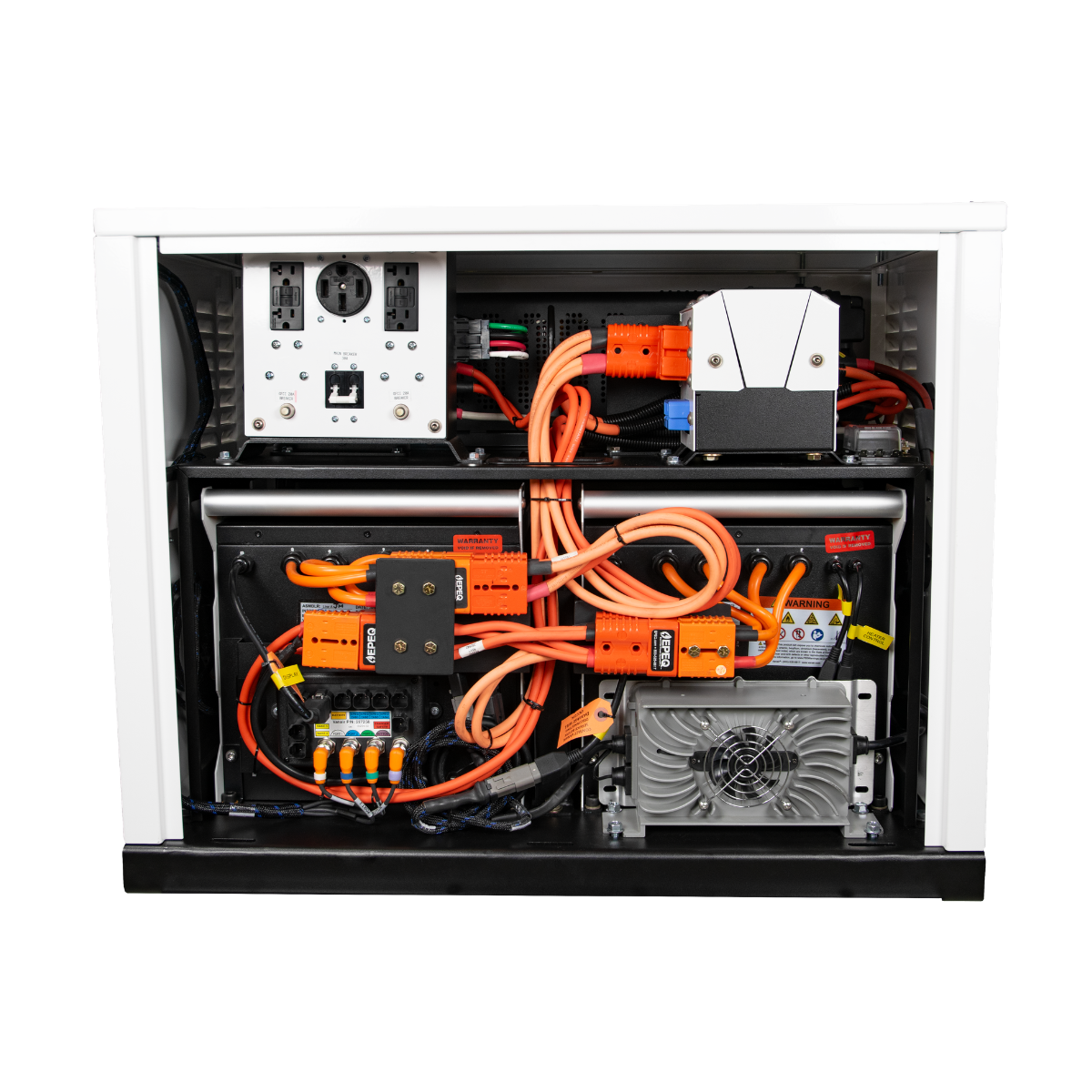

  • EPEQ® Power Center™ Interior

The images shown are for representation purposes only and may not reflect the actual product.

Why EPEQ® Power Center™?

✅ Centralized 48V power architecture
✅ Faster installation for upfitters
✅ Scalable electrification platform
✅ Reduced wiring complexity
✅ Compact footprint with high output
✅ Clean, quiet, battery-driven jobsite power

Product Specifications

Battery Capacity (Standard)

  • 10kWh ELiMENT® LiFePO₄ (2x 5kWh models, 100Ah, 48VDC)

AC Output

  • 6kW low-frequency split phase inverter
    • Up to 25A @ 240VAC
    • Up to 30A @ 120VAC

DC Output

  • 60A, 12VDC power
  • 48VDC system architecture

Operating Temperatures

  • 14°–120°F ambient

Dimensions

  • 33L x 21.4W x 26H

Weight

  • 418 lbs (without enclosure)
  • 485 lbs (with enclosure)

Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.

Vanair® reserves the right to make changes in engineering, design, and specifications, add improvements, or discontinue manufacturing at any time, without notice or obligation. Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. © 2026 All Rights Reserved.

Machine Numbers

  • 052615 – EPEQ® Power Center™, Enclosed
  • 062504 – EPEQ® Power Center™, Non-Enclosed

Special Features

SYSTEM OVERVIEW

Pre-Packaged Power Solution

  • Pre-integrated 6kW inverter system
  • Eliminates scatter mounting and complex upfitter wiring
  • Integrated PDM enables seamless external expansion with EPEQ® 48V products

Flexible Installation

  • Truck bed mounting
  • Van shelf mounting
  • Body cabinet installation
  • Exterior body mounting (enclosure required)
  • Internal cabinet applications (non-enclosed version)

ELECTRICAL & POWER DISTRIBUTION

AC Power

  • 120/240VAC auxiliary power panel (pre-wired; optional remote mount)
  • (2) NEMA 5-20, 120V, 20A, GFCI receptacles
  • (1) NEMA 14-50, 240V, 50A receptacle
  • (2) 120V, 20A, resettable thermal breakers
  • 30A resettable master breaker
  • Shore power charger (enclosed version includes standard charge port)

DC Power

  • 48–12VDC, 60A converter
  • 12VDC, 6-position fused distribution block (ATM mini fuses not included)
  • 12–48VDC, 20A converter charger

CONNECTIVITY & EXPANSION

The integrated PDM enhances system flexibility beyond the Power Center™, making it easy to scale with additional ELiMENT® Batteries & EPEQ® 48V accessories.

Anderson Connections

  • Blue SB350: EPEQ® EPTO, AIR45, external PDM, additional ELiMENT® Batteries
  • Orange SB175: EPEQ® AIR20 compressor

USER INTERFACE & SERVICEABILITY

  • 7” EPEQ® Smart Display panel
    • Remote or enclosure mount options
    • High/low toggle control for EPEQ® AIR20 compressor
    • On/off toggle control for EPEQ® inverter
  • Toolless enclosure access panels for simplified wiring routing (120/240VAC, 48VDC, 12VDC)
  • Integrated 2.0” eyelet lift bail for safe handling
