Vanair’s Genair® is an integrated rotary screw air compressor and weatherproof generator. Providing up to 185 CFM of air power and 9.6 kW of AC power. Eliminating the need for separate engine-driven air compressors, generators or power inverters, the Genair® is easily mounted to the truck’s frame rail. The Totally Enclosed, Fan Cooled (TEFC) generator has a high protection degree against dirt, grime and salt and is the ideal choice for harsh environments.

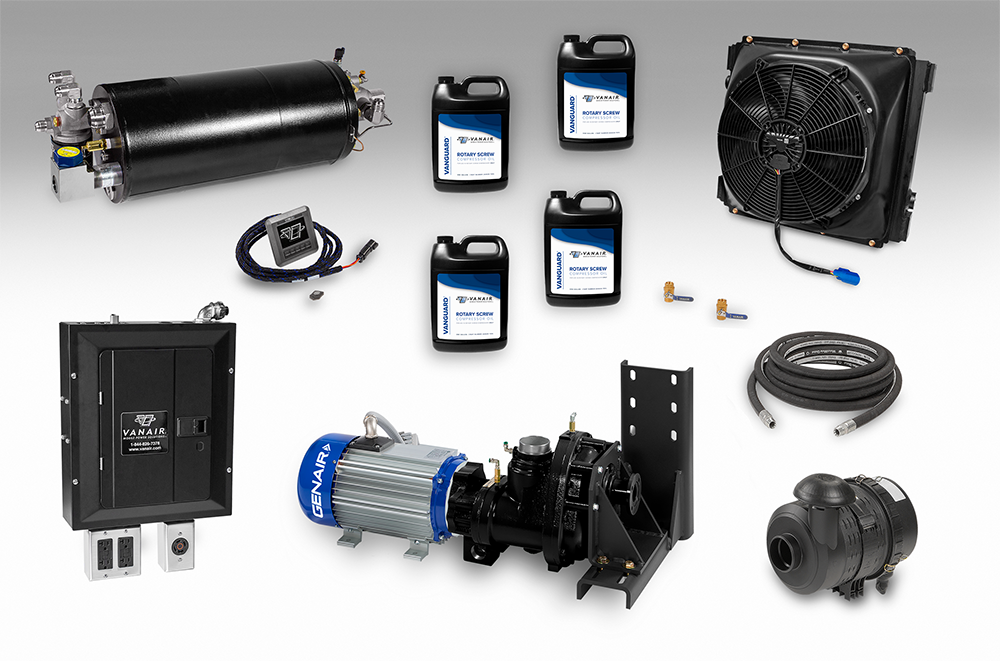

Genair® Rotary Screw Air Compressor/Generator System – 125 to 185 CFM

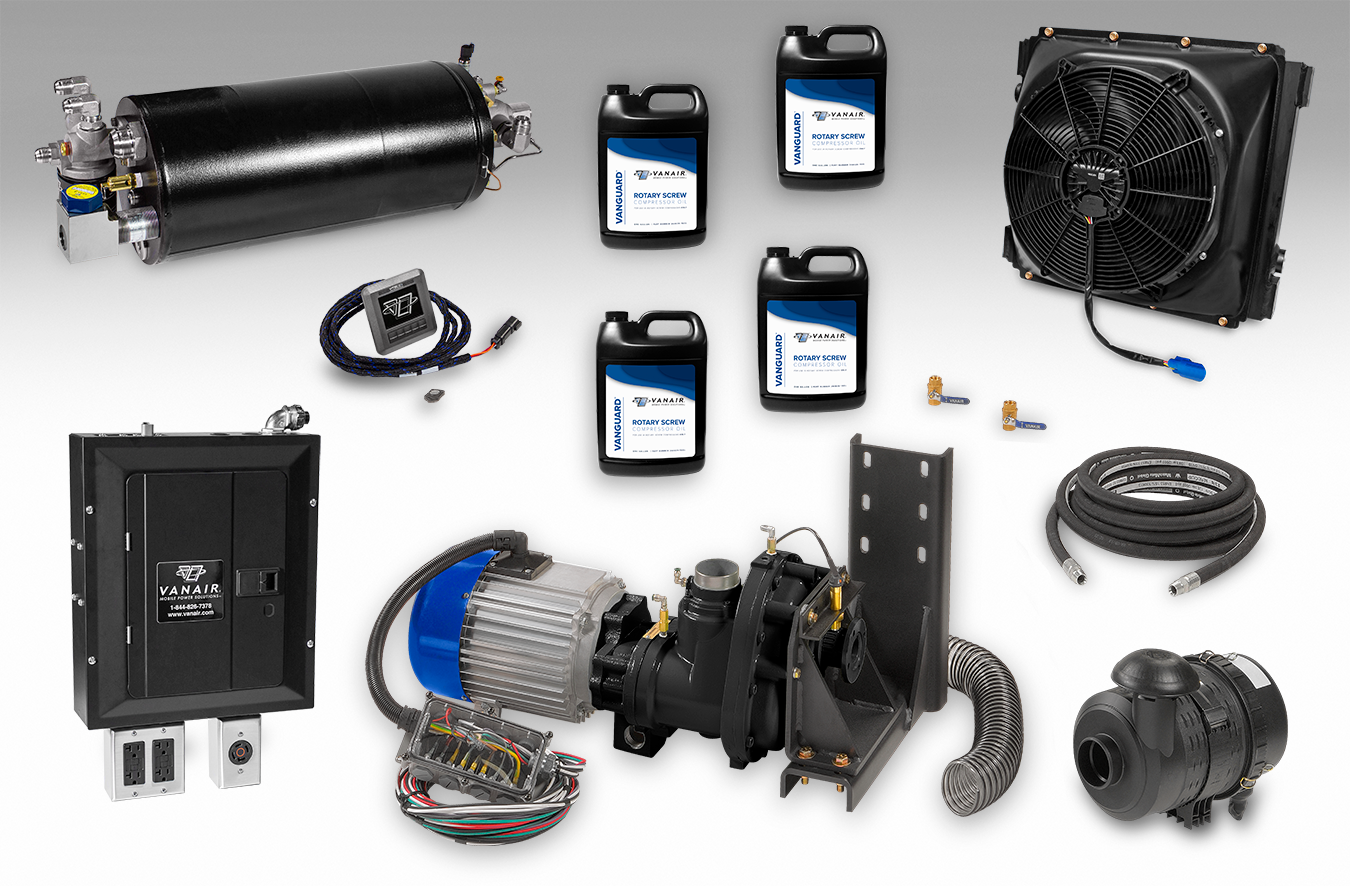

Shown 125 CFM and 6.6kW generator system
| Air Compressor | |||
|---|---|---|---|
| Capacity (CFM) | 125 | 160 | 185 |
| Air (PSI) | 100-150 | 100-150 | 100-150 |
| Compressor Input (RPM) | 1535 | 1880 | 2160 |
| Oil Capacity (Gal.) Initial Fill | 2.5 | 2.5 | 2.5 |
| Generator (TEFC) | ||
|---|---|---|
| Output (continuous) | 6.6 kW | 9.6 kW |
| Voltage | 120 or 120/240 | 120 or 120/240 |
| Phase | Single Phase | Single Phase |
| Speed | 3600 RPM | 3600 RPM |
| Protection Degree | IP54 | IP54 |
| Type | Brushless AVR | Brushless AVR |
Dimensions with fittings (In.) – 10D x 14.25L (6.6 kW), 16.25L (6.6 kW)
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Gear box dimensions with fittings (In.) – 14.75 H x 10.06 D
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Genair® – For All Makes and Models Excluding FORD® and RAM®
- G66C2 — 125 CFM @ 100/150 PSI; 160 CFM @ 100 PSI + 6.6 kW
- G66C3 — 160 CFM @ 150 PSI; 185 CFM @ 100/150 PSI + 6.6 kW
- G66C4 — 185 CFM @ 150 PSI + 6.6 kW – For Continuous Duty Use at 100°F Plus Ambient Conditions
- G66C4HP — 125 CFM/160 CFM/185 CFM @ 200 PSI
- G96C2 — 125 CFM @ 100/150 PSI; 160 CFM @ 100/150 PSI + 9.6 kW
- G96C3 — 160 CFM @ 150 PSI; 185 CFM @ 100 PSI + 9.6 kW
- G96C4 — 185 CFM @ 150 PSI + 9.6 kW – For Continuous Duty Use at 100°F Plus Ambient Conditions
- G96C4HP — 125 CFM/160 CFM/185 CFM @ 200 PSI
*Call Vanair® for body builder and transmission codes before ordering chassis.
Genair®- RAM® 3500/4500/5500 2WD Cab and Chassis
- G66C2R2WD — 125 CFM @ 100/150 PSI; 160 CFM @ 100 PSI + 6.6 kW
- G66C3R2WD — 160 CFM @ 150 PSI + 6.6 kW
- G66C4R2WD — 185 CFM @ 150/175 PSI + 6.6 kW – For Continuous Duty Use at 100°F Plus Ambient Conditions
- G96C2R2WD — 125 CFM @ 100/150 PSI; 160 CFM @ 100 PSI + 9.6 kW
- G96C3R2WD — 160 CFM @ 150 PSI + 9.6 kW; 185 CFM @ 100/150 PSI + 9.6 kW
- G96C4R2WD — 185 CFM @ 150/175 PSI + 9.6 kW – For Continuous Duty Use at 100°F Plus Ambient Conditions
Genair®- RAM® 3500/4500/5500 4WD Cab and Chassis
- G66C2R4WD — 125 CFM @ 100/150 PSI; 160 CFM @ 100 PSI + 6.6 kW
- G66C3R4WD — 160 CFM @ 150 PSI + 6.6 kW
- G66C4R4WD — 185 CFM @ 150/175 PSI + 6.6 kW – For Continuous Duty Use at 100°F Plus Ambient Conditions
- G96C2R4WD — 125 CFM @ 100/150 PSI; 160 CFM @ 100 PSI + 9.6 kW
- G96C3R4WD — 160 CFM @ 150 PSI + 9.6 kW; 185 CFM @ 100 PSI + 9.6 kW
- G96C4R4WD — 185 CFM @ 150/175 PSI + 9.6kW
Call Vanair® for body builder and transmission codes before ordering chassis.
Air Compressor
- Lifetime Warranty on Air End
- 100,000 Hours Design Life
- 100% Duty Cycle
- Greater Efficiency for Lower Engine RPMs
- Integrated Inlet Valve and Rear Discharge Provides Higher Ground Clearance
- Made in the USA
GENERATOR
- Totally Enclosed Fan Cooled Sealed Generator
- No Brushes for Maintenance-Free Operation
- Automatic Voltage Regulation (AVR) Regulates to Within ± 2%
- 6.6 kW to 9.6 kW Producing 120 or 120/240V at a Constant 60 Hz
- Ground Fault Circuits and Outlet Panels Available to Meet Your Needs
Discharge System
- Intank Coalescer System Provides Greater Surface Area for Increased Oil Separation
- Coalescer is Protected from the Elements, Eliminating the Possibility of Rust or Damage from External Source
- Less Prescribed Maintenance and Waste Oil Recovery Costs
- Less Than 2 PPM Oil Carryover
- Pressure Rated to 250 PSIG
- 5 Year Warranty or 3000 Hours for Replacement on Coalescer Element Only
- Smaller Tank Design Makes Installation Easier
- Streamlined Fittings on the End of Tank
- ASMA and CRN Certified
Air Filter
- ABS plastic housing
- Dual stage
SAE B PAD
- Limited to 77 Ft. Lbs.
Cooler(s)
- Capable of Cooling Up to 200 CFM at Up to 175 PSI
- Air to Oil Heat Exchanger Driven by 12V Fan
Instrumentation
Vanair® VTEC-II® Total Electronic Control System™
Diagnostic Monitoring Display Includes:
- Remote Engine Speed Control
- Built-In Safety Features
- Complete Startup & Shutdown Capabilities
- Oil Temperature & Air Pressure System Checks
- Troubleshooting & Maintenance Display Assistance & Alerts
- LCD
Vanguard™ Rotary Screw Compressor Oil
- Full Synthetic Oil Exclusively Created for Rotary Screw Compressors
- Flash Point: 257 °C/495 °F
- Pour Point: -45 °C /-50 °F
- Outstanding Thermal and Oxidative Stability
- Reduced Oil Disposal Due to Extended Drain Intervals
Safety Equipment
- High-Temperature Shutdown
- High-Pressure Shutdown
- Air Pressure-Relief Safety Valve
- Minimum Pressure Valve
- Automatic Blowdown on Shutdown
- Oil Fill Plug Safety Relief
UltraLife® 6000 Hour Air/Oil Separator Element
- Innovative design offers the lowest cost of ownership in the industry
- Six times more life than the nearest competitor’s spin-on coalescer element
- 15 times more life than an underhood design means the coalescer will last longer than the life cycle of your vehicle
- Assured anti-static grounding system
- This feature alone can save upwards of $2000.00 per truck in routine maintenance costs, over a 10-year period
FailSafe® Dual Sensory Redundancy System
Patented
- Provides backup in case critical sensors fail
- Virtually eliminates downtime for increased uptime
- Seamlessly switches to back-up sensors without any interruption of the system’s operation
- Standard on XERO® air/oil separator tanks– optional, remote mount waterproof NEMA box
- External, spin-on air-oil separating element
- Dual pressure
- Service/control line moisture separators
- Air hoses, hose reels, and fittings
- OSHA safety valve (velocity fuse)
- Sullair® air tools
- Tool oiler/lubricator
- Post drivers
- Dual Pressure Option 100/150 PSI
- Dual Voltage Option 120/240V 6.6 kW
- Dual Voltage Option 120/240V 9.6 kW
- Cold Weather Kit For Air Compressor – Single Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
- Cold Weather Kit For Air Compressor – Dual Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
- Initial 50 Hour Service Kit (Four Gal. of Vanguard™ Oil & Oil Filter)
- Vanguard™ Lifetime Warranty Service Kit (Four Gal. Vanguard™ Oil, Oil Filter and Air Filter)
- Air Aftercooler without Moisture Separator 125/200 CFM
- Air Aftercooler with Moisture Separator 125/200 CFM
- Service Airline De-Icer
- Filter Lubricator Regulator (FLR) 1”
- Hose Reel – for 3/4” Hose – 50’; Hose not included
- Hose Reels: Vanair carries many different models (Call for configuration)
- Moisture Separator (Service line)
- ThermalGuard® Weather Protection Kit
- Optical Oil Level Sensor
| Part Description | Part Number |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-263931 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-264266 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-264266-MAN |
| XERO® Tank Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-MAN |
| Initial 50 Hour Compressor Maintenance Kit | KIT1282 |
| XERO® Tank Initial 50 Hour Compressor Maintenance Kit | KIT1282-MAN |
| Vanair® Compressor Oil Filter | 261991 |
| Vanair® Compressor Air Filter Element Only | 263931 |
| Vanair® Compressor Air Filter Element Only | 264266 |
| 4 Gallons of Vanguard™ Green Biodegradable Rotary Screw Compressor Oil | 264626-4GREEN |
| 4 Gallons of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-4PACK |
| Vanair® Compressor Oil Filter | 280099 |
