Lightweight, space saving and cost effective, Vanair’s hydraulically-driven underdeck air compressor systems are ideal for vehicles that already have a built-in hydraulic system.

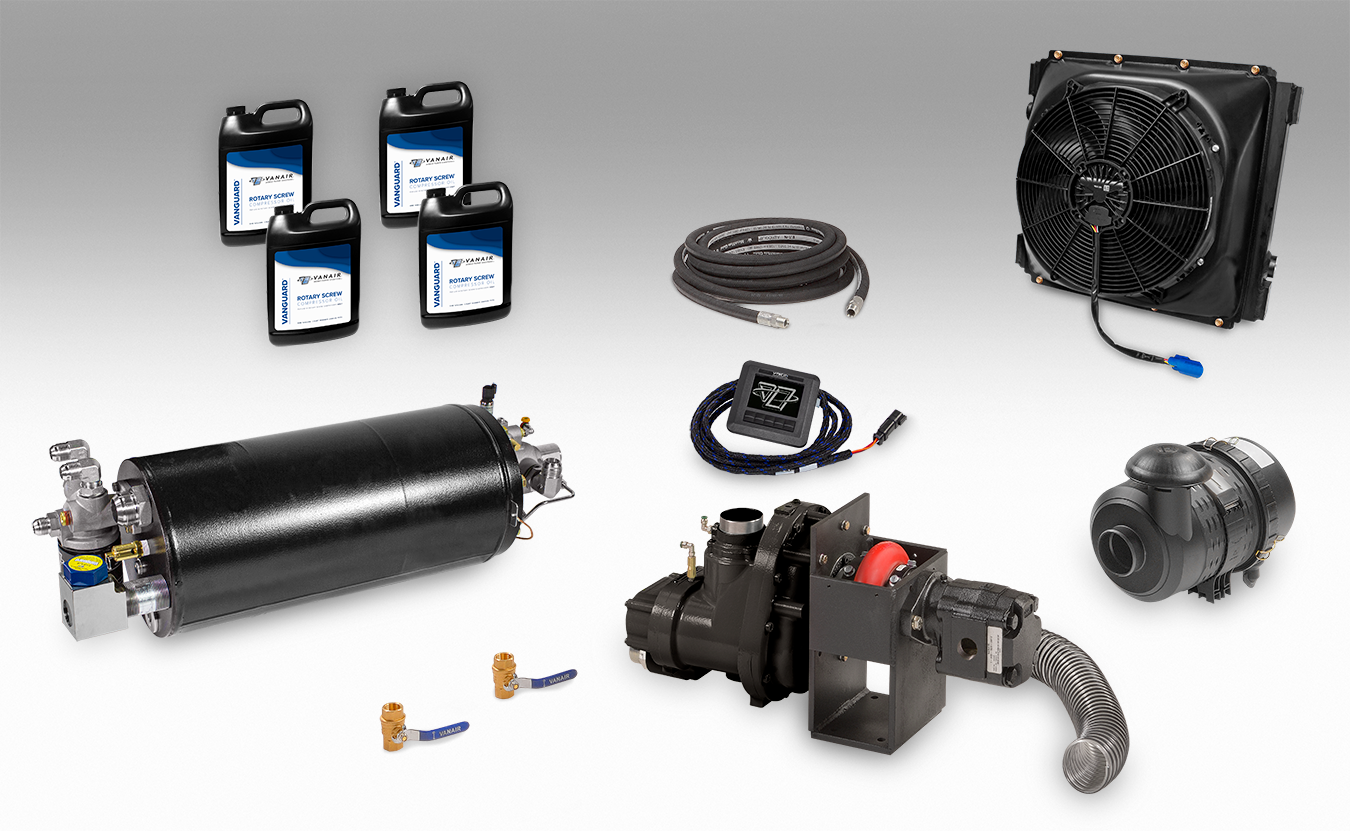

Hydraulic Driven Air Compressor System – 125 to 185 CFM-RAM® UDSM
No Room for a PTO Shaft-Driven System? Vanair’s Hydraulic Underdeck System Is Your Answer
| Capacity (CFM) | 125 | 160 | 185 |
| Air (PSI) | 100-150 | 100-150 | 100-150 |
| Hydraulic (GPM) | 27.6-29.2 | 36.8-38.3 | 42.2-44.2 |
| Hydraulic Pressure (PSI) | 2100-2620 | 2200-2700 | 2400-2830 |
| Oil Capacity (Gal.) Initial Fill | 2.5 | 2.5 | 2.5 |
Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Ratings above are approximate and are based on 120°F hydraulic fluid temperature. Add 400 PSI minimum to hydraulic requirements for hydraulic system continuous pressure ratings. Machine hydraulic relief valve is set at 3200 PSI. Consult Vanair® for specific details.
*150 PSI kit includes additional cooler. Consult factory for over 185 CFM.
**Consult Vanair® – 60 CFM & 85 CFM – Not available for FORD® models
Air Compressor
- Lifetime Warranty on Air End
- 100,000 Hours Design Life
- 100% Duty Cycle
- Greater Efficiency for Lower Engine RPMs
- Integrated Inlet Valve and Rear Discharge Provides Higher Ground Clearance
- Made in the USA
Discharge System
- Intank Coalescer System Provides Greater Surface Area for Increased Oil Separation
- Coalescer is Protected from the Elements, Eliminating the Possibility of Rust or Damage from External Source
- Less Prescribed Maintenance and Waste Oil Recovery Costs
- Less Than 2 PPM Oil Carryover
- Pressure Rated to 250 PSIG
- 5 Year Warranty or 3000 Hours for Replacement on Coalescer Element Only
- Smaller Tank Design Makes Installation Easier
- Streamlined Fittings on the End of Tank
- ASMA and CRN Certified
RAMDRIVE PLUS™ System
- Converted Transfer Case
- 1.25” Precision Ground Shaft with 5 ⁄16” Key
- Driveshaft Flange Bolts
- Re-usable Crate/packaging for Core Return
- High Speed Bearing
- Loctite Threadlocker
Air Filter
- ABS plastic housing
- Dual stage
SAE B PAD
- Limited to 77 Ft. Lbs.
Cooler(s)
- Capable of Cooling Up to 200 CFM at Up to 175 PSI
- Air to Oil Heat Exchanger Driven by 12V Fan
Instrumentation
Vanair® VTEC-II® Total Electronic Control System™
Diagnostic Monitoring Display Includes:
- Remote Engine Speed Control
- Built-In Safety Features
- Complete Startup & Shutdown Capabilities
- Oil Temperature & Air Pressure System Checks
- Troubleshooting & Maintenance Display Assistance & Alerts
- LCD
Vanguard™ Rotary Screw Compressor Oil
- Full Synthetic Oil Exclusively Created for Rotary Screw Compressors
- Flash Point: 257 °C/495 °F
- Pour Point: -45 °C /-50 °F
- Outstanding Thermal and Oxidative Stability
- Reduced Oil Disposal Due to Extended Drain Intervals
Safety Equipment
- High-Temperature Shutdown
- High-Pressure Shutdown
- Air Pressure-Relief Safety Valve
- Minimum Pressure Valve
- Automatic Blowdown on Shutdown
- Oil Fill Plug Safety Relief
- External, spin-on air-oil separating element
- Dual pressure
- Service/control line moisture separators
- Filter/lubricator/regulator (FLR)
- Air hoses, hose reels, and fittings
- OSHA safety valve (velocity fuse)
- Tool oiler/lubricator
- Post drivers
- Biodegradable Vanguard™ Green synthetic oil
- Cold Weather Kit For Air Compressor – Single Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
- Cold Weather Kit For Air Compressor – Dual Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
- Air Aftercooler without Moisture Separator 125/200 CFM
- Air Aftercooler with Moisture Separator 125/200 CFM
- Service Airline De-Icer
- Filter Lubricator Regulator (FLR) 1”
- Hose Reel – for 3/4” Hose – 50’; Hose not included
- Hose Reels: Vanair carries many different models (Call for configuration)
- Moisture Separator (Service line)
- OSHA Valve 132-148 CFM (Excess flow safety valve)
- OSHA Valve 180-200 CFM (Excess flow safety valve) 3/4”
- Tool Lubricator
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: the hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).
For more information please consult Vanair®.
| Part Description | Part Number |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-263931 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-264266 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-264266-MAN |
| XERO® Tank Every 500 Hour or Annual Compressor Maintenance Kit | KIT1057-MAN |
| Initial 50 Hour Compressor Maintenance Kit | KIT1282 |
| XERO® Tank Initial 50 Hour Compressor Maintenance Kit | KIT1282-MAN |
| Vanair® Compressor Oil Filter | 261991 |
| Vanair® Compressor Air Filter Element Only | 263931 |
| Vanair® Compressor Air Filter Element Only | 264266 |
| 4 Gallons of Vanguard™ Green Biodegradable Rotary Screw Compressor Oil | 264626-4GREEN |
| 4 Gallons of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-4PACK |
| Vanair® Compressor Oil Filter | 280099 |
