Air Vantage® 566X Diesel Engine Driven Welder/Generator

On Demand Versatility

This excellent, all-around welder/generator with a 60CFM air compressor is capable of up to 600A of DC multi-process welding and 120/240 VAC single phase and 240 VAC three phase auxiliary power. Powered by a 65.7 hp Deutz® TD2.9L4 diesel engine, it features patented CrossLinc® and Chopper Technology®.

Machine Number: K3242-3

What’s included:

  • (1) Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator
Get a Quote

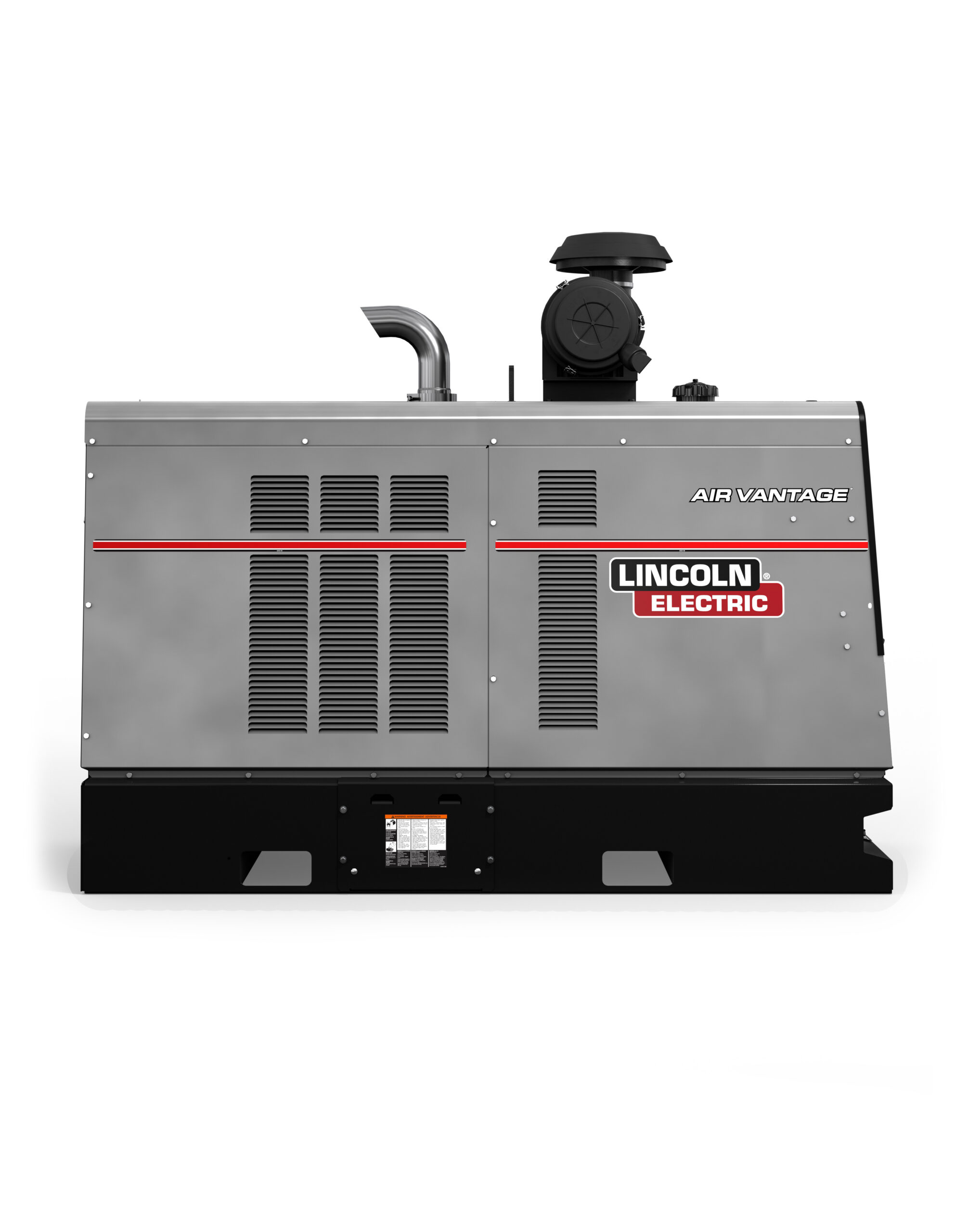

  • Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator

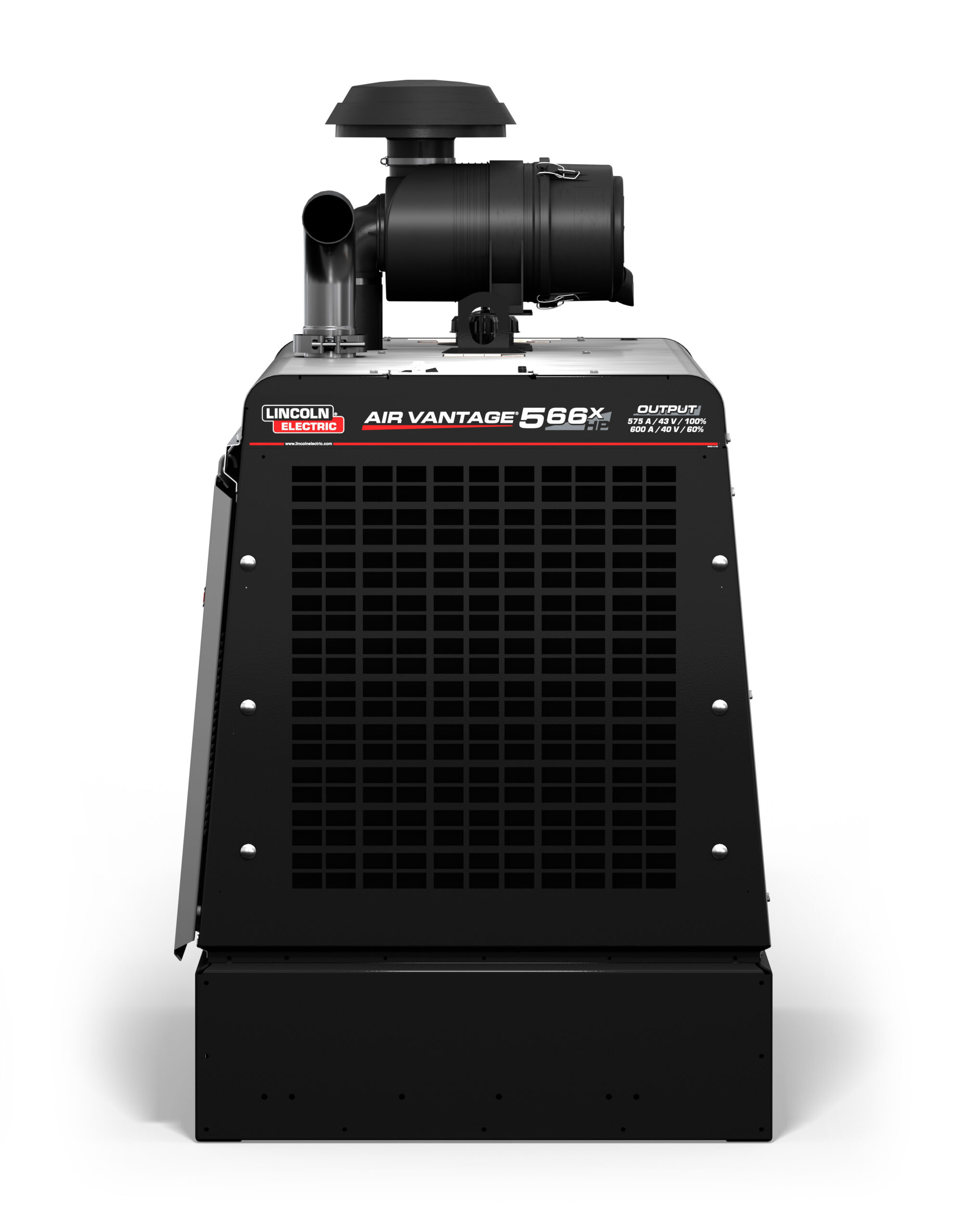

  • Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator

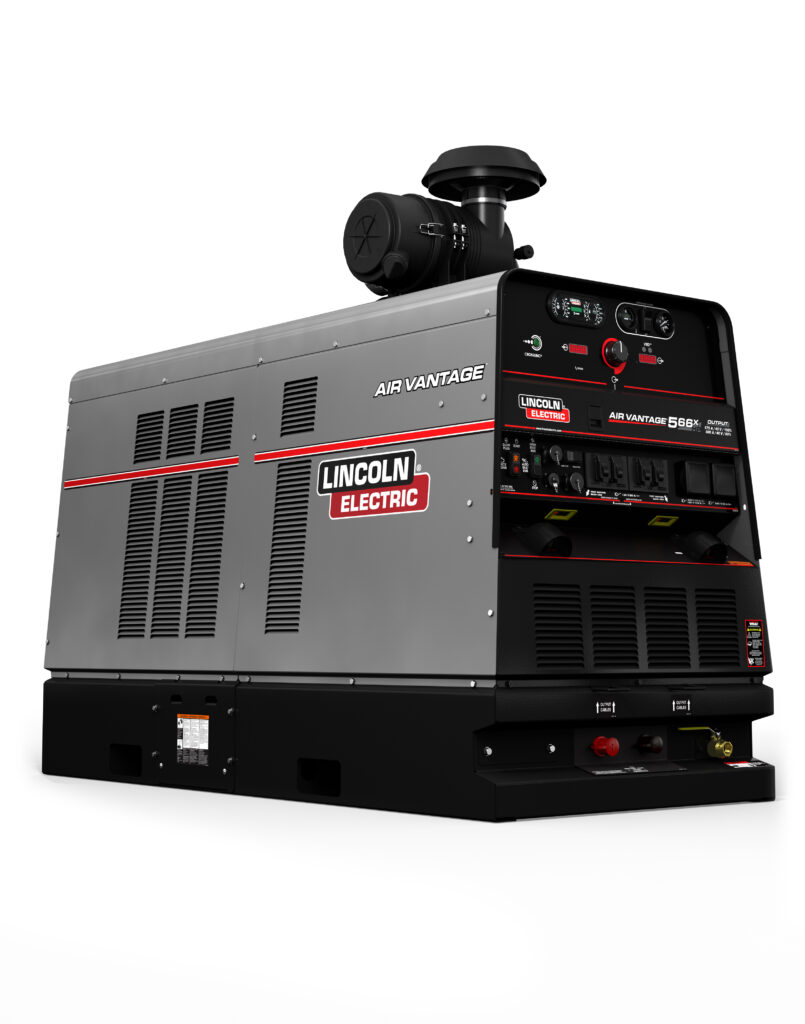

  • Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator

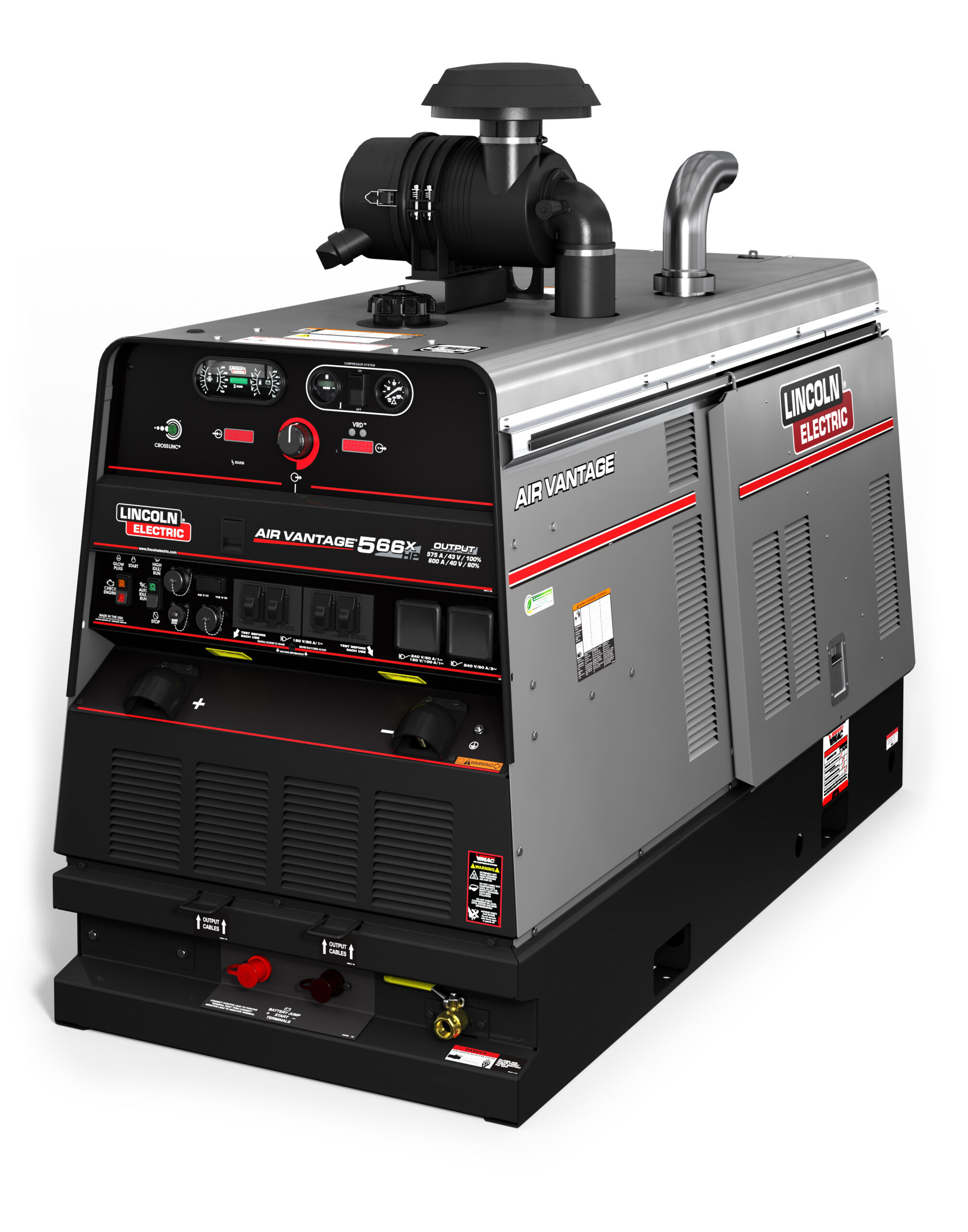

  • Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator

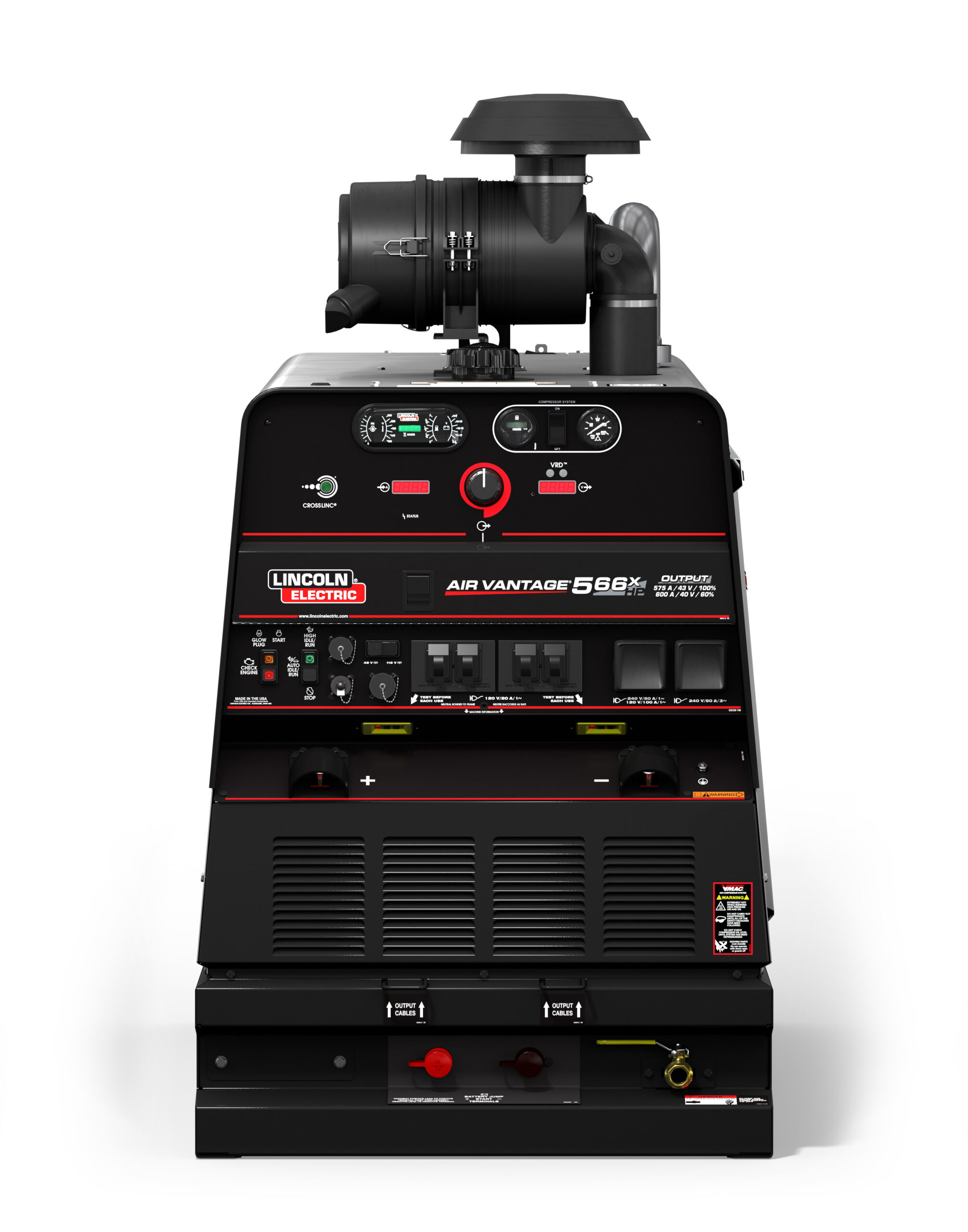

  • Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator

The images shown are for representation purposes only and may not reflect the actual product.

Product Specifications

Machine Processes:Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Submerged Arc (SAW)
Open Circuit Voltage:66 Peak OCV @ 1800 RPM
Single Phase Auxiliary Output:12,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output:20,000 Watts Continuous, 240V
Auxiliary Output Frequency:60 Hz
Receptacle Types:NEMA 5-20R, NEMA 14-50R, NEMA 15-50R
Engine Brand & Model:Deutz® TD2.9L4
Engine Description:4 Cylinder Turbocharged Water-Cooled Diesel Engine
Engine Horsepower:65.7 hp (49.0 kW)
Engine Block Size & Displacement:178 cu. in. (2.9 L), Bore x Stroke – 3.62 in. x 4.33 in. (92 mm x 110 mm)
Emissions Rating:US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output:1800 RPM
Low Idle Operating Speed:1525 RPM
Fuel Tank Size:25 gal., 94.6 L
Oil Capacity:9.0 qts., 8.5 L
Coolant Capacity: 2.5 gal., 9.5 L
Air Compressor Description:Belt-Driven Rotary Screw
Air Compressor Output:60 CFM @ 100 PSI (1.7 cmm @ 6.9 bar)
Air Compressor Max System Pressure:150 PSI (10.3 bar)
Air Compressor Protections:Safety Relief Valve, High Temp Shutdown at 290 °F (143 °C)
Air Compressor Oil Capacity:1.1 gal., 4.0 L
Warranty:3 Years Parts and Labor – Engine warranted separately by engine manufacturer

Unit Dimensions (In.): 42 L x 32.9 W x 69 D (1067 mm x 836 mm x 1753 mm)

Dry Weight: 1737 lbs. (788 kg)

Vanair®, the Vanair® logo and Mobile Power Solutions® are registered trademarks or trademarks of Vanair®, a Lincoln Electric Company, Michigan City, IN, USA. Lincoln Electric®, Vantage®, CrossLinc®, Chopper Technology®, and the Stacked Oval Logo are registered trademarks of The Lincoln Electric Company and its related companies. All trademarks and registered trademarks are the property of their respective owners.

Machine Technologies & Connections

IEC Rating:525A / 41V / 100% @ 104°F (40°C)
Output Range by Mode: CC-Stick: 30–600A, Downhill Pipe (CC): 40–350A, Touch Start TIG: 20–350A, CV-Wire: 10–45V, Arc Gouging: 60–600A
Rated Gouging Carbon Diameter:3/3/8″ (9.5 mm)
Machines Communication Technology:CrossLinc®, ArcLink®

Features

  • On Demand Versatility – Offers up to 600A (IEC rated at 525A) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
  • Generator Output – Provides up to 20kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
  • Integrated Air Compressor – 60 CFM @ 100 PSI of compressed air.
  • Patented Chopper® Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
  • Expanded Welding Capabilities – Utilize customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes. Features pulse welding capability for better arc control in out-of-position work and low heat input for critical welds.
  • CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
  • Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
  • Industrial Diesel Engine – Powered by a 65.7 hp, turbocharged Deutz® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.

Typical Applications

  • Construction
  • Mining
  • Railroad Maintenance
  • Construction & Field Erection
  • Maintenance & Repair
  • Offshore
  • Oil & Gas
  • Power Generation
  • Shipbuilding
  • Structural Fabrication
  • Structural Welding

Machine Numbers

  • K3242-3 — Air Vantage® 566X (Deutz®) Diesel Engine Driven Welder/Generator
