Mobile power when and where you need it. The versatile PowerFlex™ AE Gas offers the reliability and continuous air demand of a rotary screw compressor with the proven AC power of an integrated brushless generator for superior job site performance on or off the truck. The PowerFlex™ AE Gas is the ideal for general construction, monument engraving, service vehicles, and roadside repairs.

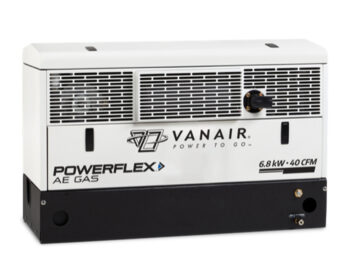

PowerFlex™ AE GAS
Powerful, portable air and generator power with dual functionality
| CFM Rating | Air Pressure | Compressor Type | AC Generator | Engine Type | Drive System | Fuel Type | Fuel Capacity |
|---|---|---|---|---|---|---|---|
| 40 CFM | 150 PSI | Rotary Screw | 6.8 KW @ 60 Hz, 120/240 V | 26.5 HP EFI Kohler®, Air Cooled | Belt Driven | Gas | Integrated 12 Gal. or Plumb to Chassis |
PowerFlex™ AE Unit Dimensions (In.): With Fittings: 47.6 L x 21.0 W x 30.9 H
Dry Weight (Lbs.): 675 with fuel tank, 630 without fuel tank
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligation.
- 051444 — PowerFlex™ AE Gas with Fuel Tank – 40 CFM, 6.8kW @ 60 Hz, 120/240V (Fuel Tank and Battery)
- 051445 — PowerFlex™ AE Gas without Fuel Tank – 40 CFM, 6.8kW @ 60 Hz, 120/240V (Utilizes Chassis Fuel and Battery)
AIR COMPRESSOR
- 40 CFM Rotary Screw Encapsulated Air End
- Belt-Driven, clutched
- Lifetime Warranty on Air End
- Integrated Inlet
- 4 gallon air storage
GENERATOR
- 6.8 KW Continuous @ 60 HZ
- Brushless
- Smooth Wave for Minimal Distortion
- Auto-tensioned belt
COOLING SYSTEM
- Air-To-Oil Compressor Cooler
- Ambient Operating Conditions from -20°F to 110°F
REMOTE CONTROL PANEL (HARNESS NOT INCLUDED)
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
- Filter/Lubricator/Regulator (FLR)
- Hose Reels and Fittings
- OSHA Safety Valve (Velocity Fuse)
- Post Drivers
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
BATTERY
- 12V sealed lead acid
MAINTENANCE/SERVICEABILITY
- Hinged Top and Removable Front Panel for Easy Access
- Spin On Air-Oil Separator Element for Easy Maintenance
CANOPY
- Powder-Coated Galvanneal Sheet Metal Enclosure
- Lifting Bail
SAFETY EQUIPMENT
- Low Engine Oil Shut Down
- Service Access Door Shut Down
- Engine Over Temperature Shut Down
- Air Pressure Safety Relief Valve and Automatic Blow-Down On Shut Down
- High-Temperature & High-Pressure Compressor Shut Down
- Oil Fill Plug Safety Relief
- Air Reservoir Tanks
- After Coolers
- Air Hoses
- Filter/Regulator/Lubricators
- Hose Reels
- OSHA Valves
- Moisture Separators
- Tool Oilers
- Air Tools
- Maintenance Kits
- Cold Weather Kit
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: the hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).
| Part Description | Part Number |
|---|---|
| KOHLER® ECH749 Every 100 Hour or Annual Engine Maintenance Kit | KIT1119 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| KOHLER® Air Filter | 262722 |
| KOHLER® Oil Filter | 262723 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| KOHLER® Precleaner | 263675 |
| KOHLER® Inline Fuel Filter | RC81465 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
