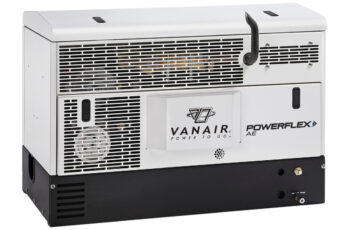

Vanair’s PowerFlex™ AE provides you with power anywhere you need it, while still complying with today’s anti-idling regulations. Featuring a 40 CFM rotary screw air compressor for air-on-demand that can power up to a 1” impact wrench and a 7kW generator for all your electric needs, the PowerFlex™ AE provides you with the tools to get the job done, with your truck’s engine turned off.
PowerFlex™ AE
| CFM Rating | AC Generator | Engine Type | Fuel Type | Air Pressure | Compressor Type | Drive System | Fuel Capacity |
|---|---|---|---|---|---|---|---|
| 40 CFM @ High Speed | 6.8 kW @ 60 Hz 120 / 240V | 25 HP Kubota® Tier 4 Final | Diesel | 150 PSI | Rotary Screw | Belt Driven | Integrated 12 Gallon or Plumb to Chassis |
Dimensions with fittings (In.) – 47.6 L x 21.0 W x 33.4 H*
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Dry weight (Lbs.) – 790
*Ratings are approximate and are based on 120° F hydraulic fluid temperature. Hydraulic relief valve is set at 3300 PSI. Consult Vanair for specific details.
- Electrical 12v DC
- Side-mount or bed-mounted
- Powder coated, galvanneal sheet metal enclosure
- Operating conditions are -20° to +110° F
- 1/2″FNPT Air Discharge
- Encapsulated oil-injected rotary screw
- Vanair® Lifetime Warranty on air end
- Spin-on air-oil separated element
- On-off solenoid valve
- Air-to-oil compressor fluid cooler
- Integrated inlet valve
AIR COMPRESSOR
-
40 CFM Rotary Screw Encapsulated Air End
-
Belt-Driven
-
Lifetime Warranty on Air End
-
Integrated Inlet
GENERATOR
- 6.8 kW Continuous @ 60 HZ
-
Brushless
-
Smooth Wave for Minimal Distortion
COOLING SYSTEM
-
Air-To-Oil Compressor Cooler
-
Ambient Operating Conditions from -20°F to 110°F
REMOTE CONTROL PANEL (HARNESS NOT INCLUDED)
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
- Filter/Lubricator/Regulator (FLR)
- Hose Reels and Fittings
- OSHA Safety Valve (Velocity Fuse)
- Post Drivers
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
MAINTENANCE/SERVICEABILITY
-
Hinged Top and Removable Front Panel for Easy Access
-
Spin On Air-Oil Separator Element for Easy Maintenance
CANOPY
-
Powder-Coated Galvanneal Sheet Metal Enclosure
-
Lifting Bail
SAFETY EQUIPMENT
-
Low Engine Oil Shut Down
-
Alternator Failure Indicator
-
Service Access Door Shut Down
-
Engine Over Temperature Shut Down
-
Air Pressure Safety Relief Valve and Automatic Blow-Down On Shut Down
-
High-Temperature & High-Pressure Compressor Shut Down
-
Oil Fill Plug Safety Relief
- Air Reservoir Tanks
- After Coolers
- Air Hoses
- Filter/Regulator/Lubricators
- Hose Reels
- OSHA Valves
- Moisture Separators
- Tool Oilers
- Air Tools
- Maintenance Kits
- Battery Harness
* All tanks include a drain, check & pressure relief valve.
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: the hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).
| Part Description | Part Number |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| KUBOTA™ D902 Every 200 Hour or Annual Engine Maintenance Kit | KIT1154-01 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| KUBOTA™ Inline Fuel Filter | 280724 |
| Vanair® Compressor/Engine Air Filter Element Only | 276688-002 |
| KUBOTA® Spin-On Fuel Filter | EN273303-01 |
| KUBOTA® Inline Fuel Filter | RC276268 |
| KUBOTA® Fuel Filter Element Only | RC77662 |
| KUBOTA® Oil Filter | EN38480 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Fuel Tank Assembly, Diesel, Slimline 11 Gallon, Fuel Gauge Sender | OA032930 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
