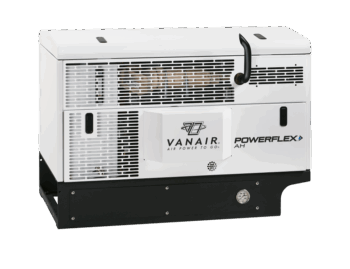

Like its counterpart, the PowerFlex™ AH is equipped with a 40 CFM at 150 PSI rotary screw air compressor, but instead of a generator it is equipped with a hydraulic pump, providing 13 GPM and up to 3000 PSI with an integrated hydraulic reservoir. Tier 4 Final compliant, the PowerFlex™ AH is small enough to fit in a variety of load spaces.
PowerFlex™ AH
| Compressor Type: | Rotary Screw |
| Capacity (CFM): | 40 CFM |
| Air Pressure (PSI): | 150 PSI |
| Hydraulic Flow*: | Up to 13 GPM |
| Hydraulic Pressure*: | Up to 3000 PSI |
| Engine Type: | 25 HP Kubota® Tier 4 Final |
| Drive System: | Belt Driven |
| Fuel Type: | Diesel |
| Fuel Capacity: | Tied to Chassis or Remote Tank |
Dimensions with fittings (In.) – 47.6 L x 21.0 W x 33.4 H*
Dry weight (Lbs.) – 802
*Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligation.
Ratings are approximate and are based on 120° F hydraulic fluid temperature. Hydraulic relief valve is set at 3300 PSI. Consult Vanair® for specific details.
- Small, Compact Design
- Can Be Side-Mounted or Bed-Mounted
- Can Power a Separate Cab Climate Control System
Air Compressor
- 40 CFM Rotary Screw Encapsulated Air End
- Belt-Driven Encapsulated Air End
- Lifetime Warranty on Air End
- Integrated Inlet
Hydraulics
- Rated @ 10.5 RPM @ 2000 PSI and 8.5 RPM @ 3000 PSI
- Variable Displacement Pump
Canopy
- Small, Compact Design
- Powder-Coated, Galvanneal Sheet Metal Enclosure
Remote Control Panel
- Engine Start/Stop
- Engine Fault Lights
- Hour Meter
- Compressor/Hydraulic ON/OFF Switch
- Speed Control Switch
- Compressor Fault Light
Maintenance/Serviceability
- Hinged Top and Removable Front Panel for Easy Access
- Spin-On Air/Oil Separator Element for Easy Maintenance
Safety Equipment
- Low Engine Oil Shut Down
- Alternator Failure Indicator
- Service Access Door Shut Down
- Engine Over Temp Shut Down
- Air Pressure Safety Relief Valve and Automatic Blow-Down on Shut Down
- High-Temperature and High-Pressure Compressor Shut Down
- Oil Fill Plug Safety Relief
- Hydraulic Oil Pressure-Relief Valve
- Air Reservoirs
- Aftercoolers
- Air Hoses
- Filter/Lubricator/Regulator (FLR)
- Hose Reels
- Moisture Separators
- Tool Oilers
- Air Tools
- Maintenance Kits
- Receptacles
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: the hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).
Shop the Vanair® Parts Store
| Part Description | Part Number |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| KUBOTA® D902 Every 200 Hour or Annual Engine Maintenance Kit | KIT1154-01 |
| Initial 50 Hours Service Kit (One Gal. of Vanguard™ Oil & Oil Filter) | KIT1285 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| KUBOTA® Inline Fuel Filter | 280724 |
| Vanair® Compressor/Engine Air Filter Element Only | 276688-002 |
| KUBOTA® Spin-On Fuel Filter | EN273303-01 |
| KUBOTA® Inline Fuel Filter | RC276268 |
| KUBOTA® Fuel Filter Element Only | RC77662 |
| KUBOTA® Oil Filter | EN38480 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Fuel Tank Assembly, Diesel, Slimline 11 Gallon, Fuel Gauge Sender | OA032930 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
