Vanair’s PRO 35 reciprocating compressor package was developed to meet the demands of customers that need the convenience of mobile air at an economical cost. Designed to provide rugged, powerful, and dependable performance. These compressors are a perfect fit for the mechanic, service, agriculture, and contractor markets.

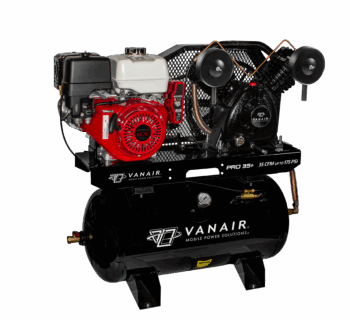

PRO 35 Reciprocating Air Compressor Series
| Compressor Type | Reciprocating |
| CFM @ 100 PSI: | 35 CFM |
| Air Pressure: | 175 PSI |
| Receiver Capacity: | 30 Gal. |
| Engine Type: | 11.7 HP Honda® GX390 Electric Start* |
| Fuel Capacity | 1.6 Gal. |
PRO 35 Unit Dimensions with fittings (In.):
47L x 19W x 43H 30 Gal.
Dry Weight (Lbs.): 460
* Battery Not Included
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
- 051956 — PRO 35 – 35 CFM, Skid Mount, Electric Start – 11 HP Honda®*
- 051935 — PRO 35 – 35 CFM, 30-Gallon Air Tank, Electric Start – 11 HP Honda®*
*Note: PRO models do not include a battery. Battery kits are available.
AIR COMPRESSOR
- Reciprocating
- 35 CFM, Up to 175 PSIG
- 2-Cylinder
- Single Stage
ENGINE
- 11.7 HP Honda® GX390
- Electric Start with Recoil Back-up
- 1.6 Gal. Fuel Tank
- Gasoline Fuel
INSTRUMENTATION
- Air Pressure Gauge
- Remote Air Tanks
- Vibration Isolators
- Maintenance Kits
- Remote Start
- Service/Control Line Moisture Separators
- Filter/Lubricator/Regulator
- Air Hoses, Hose Reels, and Fittings
- OSHA Safety Valve (velocity fuse)
- Tool Oiler/Lubricator
- Battery
- Remote Condensation Drain
MAINTENANCE
- Easy Service Access
| Part Description | Part Number |
|---|---|
| Initial 20 Hour, 100 Hour, or Annual PRO35 Compressor Maintenance Kit | KIT1169 |
| Initial 20 Hour, 100 Hour, or Annual Compressor Maintenance Kit | KIT1441 |
| KOHLER® CH395/CH440 Initial 20 Hour, 100 Hour, or Annual Engine Maintenance Kit | KIT1446 |
| HONDA® GX270/GX390 Initial 20 Hour, 100 Hour, or Every 6 Months Engine Maintenance Kit | KIT1447 |
| HONDA® Spark Plug | 272316 |
| HONDA® Air Filter Element Only | 272317 |
| KOHLER® Precleaner | EN270163-03 |
| KOHLER® Spark Plug | EN270163-04 |
