Vanair® once again is listening and meeting the demands of the marketplace with the introduction of the new Reliant™ RS45 air compressor; the most powerful, lightweight system in its class. At 45% less weight than its predecessor, the RS45’s featherweight rust-proof aluminum canopy reduces truck weight and fuel consumption. Providing an impressive 45 CFM and up to 175 PSI of on-demand air power at 100% duty cycle, the RS45 has the highest CFM rating in its class. Advanced sound attenuation technology has significantly reduced the sound level by 50% on the machine. Quieter, lighter and more powerful, the RS45 will meet your toughest challenges out in the field.

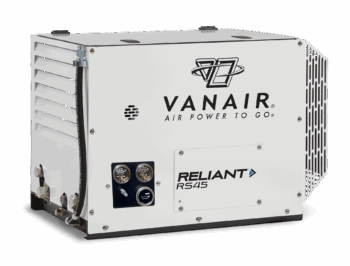

Reliant™ RS45 Hydraulic Driven Air Compressor
| Capacity (CFM) | Air Pressure (PSI) | Hydraulic Flow (GPM) | Hydraulic Pressure (PSI) |
|---|---|---|---|
| 30 | 100 | 7 | 1950 |
| 30 | 125 | 7.2 | 2175 |
| 30 | 150 | 7.3 | 2375 |
| 35 | 100 | 8.4 | 2000 |
| 35 | 125 | 8.4 | 2200 |
| 35 | 150 | 8.6 | 2450 |
| 40 | 100 | 9.6 | 2050 |
| 40 | 125 | 9.7 | 2250 |
| 40 | 150 | 9.8 | 2475 |
| 45 | 100 | 11 | 2150 |
| 45 | 125 | 11.1 | 2350 |
| 45 | 150 | 11.2 | 2550 |
Contact Vanair® for 175 PSI systems.
Compressor dimensions with fittings (In.) – 35.3L x 21W x 22.81H
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Dry Weight (Lbs.) – 195
Ratings are approximate and are based on 120˚F hydraulic fluid temperature. Add 400 PSI minimum to hydraulic requirements for hydraulic system continuous pressure ratings. The RS45 hydraulic relief valve is set at 3200 PSI. Consult Vanair® for specific details.
- 052095 — Reliant™ RS45 – Rotary Screw, 30-45 CFM, Open Center*
- 052097 — Reliant™ RS45 – Rotary Screw, 30-45 CFM, Open Center with Cold Weather*
*Models also available in 24V DC and closed center. Contact Vanair® Customer Service.
PERFORMANCE/FEATURES
- 30-45 CFM and Up to 150 PSI
- Lightweight – Only 195 lbs
- 12V DC Model Available
ENCAPSULATED AIR COMPRESSOR
- Rotary Screw Air Compressor
- Bolt-On Electric Inlet Valve
- Integral Air-to-Oil Separator Tank
- Lifetime Warranty on Air End
AIR-TO-OIL COOLER
- Capable of Cooling Up to 175 PSI
- Ambient Operating Range of -20 ˚F to + 125 ˚F
HYDRAULIC COOLER
- Integrated Cooler Reduces Heat in Truck Hydraulic System
HYDRAULICS
- Gear-Type Motor
- Hydraulic Oil In – 3/4” 37 Degree JIC #12)
- Hydraulic Oil Out – 1” 37 Degree JIC (#16)
- Open Center or Closed Center
- Hydraulic Case Drain – 3/8” 37 Degree JIC (#6)
- Hydraulic Load Sense Line – 1/4” 37 Degree JIC (#4)*
INSTRUMENTATION
- Conveniently Located and Easy to Read or Remote Mountable
SAFETY EQUIPMENT
- Air Pressure Relief Safety Valve
- Hydraulic Oil Pressure Relief Valve
- Automatic Blow-Down on Shutdown
- High-Temperature and High-Pressure
- Compressor Shutdown
- Oil Fill Plug Safety Relief
SERVICEABILITY/CONVENIENCE
- Reversible Hinged Hood and Oil Fill Service
- Access Panel for Easy Accessibility
- JIC Fittings on Front of Machine for Hydraulic and Air Connections for Convenience
CANOPY
- Lightweight Powder-Coated Aluminum Sheet Metal Enclosure
- Single Point Lifting Bail
- 20 – 60 Gallon Air Reservoirs
- Aftercoolers
- Air Hoses
- Air Tools
- Hose Reels and Fittings
- OSHA Excess Flow Safety Valve
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
- Service Airline De-Icer
- Filter Regulator Lubricator (FRL) 1/2”
- 24 VDC to 12VDC Converter; IP68 Rated (Required When Installing on a 24VDC Chassis)
*Load sense line for closed center hydraulic system only.
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: The hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).
For more information please consult Vanair®.
| Part Description | Part Number |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallon | 032708 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
