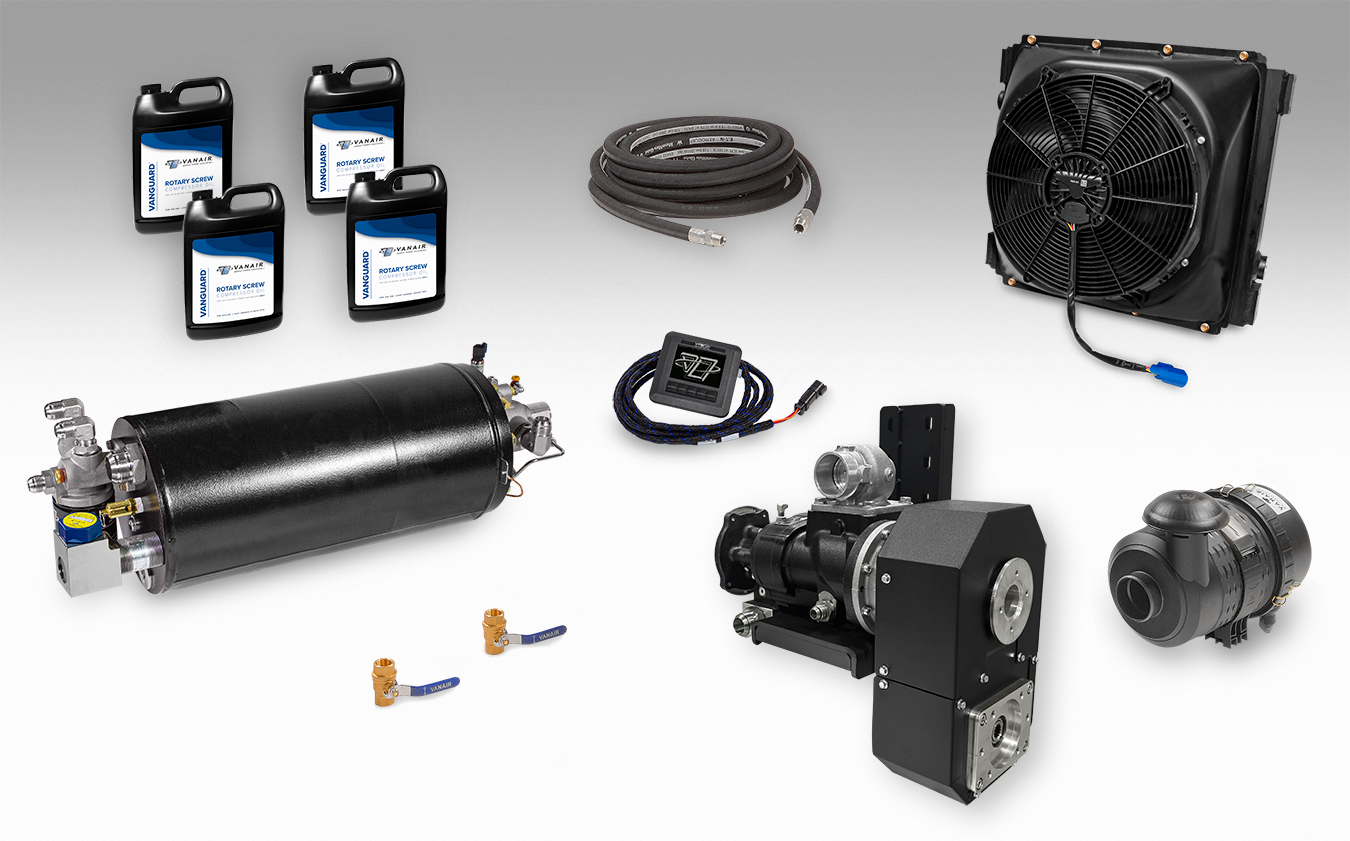

V2™ Multi-Drive Air Compressor/Hydraulic Pump Pad System – Ford®

Air Compressor

• Lifetime Warranty on Air End
• 100,000 Hours Design Life
• 100% Duty Cycle
• Greater Efficiency for Lower Engine RPMs

Discharge System

• Intank Coalescer System Provides Greater Surface Area for Increased Oil Separation
• Coalescer is Protected from the Elements, Eliminating the Possibility of Rust or Damage from External Source
• Less Prescribed Maintenance and Waste Oil Recovery Costs
• Less Than 2 PPM Oil Carryover
• Pressure Rated to 250 PSIG
• 5 Year Warranty or 3000 Hours for Replacement on Coalescer Element Only
• Smaller Tank Design Makes Installation Easier
• Streamlined Fittings on the End of Tank
• ASMA and CRN Certified

THRU-DRIVE™ System

• Factory Converted Transfer Case
• 1310 PTO to Shaft Universal Joint / Coupling
• 1.25” Precision Ground Shaft with 5/16” Keys
• New Replacement Driveshaft Flange Bolts
• Re-usable Crate/Packaging for Core Transfer Case Return
• High Speed Bearing
• 5 Year / 60,000 Mile Warranty

Air Filter

• ABS plastic housing
• Dual stage

SAE B PAD

• Limited to 77 Ft. Lbs.

Cooler(s)

• Capable of Cooling Up to 185 CFM at Up to 175 PSI
• Air to Oil Heat Exchanger Driven by 12V Fan

Instrumentation

Vanair® VTEC-II® Total Electronic Control System™

Diagnostic Monitoring Display Includes:

• Remote Engine Speed Control
• Built-In Safety Features
• Complete Startup & Shutdown Capabilities
• Oil Temperature & Air Pressure System Checks
• Troubleshooting & Maintenance Display Assistance & Alerts
• LCD

Vanguard™ Rotary Screw Compressor Oil

• Full Synthetic Oil Exclusively Created for Rotary Screw Compressors
• Flash Point: 257 °C/495 °F
• Pour Point: -45 °C /-50 °F
• Outstanding Thermal and Oxidative Stability
• Reduced Oil Disposal Due to Extended Drain Intervals

Safety Equipment

• High-Temperature Shutdown
• High-Pressure Shutdown
• Air Pressure-Relief Safety Valve
• Minimum Pressure Valve
• Automatic Blowdown on Shutdown
• Oil Fill Plug Safety Relief

UltraLife® 6000 Hour Air/Oil Separator Element

• Innovative design offers the lowest cost of ownership in the industry
• Six times more life than the nearest competitor’s spin-on coalescer element
• 15 times more life than an underhood design means the coalescer will last longer than the life cycle of your vehicle
• Assured anti-static grounding system
• This feature alone can save upwards of $2000.00 per truck in routine maintenance costs, over a 10-year period

FailSafe® Dual Sensory Redundancy System

Patented

• Provides backup in case critical sensors fail
• Virtually eliminates downtime for increased uptime
• Seamlessly switches to back-up sensors without any interruption of the system’s operation
• Standard on XERO® air/oil separator tanks– optional, remote mount waterproof NEMA box

• External, spin-on air-oil separating element
• Dual pressure
• Service/control line moisture separators
• Air hoses, hose reels, and fittings
• OSHA safety valve (velocity fuse)
• Tool oiler/lubricator
• Post drivers
• Biodegradable Vanguard™ Green synthetic oil
• Dual Pressure Option 100/150 PSI
• Cold Weather Kit For Air Compressor – Single Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
• Cold Weather Kit For Air Compressor – Dual Pressure – (Consists of Thermal Valve & Heating Blankets for Tank & Regulator)
• Air Aftercooler without Moisture Separator 125/200 CFM
• Air Aftercooler with Moisture Separator 125/200 CFM

• Service Airline De-Icer
• Filter Lubricator Regulator (FLR) 1”
• Hose Reel – for 3/4” Hose – 50’; Hose not included
• Hose Reels: Vanair carries many different models (Call for configuration)
• Moisture Separator (Service line)
• OSHA Valve 132-148 CFM (Excess flow safety valve)
• OSHA Valve 180-200 CFM (Excess flow safety valve) 3/4”
• Tool Lubricator
• ThermalGuard® Weather Protection Kit
• Optical Oil Level Sensor

US Patented
