The Air N Arc® 150 provides you with five forms of power in one compact and economic unit, allowing you to save space and weight on your vehicle. Providing up to 190 AMPs of welding power, the Air N Arc® 150 is available in three configurations to meet your mounting needs.
Air N Arc® 150 ALL-IN-ONE Power System®
Five Forms of Power for Light to Medium Industrial RepairAir Compressor | Generator | Welder | Optional Battery Charger & Battery Booster
| Engine: | Kohler® 14 HP, Kohler® 19 HP, or Vanair® VNR680 20 HP |
| Compressor Type: | Reciprocating |
| CFM Rating: | 20 CFM |
| Max Pressure: | 150 PSI |
| Generator: | 5 kW Peak, 4.2 kW Continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets |
| Welder: 14 HP Stand-alone: | CC: 40-190 AMPs Operating Range |
| Welder: 19 HP with Remote Panel: | CC: 40-150 AMPs, CV: 15-30V |
| Welder: 20 HP with Remote Panel: | CC: 40-150 AMPs, CV: 15-30V |
| Battery Charger/Booster (Standard for Kohler® 19 HP & Vanair® VR680 20 HP Engine Only): | 150 AMPs 12V/24V Boost, 50 AMP 12V Charge |
| Drive System: | Belt Driven |
| Fuel Capacity: Kohler®14HP | 1.9 Gal. or 4.5 Gal. |
| Fuel Capacity: Kohler®19HP & Vanair® VNR680 20 HP | 11.5 Gal. or Plumb to Chassis |
Kohler® 14 HP
Platform dimensions for 10 Gallon with fittings (In.) – 51.5L x 21.0W x 31.2H*

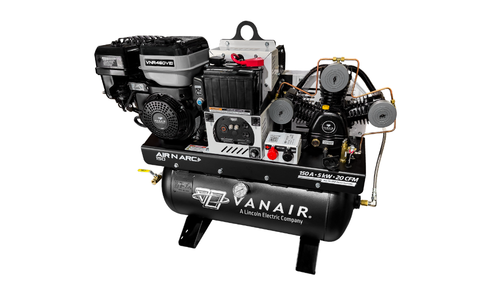

Platform dimensions for 30 Gallon with fittings (In.) – 50.7L x 19.2W x 40.8H*

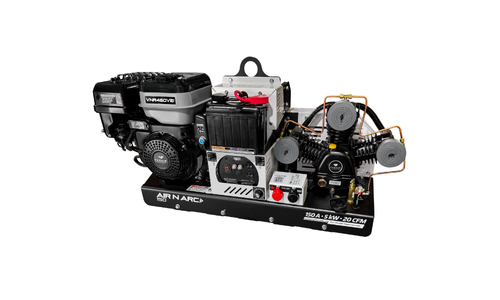

Platform dimensions for Skid Mount with fittings (In.) – 50.3L x 18.2W x 24.2H*
Kohler® 19 HP
Platform dimensions for 30 Gallon with fittings (In.) – 48.2L x 22.2W x 40.8H*
Platform dimensions for Skid Mount with fittings (In.) – 48.1L x 22.4W x 24.2H*

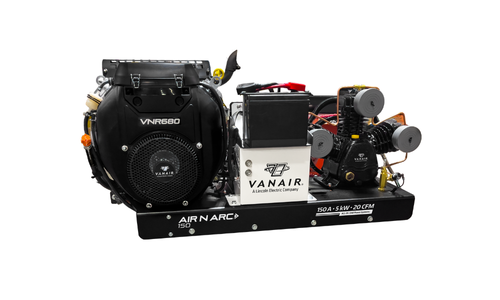

Vanair® VNR680
Platform dimensions for 30 Gallon with fittings (In.) – 47.8L x 22.8W x 41.8H*
Platform dimensions for Skid Mount with fittings (In.) – 47.8L x 21.3W x 25.3H*
Dry Weight (Lbs.): 290-487 (Depending on Machinne)
*Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.
PERFORMANCE/FEATURES
- Fuel System can be Integrated with the Chassis (Kohler® HP 19 & Vanair® VNR680 20 HP Only)
- Powder Coated Sheet Metal for Protection
- 100% Duty High Frequency Welder Offering Excellent Weld Characteristics
- Galvannealed Steel Metal
- Heavy Duty Belt Driven System for Anti-Vibration and Long Service Intervals
AIR COMPRESSOR
- Reciprocating Compressor
- Cast Iron Air Pump with Three Cylinder Head Design for Better Cooling
- Factory Set @ 130 PSI (Adjustable to 150 PSI)
WELDER
- Patented Amperage and Power Controls Built Into Welding Lead for Ease of Use for 14 HP Units
- 100% Variable Completely Controllable.
- Independent Welding Generator
- CV on Remote Panel Machines
- Safe Multi-Function
- Auto Throttle Control
GENERATOR
- True Two Generator System for Safe Multi-Functioning of Welder and Electric Tools
- Brushless Design (AC)
- Smooth Wave for Minimal Distortion
- Two 120V Outlets and One 240V Outlet Provided
ENGINE
- Kohler® 14 HP, Kohler® 19 HP, or Vanair®
VNR680 20 HP - Electric start
AVAILABLE FUEL CAPACITY
- 1.9 Gallons (Kohler® 14 HP)
- 11.5 Gallons on Models with 30 Gallon Air Storage (Kohler® HP 19 & Vanair® VNR680 20 HP Only)
- Tied to Chassis
BATTERY BOOST/CHARGE (OPTIONAL)
- 150 AMP 12/24V Boost (Standard on Remote Panel)
- 50 AMP 12V Charge (Standard on Remote Panel)
REMOTE CONTROL PANEL (OPTIONAL)
- Optional on Kohler® 19 & Vanair® VNR680 20 HP Systems Only (Harness Not Included)
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Panel
Available Air Reservoirs:
- 10 Gallon (14 HP), 30 Gallon, and Skid Mount
- Remote Panel Harness – 10’, 14’, 18’
- Remote Mount Control Panel (Kohler® 19 HP & Vanair® VNR680 20 HP Only)
- Cable Extension – 8’, 12’, 16’, 20’, 24′
- Battery Booster Cables
- Fuel Tank – Slim Line 11 Gallon (Kohler® HP 19 & Vanair® VNR680 20 HP Only)
- Remote Air Tank Options
- Remote Condensation Drain
- Welding Helmet with Auto Darkening Lens
- Dry Cell Battery
- GFCI Outlet for Protection of 120V/240V (Remote Panel Machines Only)
- Filter/Lubricator/Regulator (FLR)
- Hose Reels and Fittings
- OSHA Safety Valve (Velocity Fuse)
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
- Cold Weather Kits
- Maintenance Kits
- Hose Reels
| Part Description | Part Number |
|---|---|
| Cold Weather Kit 12V, (Includes Comp. Oil & Eng. Oil Pan Heater*) | 032793 |
| Cold Weather Kit 120V AC, Contractor (Includes Comp. Oil & Eng. Oil Pan Heater*) * Installed at time of machine build. Note 12V kit utilizes chassis battery. | 032927 |
| Compressor Service Kit- Initial 20 Hour, 100 Hour, or Annual | KIT1156 |
| Engine Service Kit, Kohler® 14 HP (Includes: 1 Quart Kohler® Motor Oil, Fuel Filter, Air Filter, Pre-Air Filter & Spark Plug) | KIT1158 |
| Engine Service Kit, Kohler® 19 HP (Includes: 2 Quart Kohler® Motor Oil, Inline Fuel Filter, Air Filter, Pre-Air Filter, & Oil Filter) | KIT1157 |
| Vanguard™ Reciprocating Compressor Oil (One Gal.) | 271856-1Gal. |
| Vanguard™ Reciprocating Compressor Oil (One Quart) | 271856-1QT |
| Engine Service Kit, Vanair® VNR680 | 1504 |
