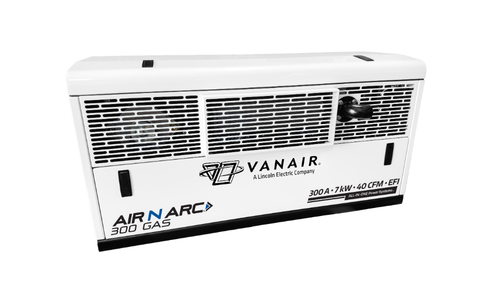

While keeping full functionality of five power sources in one unit and the capability of multi-functioning, the Air N Arc® 300 Compact ALL-IN-ONE Power System® was designed to be mounted under a box type body. Coming in 7.5 inches shorter and up to 100 lbs. lighter than the standard Air N Arc® 300 with fuel tank, the new compact unit provides the flexibility and space-saving capability to mount the unit outside the body of the vehicle while still maintaining ground clearance.
| Engine: | Diesel: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant) Gas: 26.5 HP Kohler®, Air Cooled |
| Air Compressor: | Rotary Screw, 150 PSI, 40 CFM (175 MAX PSI) |
| Generator: | 7 kW Peak – 6.8 kW Continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets |
| Welder: | High Frequency DC welding, 270 AMPS at 100% duty cycle CC: 40-300 AMPs Operating Range, CV: 15-30 Volts |
| Battery Charger/Booster: | 300 AMPs 12V/24V Boost, 50 AMP 12V Charge |
| Drive System: | Belt driven |
| Fuel Capacity: | Plumb to Chassis |
Air N Arc® 300 Compact Diesel Unit Dimensions:
Foot Print (In.): 47.5L x 21.0W x 28.4H
With Fittings (In.): 48.0L x 25.0W x 28.4H
Dry Weight (Lbs.): 775
Air N Arc® 300 Compact Gas Unit Dimensions:
Foot Print (In.): 47.1L x 21.5W x 23.9H
With Fittings (In.): 47.1L x 24.6W x 23.9H
Dry Weight (Lbs.): 650
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
| Part Description | Part Number |
|---|---|
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| KOHLER® ECH749 Every 100 Hour or Annual Engine Maintenance Kit | KIT1119 |
| KOHLER® Air Filter | 262722 |
| KOHLER® Oil Filter | 262723 |
| KOHLER® Precleaner | 263675 |
| KOHLER® Inline Fuel Filter | RC81465 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallon | 032708 |
| Optional Weld Cable Set 25′ | 033020-25 |
| Optional Weld Cabe Set 50′ | 033020-50 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Battery Boost Cables, 2 Gauge With Quick Connect Ends, 25ft | MA269938 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Extensions Segment for Boost Cable, 2 Gauge Cable with Connectors | MA270012-25 |
| Extension Segment for Boost Cable, 2 Gauge Cable with Connectors, 50ft | MA270012-50 |
| Remote Mount Control Panel Connection Harness – 6ft | MA274613-06 |
| Remote Mount Control Panel Connection Harness – 10ft | MA274613-10 |
| Remote Mount Control Panel Connection Harness – 18ft | MA274613-18 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
| Part Description | Part Number |
|---|---|
| KUBOTA™ D902 Every 200 Hour or Annual Engine Maintenance Kit | KIT1154-01 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1153 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1285 |
| KUBOTA™ Inline Fuel Filter | 280724 |
| KUBOTA® Spin-On Fuel Filter | EN273303-01 |
| KUBOTA® Inline Fuel Filter | RC276268 |
| KUBOTA® Fuel Filter Element Only | RC77662 |
| Compressor Air Filter Element Only | 264469 |
| Vanair® Spin-On Air/Oil Separator | 264470 |
| Vanair® Compressor Oil Filter | 264471 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| Vanair® Compressor/Engine Air Filter Element Only | 276688-002 |
| KUBOTA® Oil Filter | EN38480 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallon | 032708 |
| Optional Weld Cable Set 25′ | 033020-25 |
| Optional Weld Cabe Set 50′ | 033020-50 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Remote Mount Control Panel Connection Harness – 6ft | MA269937-06 |
| Remote Mount Control Panel Connection Harness – 10ft | MA269937-10 |
| Remote Mount Control Panel Connection Harness – 18ft | MA269937-18 |
| Remote Mount Control Panel Connection Harness – 22ft | MA269937-22 |
| Remote Mount Control Panel Connection Harness – 26ft | MA269937-26 |
| Battery Boost Cables, 2 Gauge With Quick Connect Ends, 25ft | MA269938 |
| Battery Boost Quick Disconnect | MA269944 |
| Battery Cable Extension, 2 Gauge, 8ft | MA269945-08 |
| Battery Cable Extension, 2 Gauge, 12ft | MA269945-12 |
| Battery Cable Extension, 2 Gauge, 16ft | MA269945-16 |
| Battery Cable Extension, 2 Gauge, 20ft | MA269945-20 |
| Battery Cable Extension, 2 Gauge, 24ft | MA269945-24 |
| Extensions Segment for Boost Cable, 2 Gauge Cable with Connectors | MA270012-25 |
| Extension Segment for Boost Cable, 2 Gauge Cable with Connectors, 50ft | MA270012-50 |
| Fuel Tank Assembly, Diesel, Slimline 11 Gallon, Fuel Gauge Sender | OA032930 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
