EPEQ® Inverters

Fixed Installation, 48V, AC Power Inverters

EPEQ® inverters deliver 48V AC Power and include three Pure Sine Wave inverters to fit any need. The high frequency EPEQ® INVERTER3000 provides 120VAC and the INVERTER5000 provides 240VAC. Both inverters communicate with the EPEQ® System Smart Display for simple, efficient use, and installation. The uniqueness of the EPEQ® 5kW inverter is that it is stackable to achieve 10kW, 240VAC power. The low frequency EPEQ® INVERTER6000 provides 120/240VAC power with 300% surge output.



EPEQ® INVERTER PERFORMANCE AND SPECIFICATIONS

  • Clean, Quiet Operation; Ideal for Vans, Trailers, or Any Enclosed Space
  • Designed for Easy Maintenance and Monitoring
  • Communicates with The EPEQ® Smart Display and Powered by the ELiMENT® Battery and EPEQ® BMS for Superior Performance
Get a Quote

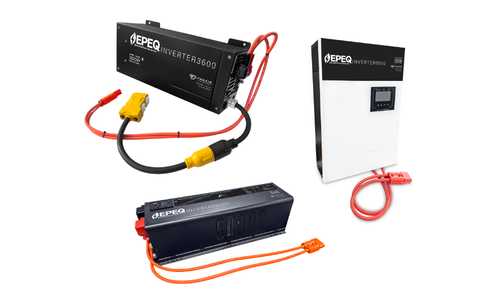

EPEQ® AC Power Inverters

Product Specifications

EPEQ® INVERTER3000 SPECIFICATIONS

Watts3000
Input Voltage48VDC High-Frequency Topology
Output Voltage120VAC Pure Sine Wave
Weight10 lbs.
Dimensions18” L x 5” W x 10” H

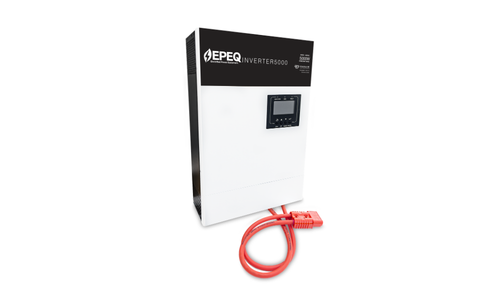

EPEQ® INVERTER5000 SPECIFICATIONS

Watts5000
Input Voltage48VDC High-Frequency Topology
Output Voltage240VAC Pure Sine Wave
Weight25 lbs.
Dimensions13” L x 5” W x 20” H

FEATURES
• Stackable to Achieve 10kW, 240VAC Power
• 60Hz (Default) Output Frequency

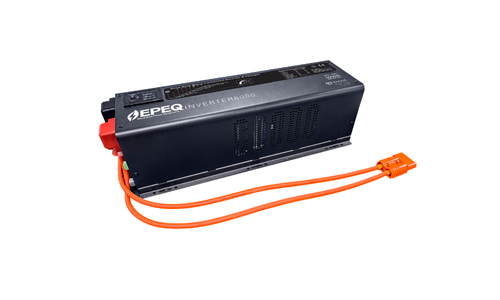

EPEQ® INVERTER6000 SPECIFICATIONS

Watts6000
Input Voltage48VDC Nominal Voltage
Output Voltage120/240VAC Pure Sine Wave
Weight70.4 lbs.
Dimensions23.5” L x 8.5” W x 7” H

FEATURES
• 300% Surge Output
• Protections: Overload, Short Circuit, Over-Temperature, Under and Over Voltage

Machine Numbers

  • 6240001 — EPEQ® INVERTER3000 – High Frequency Inverter, 120VAC Output
  • 6240002 — EPEQ® INVERTER5000 – High Frequency Inverter, 240VAC Output
  • 6240000 — EPEQ® INVERTER6000 – Low Frequency Inverter, 120/240VAC Output
