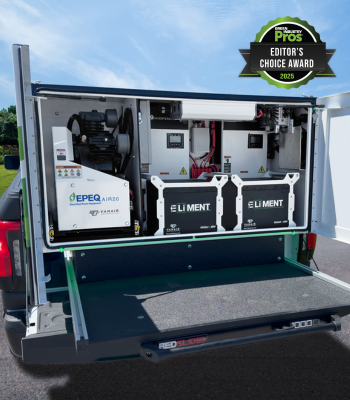

EPEQ® Mobile Support Box

Introducing the EPEQ® Mobile Support Box – Your Path to Electrification – Simplified!

Rethink your hard-to-electrify mobile power products with the all-new EPEQ® Mobile Support Box – from the leader in Mobile Power Solutions®! The Mobile Support Box combines some of the best parts of the entire EPEQ® ecosystem in a pre-built, simple to install, and entirely self-contained package!



Technical Performance:

  • ELiMENT® LiFePO4 Battery and BMS System: This battery is your foundation for sustained energy. Rely on its cutting-edge technology for consistent and dependable power.
  • EPEQ® AIR20 Compressor: 20 CFM of air power, reaching an impressive 150 PSI.
  • EPEQ® Level 2 EV Charging: EV charging on the go!
  • EPEQ® Shore Power 120VAC: Enjoy the flexibility of shore power, ensuring your devices stay energized no matter the setting.
  • EPEQ® Inverter Power: An incredible 3kW of 120VAC clean power, and massive 10kW of 240VAC power! Pure Sine Wave energy to power your electronic devices.
  • EPEQ® Smart Display: This proprietary designed software allows you to intelligently monitor and control all EPEQ® components at your fingertips.
GET A QUOTE
EPEQ® Mobile Support Box

Product Specifications

Package Specifications

  • Air Storage Capacity: 8 Gallons
  • Instrumentation: 7” Smart Display, Air Pressure Gauge
  • Charging Method: 120VAC Shore Power Charger
  • Dimensions: 60” L x 24” W x 30” H
  • Aluminum Box: Slide for EPEQ® AIR20, 120VAC Outlet, 240VAC Outlet, Shore Charger Plug
  • Package Weight: 575 lbs.

(1) EPEQ® AIR20

  • Motor: PMAC
  • Compressor Type: Reciprocating
  • Two Speed; 10 CFM and 20 CFM
  • 150 PSI Maximum
  • Drive System: Dual V-Belt
  • Low Speed Run Time: 120 Minutes
  • High Speed Run Time: 60 Minutes
  • Size: 19” L x 14” W x 24” H
  • Weight: 90 lbs.

(2) ELiMENT® Batteries

  • Capacity: 100 Ah
  • Voltage: 48
  • Cycles: 5,000
  • Material: Lithium Iron Phosphate
  • Protections: Over-Current, Short-Circuit, Over-Charge, Over-Discharge, Over-Temperature, and Under-Temperature
  • EPEQ® Battery Management System
  • Size: 13.38” L x 12.5“ W x 11.8“ H with Handles
  • Weight: 107 lbs.

(1) EPEQ® Level 2 EV Charger

  • Charge Current: 40A (26A, 32A, 40A)
  • Power Output: 9.6kW Max
  • Charge Plug; J1772
  • Charge Cable: 25’
  • Weight: 10 lbs.

(1) EPEQ® Shore Power Charger

  • 120VAC
  • Size: 11” L x 4” W x 8” H
  • Weight: 10 lbs.

(1) EPEQ® INVERTER3000

  • Watts: 3000
  • Input Voltage: 48VDC
  • High-Frequency Topology
  • Output: 120VAC Pure Sine Wave
  • Size: 18” L x 5” W x 10” H
  • Weight: 10 Lbs.

(2) EPEQ® INVERTER5000

  • Watts: 5,000
  • Input Voltage: 48VDC
  • High-Frequency Topology
  • Output: 240VAC Pure Sine Wave
  • Weight: 25 Lbs.

(1) EPEQ® Smart Display

  • LED Display with Anti-Glare Coating
  • IP67 Rated
  • Reads and Reports:
    – State of Charge
    – Charge / Discharge Rates and Cycles
    – Cell Voltage Levels
    – Battery Temperature
  • Faults and Warnings:
    – Over-Charge and Over-Discharge
    – Over-Temperature and Under-Temperature

Features That Reshape Mobile Service Capabilities

  • Big Power, Small Package: Designed to tackle the biggest mobile support needs in a small package. An entire mobile service package in a box designed to fit in a pickup truck or van!



  • No Integration: Just place it in the desired space and you are ready to go to work. Easily rechargeable via a standard 110V outlet.



  • Zero Emissions, Minimal Noise: With no fuel in sight and noise levels kept to a minimum, you’re not just powering up, but also embracing a greener, quieter world.
