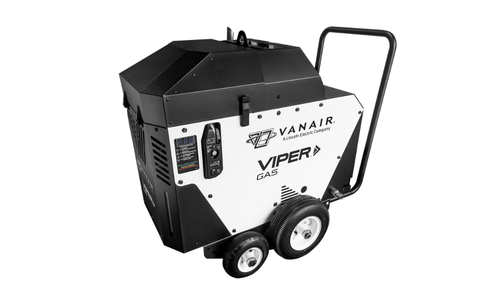

The Viper™ Gas Rotary Screw Air Compressor allows you to get in and out of the job site fast. Featuring a larger fuel tank to provide six and a half hours of runtime at 70% duty cycle gets you through multiple projects, without having to halt production to refuel. A smaller footprint saves valuable trailer or truck bed space for more tools. Low idle RPMs reduce noise, providing a quieter experience for you to work in. As if that wasn’t enough, sensors automatically unload the compressor during startup, and the auto start-stop turns on with air demand. The Viper™ Gas Rotary Screw Air Compressor’s heavy-duty 80 CFM and 100 PSI air pressure make this unit the ideal choice to operate: 90 Lb. jackhammers, 4” piercing tools, pavement breaking, monument engraving, irrigation services, post-pounding, directional boring, and more.
Viper™ Gas Rotary Screw Air Compressor
| Model | Capacity (CFM) | Air (PSI) | Engine (RPM) | Engine (HP) | Fuel Capacity |
|---|---|---|---|---|---|
| G60 | 60 | 150 | 3600 | Honda® 25 | 10 Gallon |
| G70 | 70 | 125 | 3600 | Honda® 25 | 10 Gallon |
| G80 | 80 | 100 | 3600 | Honda® 25 | 10 Gallon |
Compressor Dimensions (In.) – 39L x 21W x 30H
Compressor Dimensions with fittings (In.) – 40L x 25W x 32H
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Dry Weight (Lbs.) – 440Lbs.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
- GV3H-B60 — Viper™ G60, 60 CFM @ 150 PSI, 24.9 EFI Gas
- GV3H-B60W — Viper™ G60, 60 CFM @ 150 PSI, 24.9 EFI Gas with Wheel Cart
- GV3H-B60C — Viper™ G60, 60 CFM @ 150PSI, 24.9 EFI Gas with Cold Weather Kit
- GV3H-B60R — Viper™ G60, 60 CFM @ 150 PSI, 24.9 EFI Gas with Remote Key
- GV3H-B60CR — Viper™ G60, 60 CFM @ 150 PSI, 24.9 EFI Gas with Cold Weather Kit and Remote Key
- GV3H-B70 — Viper™ G70, 70 CFM @ 125 PSI, 24.9 EFI Gas
- GV3H-B70W — Viper™ G70, 70 CFM @ 125 PSI, 24.9 EFI Gas with Wheel Cart
- GV3H-B70C — Viper™ G70, 70 CFM @ 125 PSI, 24.9 EFI Gas with Cold Weather
- GV3H-B70R — Viper™ G70, 70 CFM @ 125 PSI, 24.9 EFI Gas with Remote Key
- GV3H-B70CR — Viper™ G70, 70 CFM @ 125 PSI, 24.9 EFI Gas with Cold Weather and Remote Key
- GV3H-B80 — Viper™ G80, 80 CFM @ 100 PSI, 24.9 EFI Gas
- GV3H-B80W — Viper™ G80, 80 CFM @ 100 PSI, 24.9 EFI Gas with Wheel Cart
- GV3H-B80C — Viper™ G80, 80 CFM @ 100 PSI, 24.9 EFI Gas with Cold Weather
- GV3H-B80R — Viper™ G80, 80 CFM @ 100 PSI, 24.9 EFI Gas with Remote Key
- GV3H-B80CR — Viper™ G80, 80 CFM @ 100 PSI, 24.9 EFI Gas with Cold Weather and Remote Key
*Power for cold weather kit must be from external power source.
AIR COMPRESSOR
- Lifetime Warranty
- Rotary Screw
- Vanair® Encapsulated Air End
- Belt-Driven
ENGINE
- Honda® iGX800 EFI, 25 HP
- Gasoline
- 4-Cycle, V-Twin, Overhead Valve
- 10 Gal. Fuel Tank
INSTRUMENTATION
- Temperature Indicator
- Engine Diagnostic Lamp
- Hour Meter
- Digital Pressure Display
CANOPY
-
Powder-Coated Galvanneal Sheet Metal
-
Lifting Bail
MAINTENANCE
-
Easy Service Access
-
Removable Front Panel and Hinged Top for Serviceability
SAFETY EQUIPMENT
- Air Pressure-Relief Safety Valve
- Minimum Pressure Valve
- Automatic Blowdown on Shutdown
- Low Engine Oil Pressure Shutdown
- High Compressor Temperature and Pressure Shutdown
- Remote Start/Stop
- Remote Dual Pressure
- Cold Weather Package
- Service/Control Line Moisture Separators
- Filter/Lubricator/Regulator (FLR)
- Tool Oiler/Lubricator
- Air Hoses, Hose Reels, and Fittings
- OSHA Safety Valve (Velocity Fuse)
- CARB Canister
- Maintenance Kits
- Wheel Cart
- Load Space Air Baffle
| Part Description | Part Number |
|---|---|
| KOHLER® ECH749 Every 100 Hour or Annual Engine Maintenance Kit | KIT1119 |
| Initial 50 Hour Compressor Maintenance Kit | KIT1212 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1221 |
| HONDA® IGX700/IGX800 Initial 20 Hour, 100 Hour, or Every 6 Months Engine Maintenance Kit | KIT1482 |
| Every 500 Hour or Annual Compressor Maintenance Kit | KIT1483 |
| KOHLER® Air Filter | 262722 |
| KOHLER® Oil Filter | 262723 |
| 1 Gallon of Vanguard™ Premium Rotary Screw Compressor Oil | 264626-1GAL |
| KOHLER® Precleaner | 263675 |
| Vanair® Compressor Oil Filter | 266801 |
| 80 CFM Compressor Air Filter Element Only | 265546-004 |
| Vanair® Spin-On Air/Oil Separator | 273080 |
| Air Intake Filter Element Only | 281414-01 |
| HONDA® Fuel Filter | 281452-01 |
| HONDA® Air Precleaner | 281452-02 |
| HONDA® Air Filter Element Only | 281452-03 |
| HONDA® Oil Filter | 281452-26 |
| KOHLER® Inline Fuel Filter | RC81465 |
| Air Reservoir Tank – 28 Gallons | 032707 |
| Air Reservoir Tank – 14 Gallon | 032708 |
| Filter Lubricator Regulator (FLR) 1/2” | 264493 |
| Moisture Separator | 265243 |
| Vibration Isolator Kit – 1/2” | KIT1202-001 |
| Air Reservoir Tank – 30 Gallons | OA49645 |
